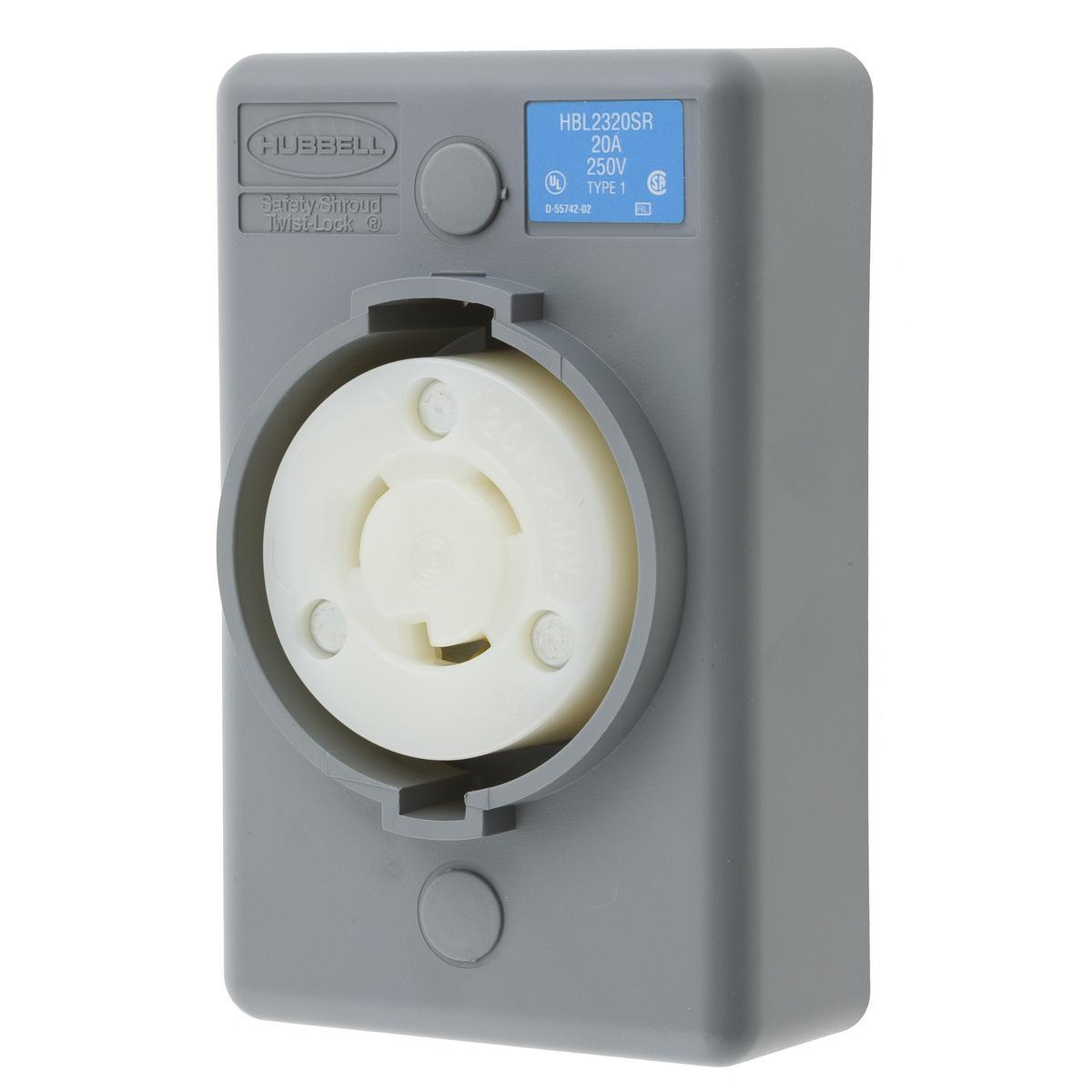

Wiring Device-Kellems HBL2320SR 1-Phase Grounding Heavy Duty Single Surface Mount Locking Receptacle

Product Description

The Wiring Device-Kellems HBL2320SR is a twist-lock safety-shroud locking receptacle designed for reliable performance in demanding electrical environments. This product is rated for 250 VAC and 20 A, suited for heavy-duty applications.

• 1-Phase Grounding configuration
• Compatible with L6-20R NEMA Rating
• Thermoplastic construction for durability

Product Highlights

The HBL2320SR features a rugged design that withstands harsh conditions. It is ideal for industrial applications requiring reliable and safe electrical connections.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 1-Phase Grounding Heavy Duty Single Surface Mount
• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Horsepower: 2 hp
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: L6-20R
• Material: Thermoplastic
• Enclosure: NEMA 4/4X/12/IP20
• Dimensions: 4.56 x 2.84 x 1.58 in
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
