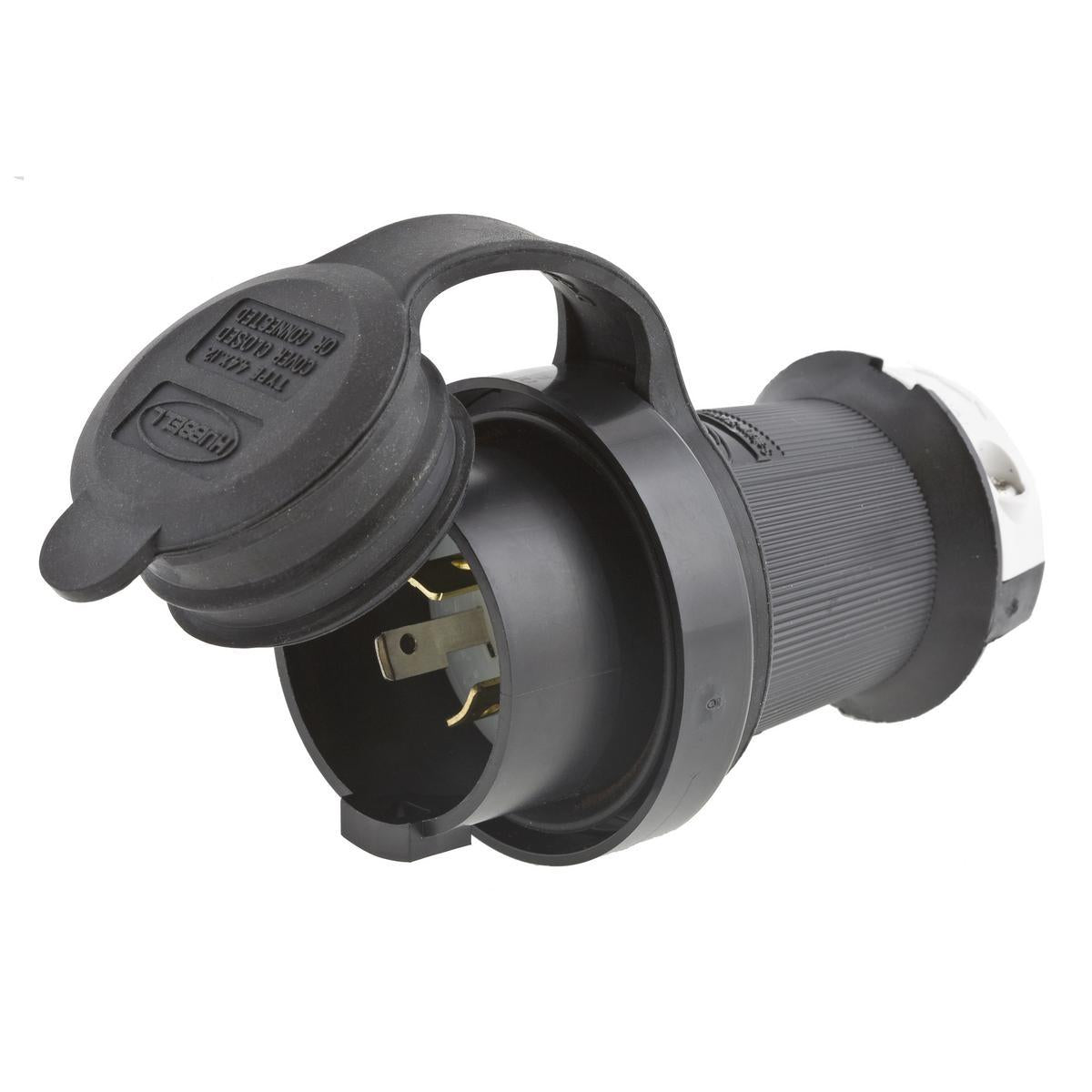

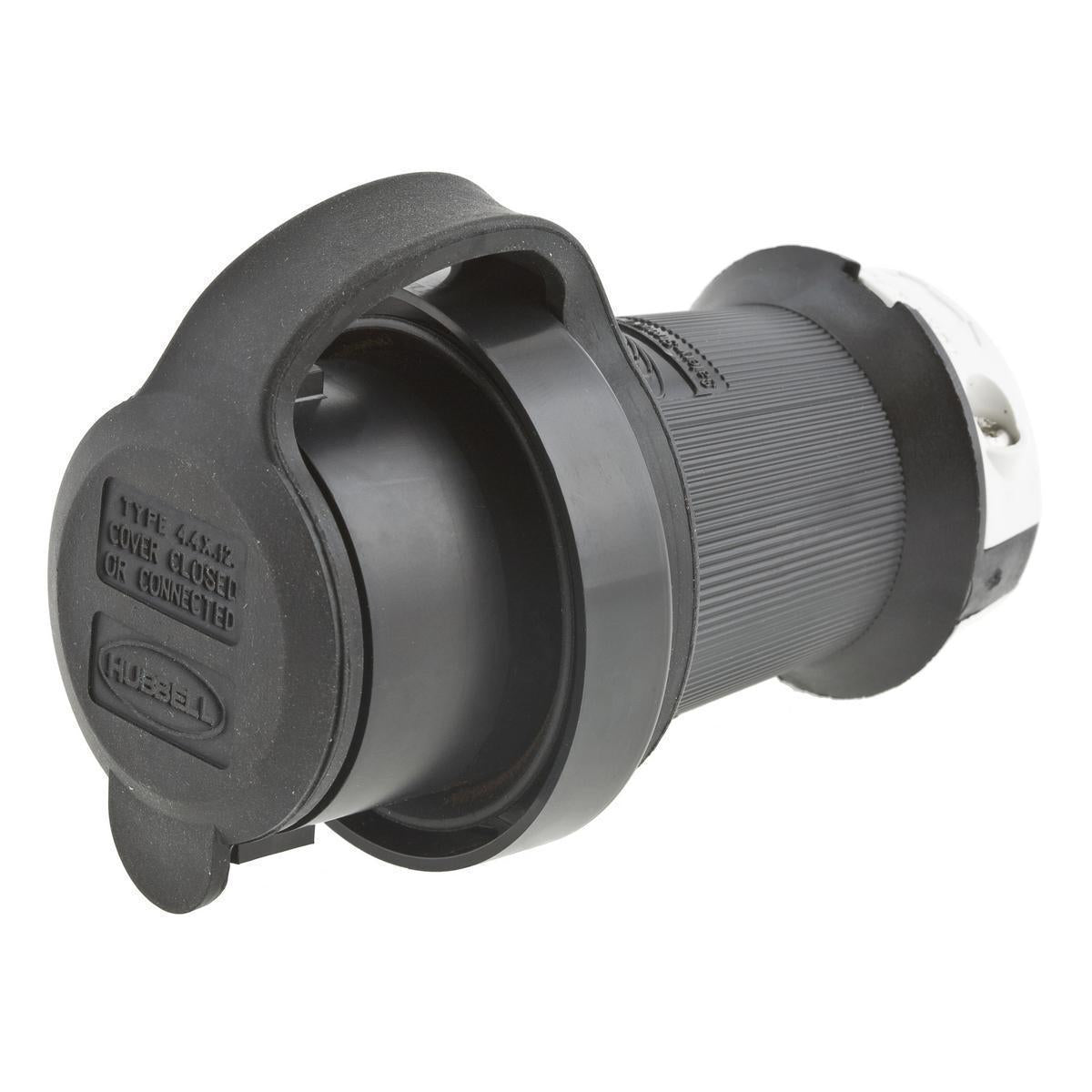

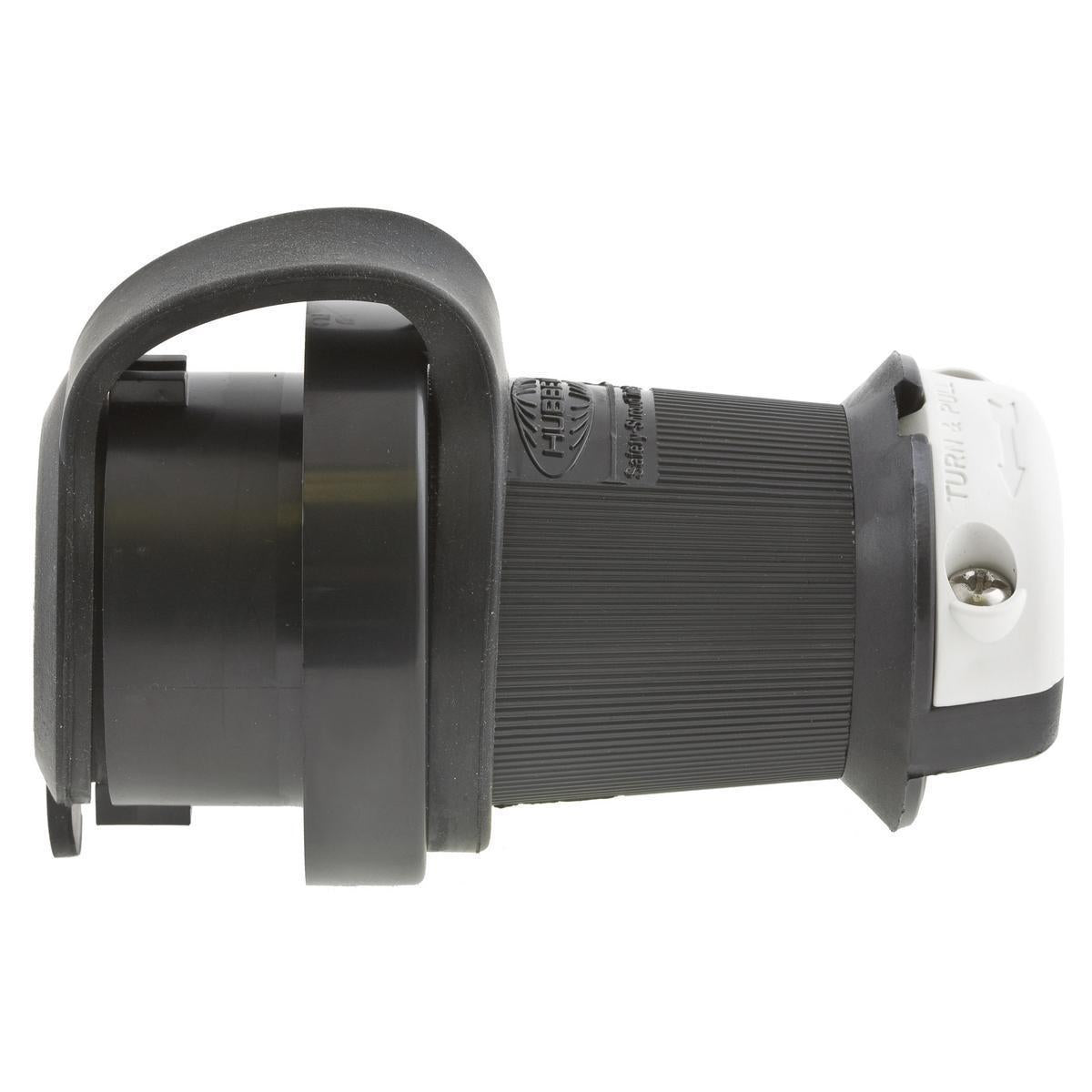

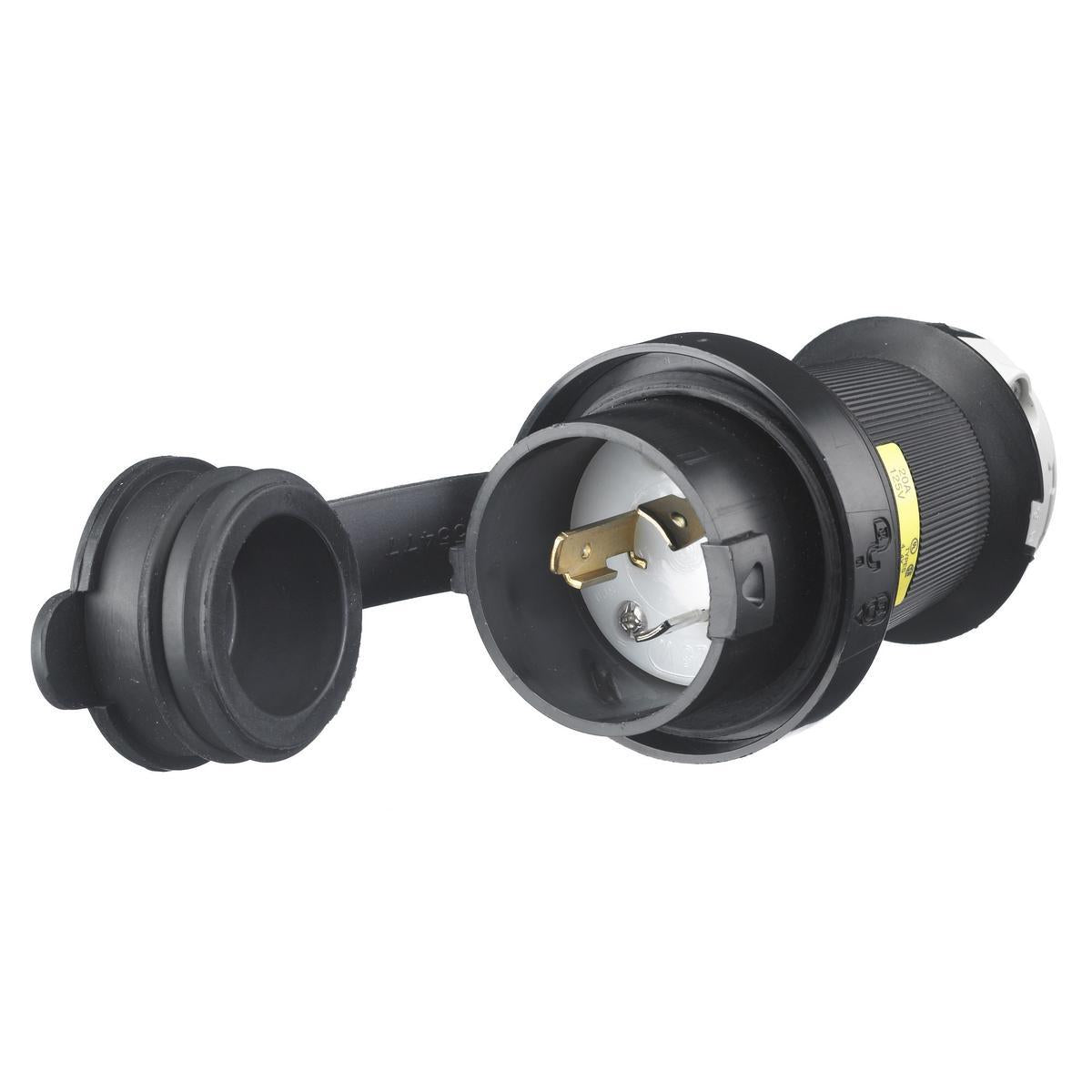

Wiring Device-Kellems HBL2311SW 125 VAC Locking Plug

Product Description

The Wiring Device-Kellems HBL2311SW is a locking plug designed for 1-phase grounding and watertight applications. It is rated for 125 VAC and 20 A, making it suitable for various industrial settings. The plug features a durable NEMA 4/4X/12/IP66 enclosure, ensuring protection against dust and water ingress. Its design accommodates a cord diameter between 0.36 to 0.93 inches and is compatible with 12 AWG wire.

• Industrial grade with NEMA L5-20P rating
• Temperature rating from minus forty to seventy-five degrees Celsius
• Screw terminal for secure connections

Product Highlights

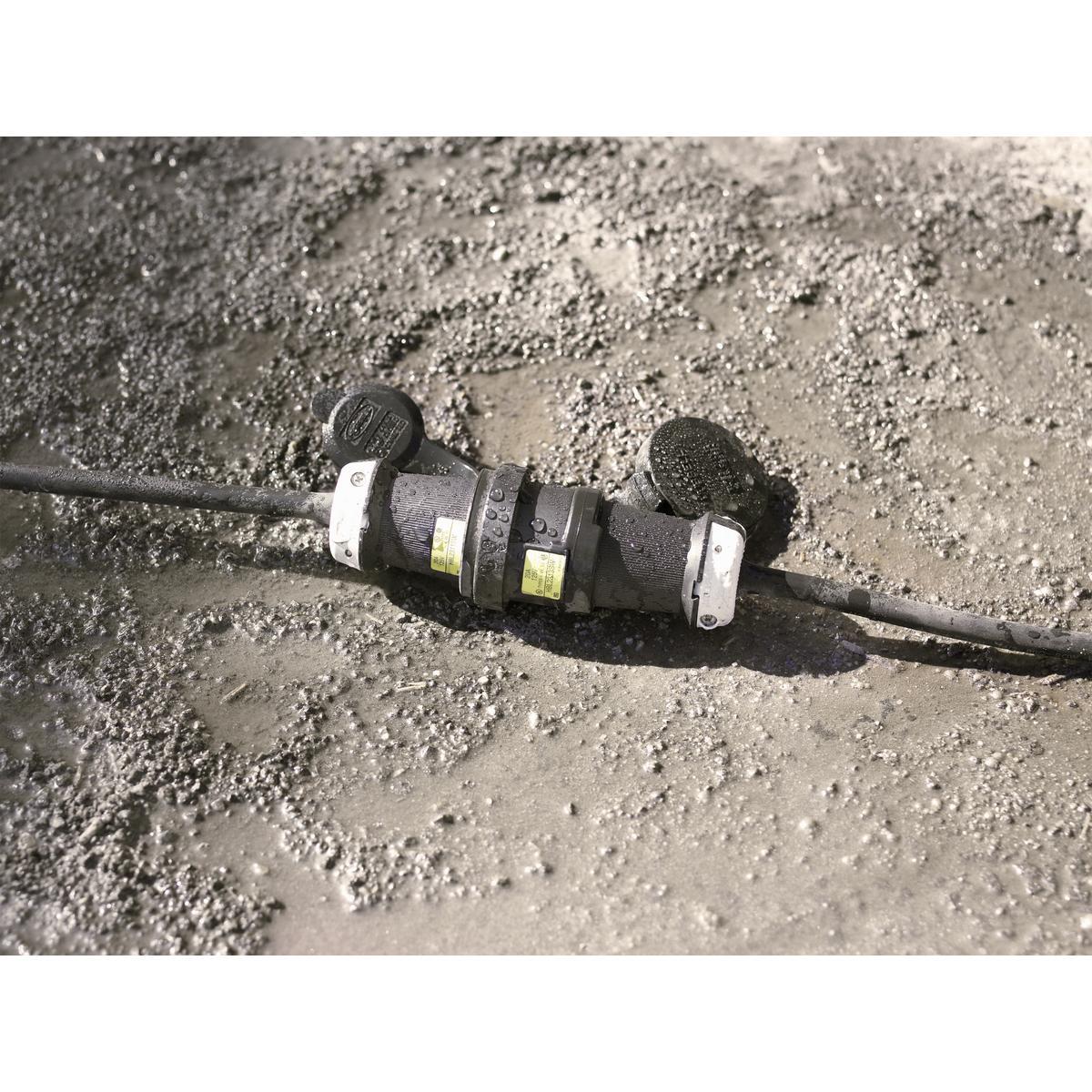

This locking plug is ideal for heavy-duty use in outdoor and indoor settings. The impact-resistant shroud enhances durability and minimizes damage to blades.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• MPN: HBL2311SW
• Type: 1-Phase Grounding Watertight Cord Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• Number of Poles: 2
• Number of Wires: 3
• Cord Diameter: 0.36 to 0.93 in
• Color: Black/White
• Material: Composite
• Enclosure: NEMA 4/4X/12/IP66
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
