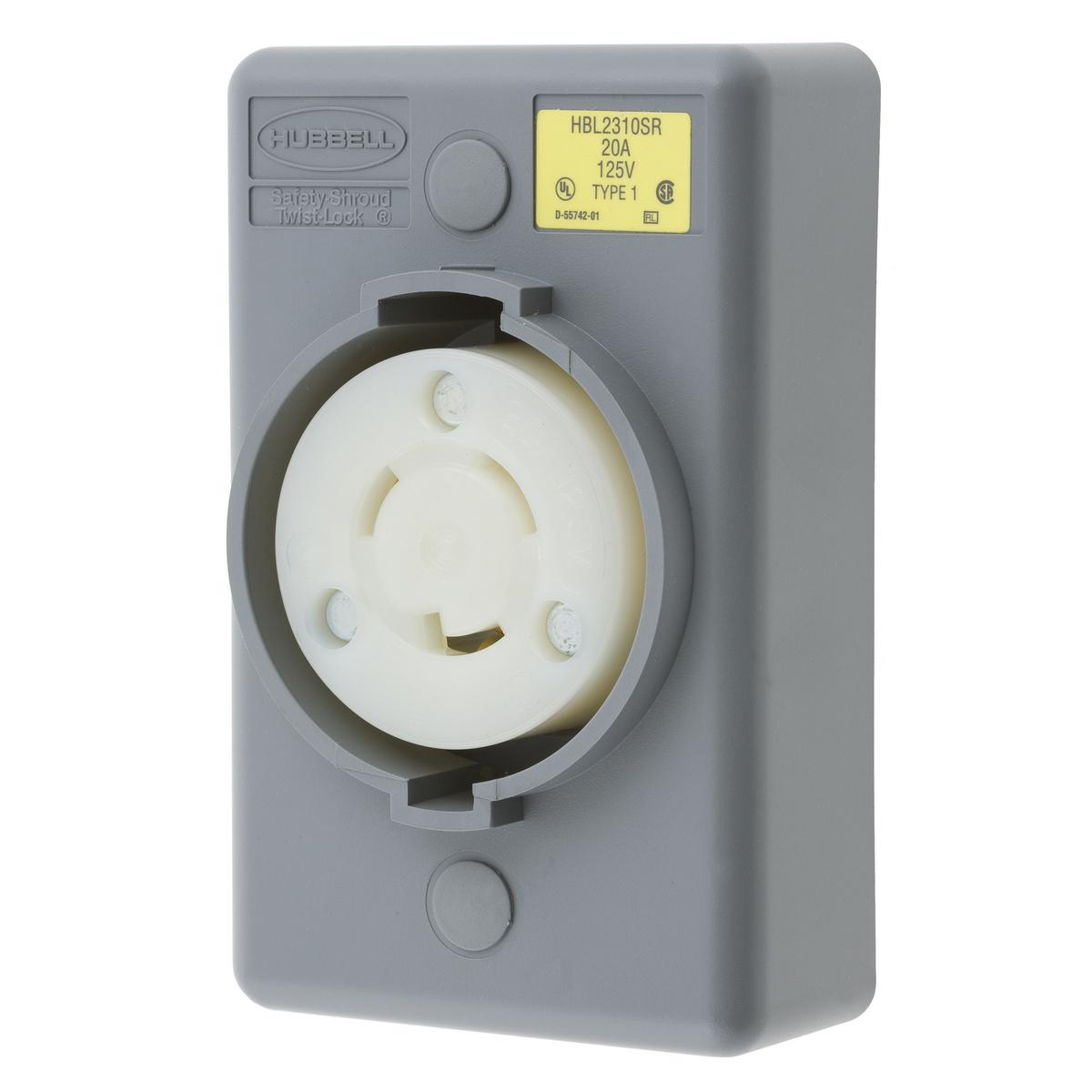

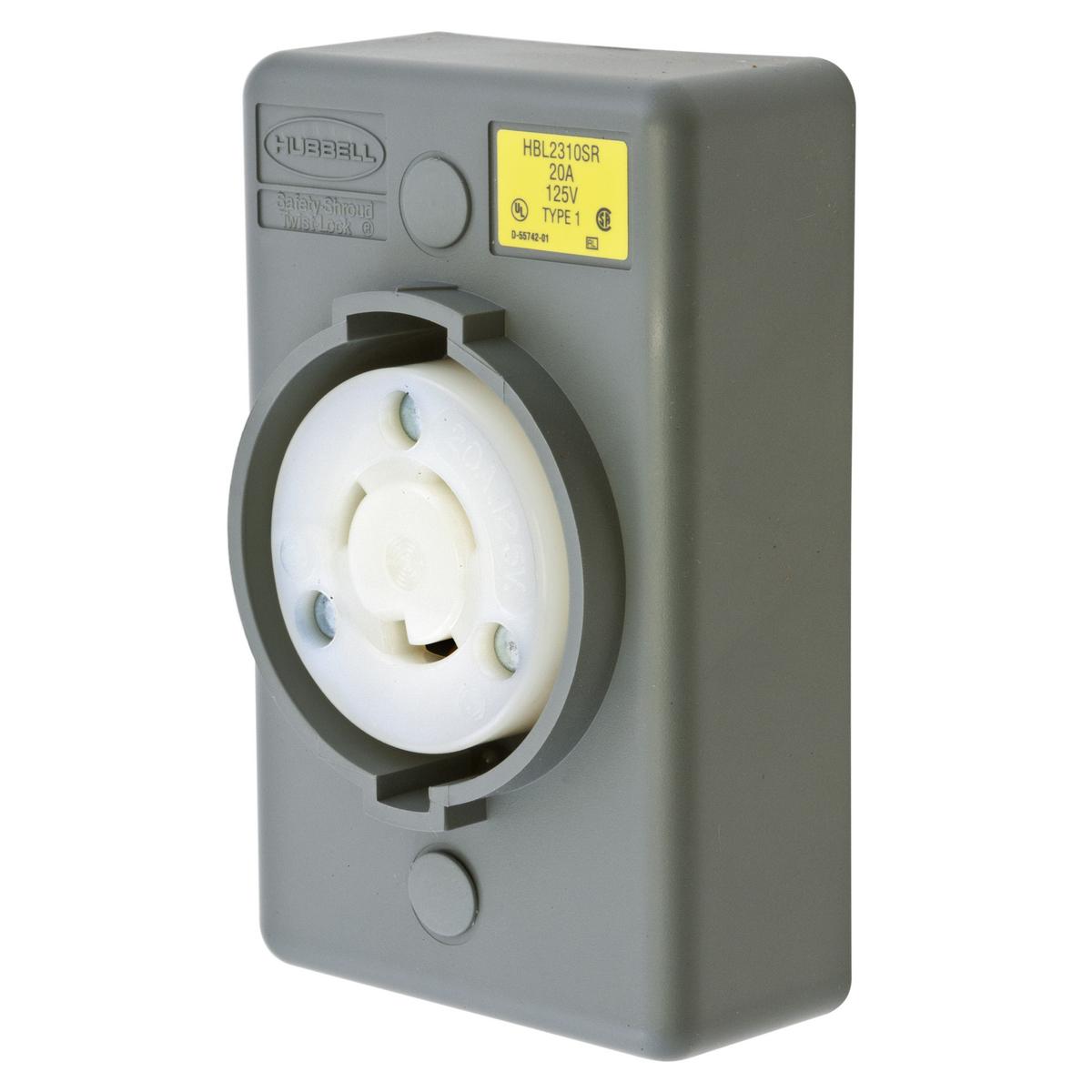

Wiring Device-Kellems HBL2310SR Grounding Heavy Duty Surface Mount Locking Receptacle

Product Description

The Wiring Device-Kellems HBL2310SR is a heavy-duty locking receptacle designed for industrial applications. It operates on a 125 VAC, 20 A, and supports a single phase grounding configuration. This receptacle is equipped with 2 poles and 3 wires, featuring a NEMA L5-20R rating. It is suitable for surface mounting and can endure operating temperatures ranging from -40 to 75 degrees Celsius.

• Heavy-duty single surface mount design
• Accepts Hubbell shrouded and standard NEMA locking plugs
• Temperature rated for -40 to 75 degrees Celsius

Product Highlights

This receptacle is ideal for use in harsh environments, making it suitable for industrial settings. It features screw mounting and accepts wire sizes ranging from fourteen to eight AWG. The robust construction ensures durability and reliability in operation.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• Material: Valox
• Color: Gray/White
• Enclosure: NEMA 4/4X/12/IP20

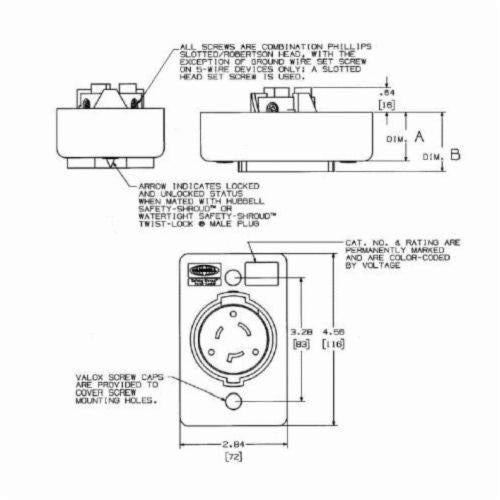

• Dimensions: 4.56 x 2.84 x 1.58 inches
• NEMA Rating: L5-20R
• Terminal Type: Screw
• Series: HBL®
• Type: 1-Phase Grounding Heavy Duty Single Surface Mount
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 degrees Celsius
