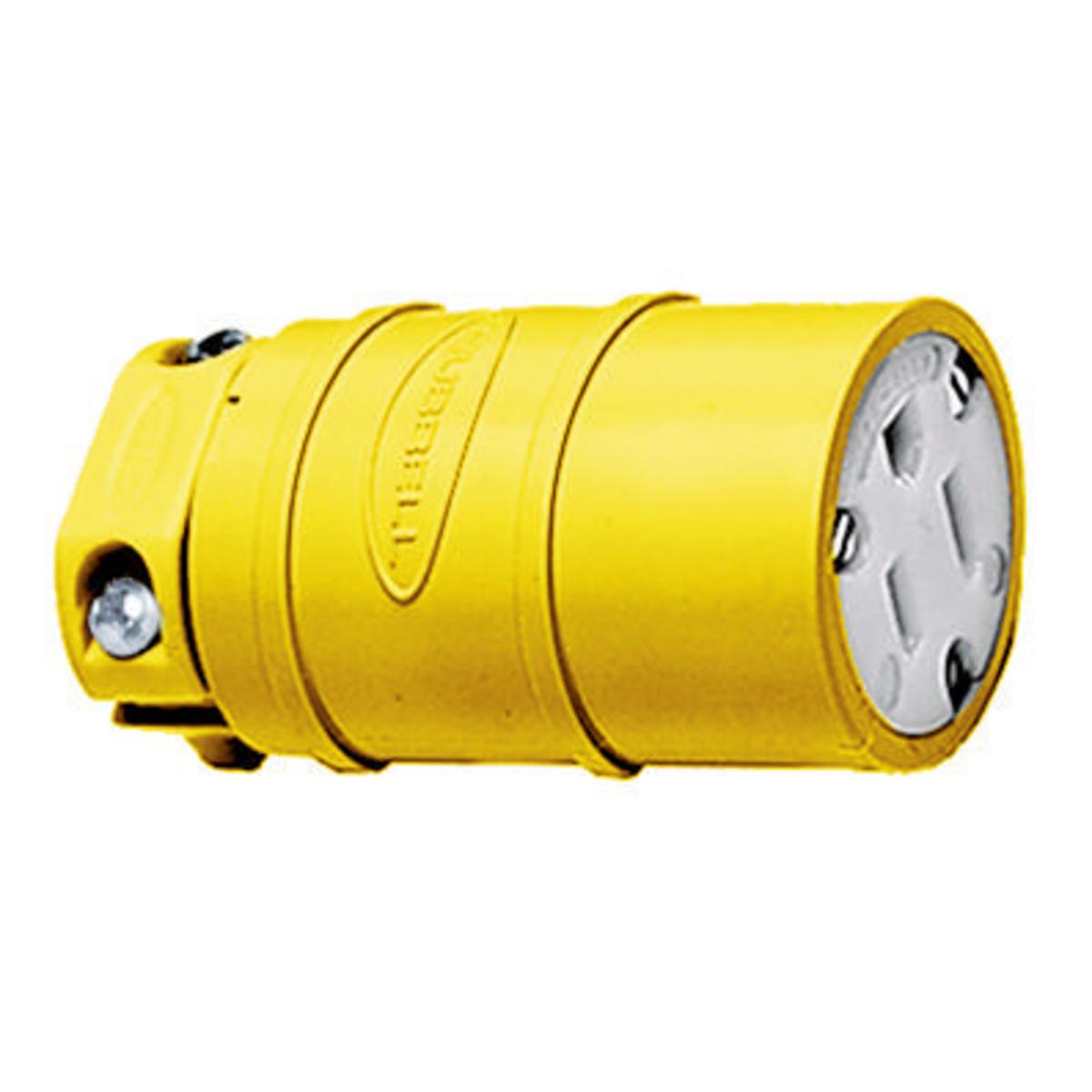

Wiring Device-Kellems HBL1547 125 VAC 15 A Straight Blade Connector

Product Description

The Wiring Device-Kellems HBL1547 is a durable straight blade connector designed for various applications. This product from Hubbell features a dusttight female grounding standard cord mount. It operates at 125 VAC and has an amperage rating of 15 A. The connector has two poles and three wires, making it suitable for both residential and commercial use.

• Designed for industrial and commercial use.
• Constructed with a thermoplastic elastomer housing.
• Includes dust and moisture seals for protection.

Product Highlights

The HBL1547 ensures reliable connections in tough environments. It is rated IP55 when used with a suitable closure plug, providing excellent water and dust protection. Its yellow color enhances visibility in work settings.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-15R
• Temperature Rating: -40 to 75 deg C
• Material: Composite
• Enclosure: IP20
• Dimensions: 3 x 1.61 x 3 in
• Type: Dusttight Female Grounding Standard Cord Mount
