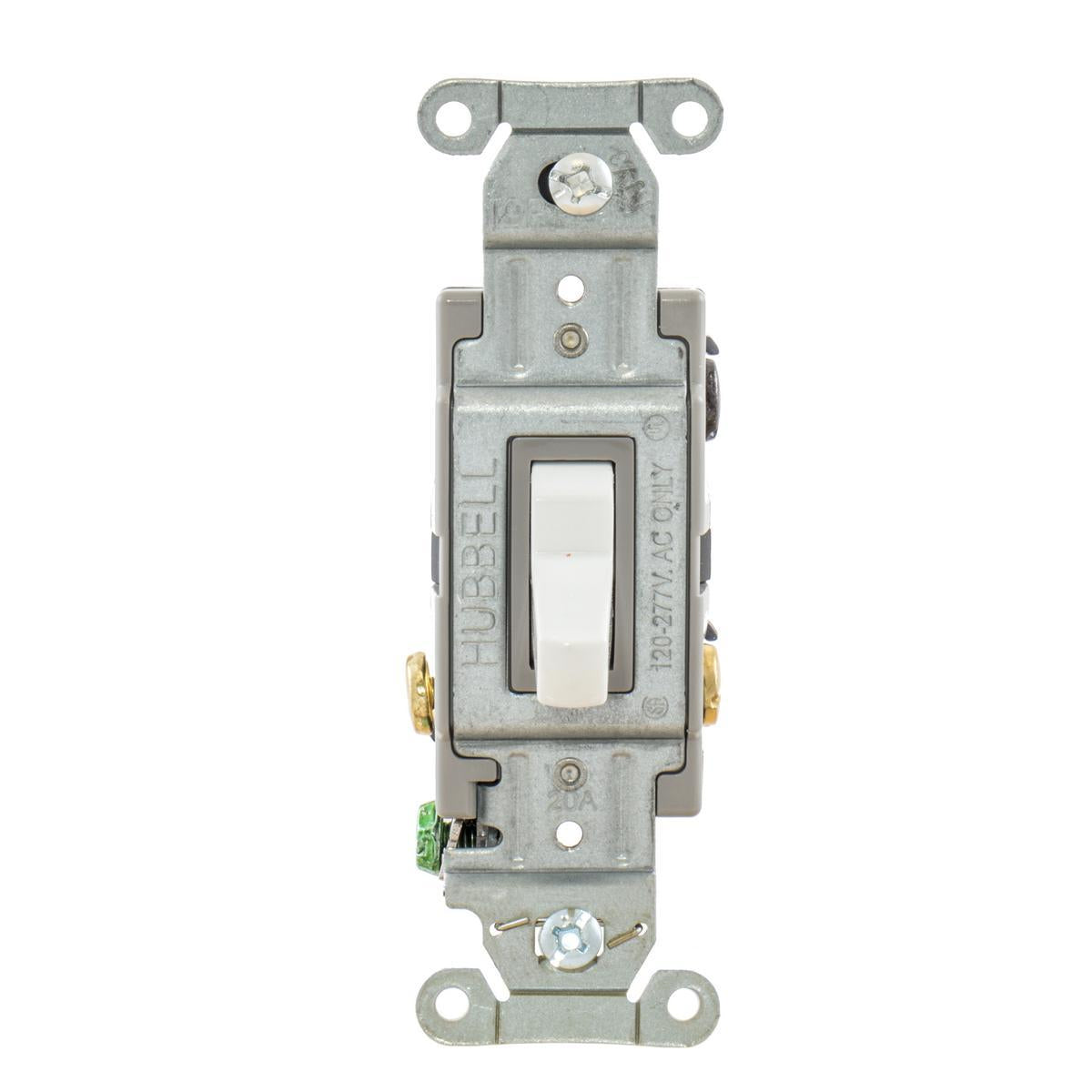

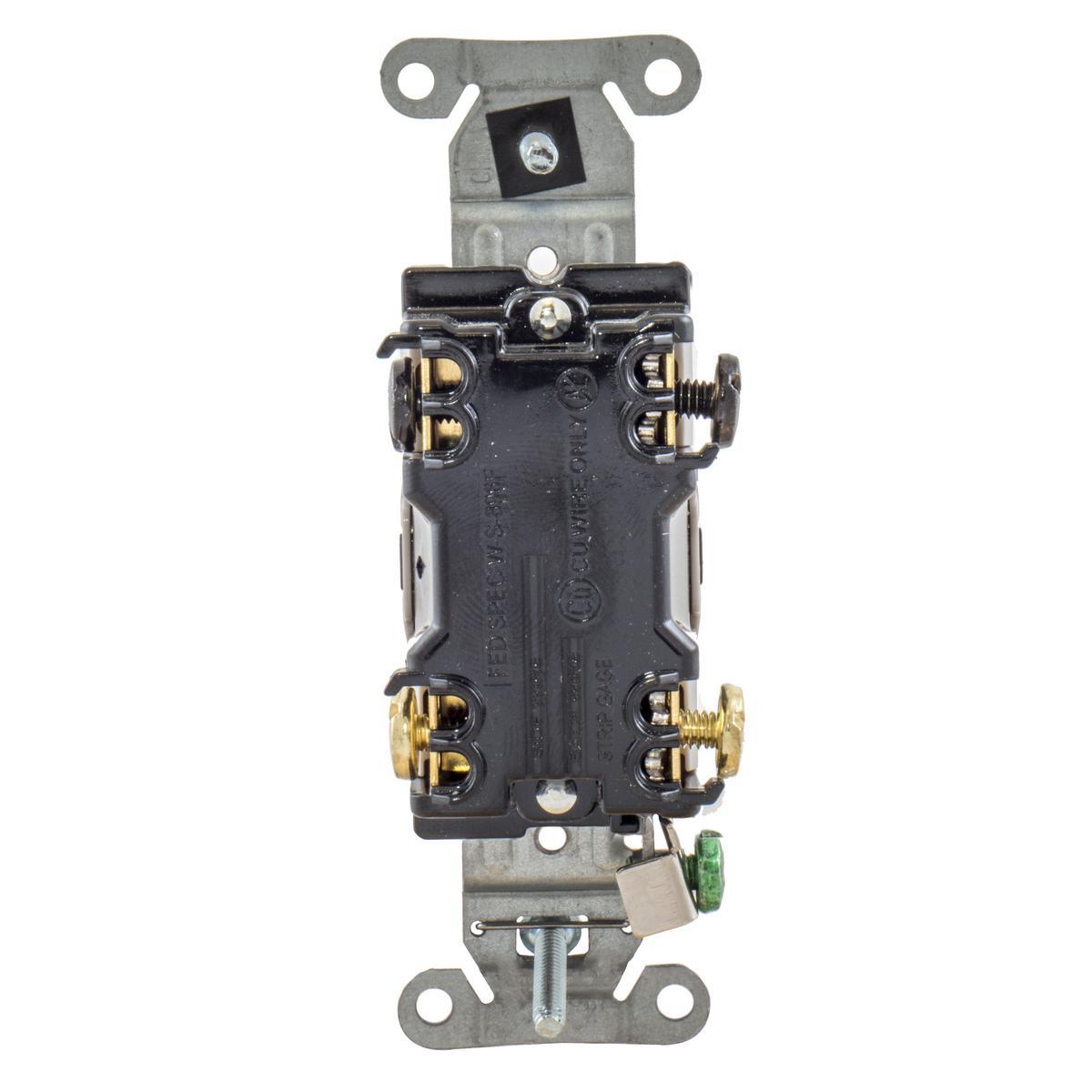

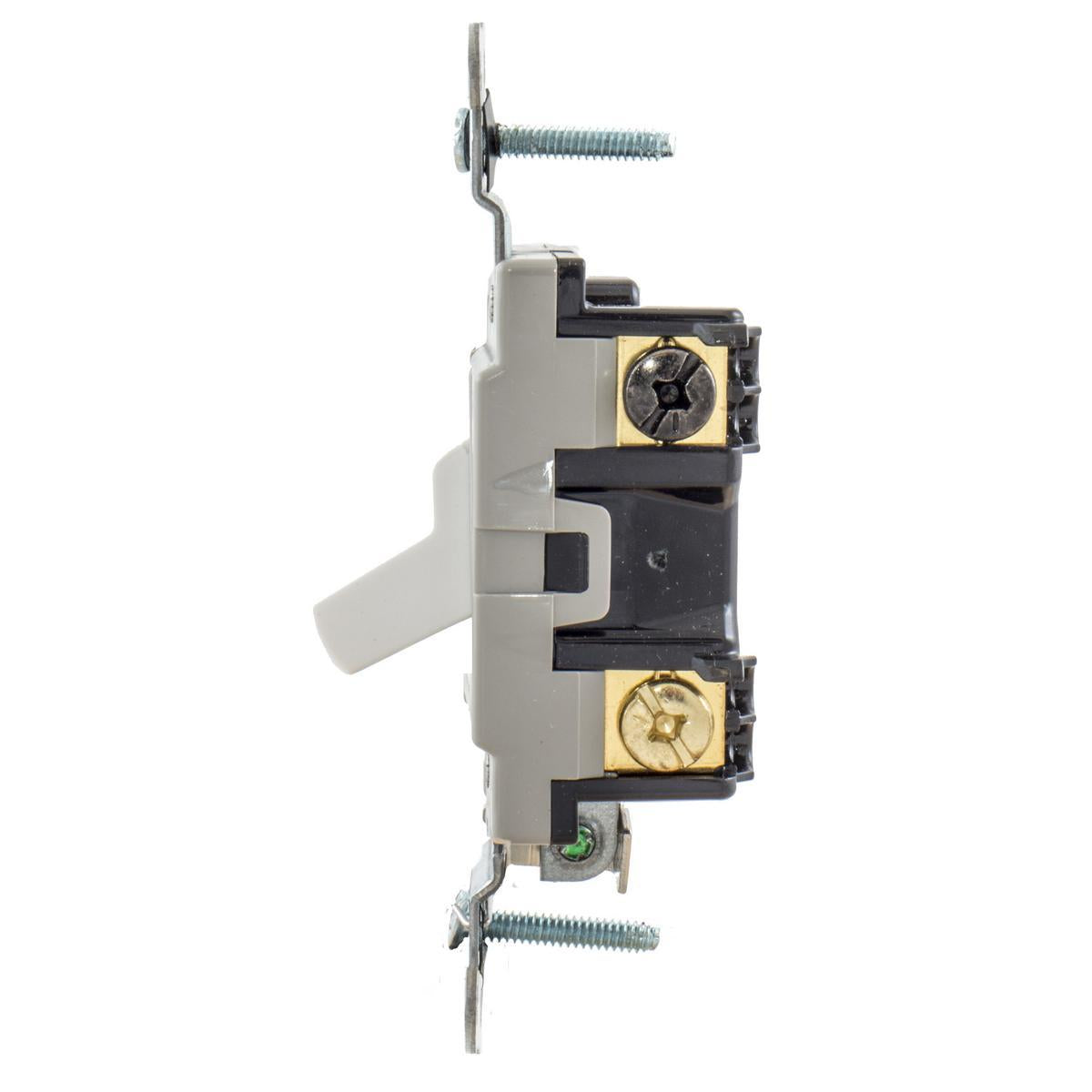

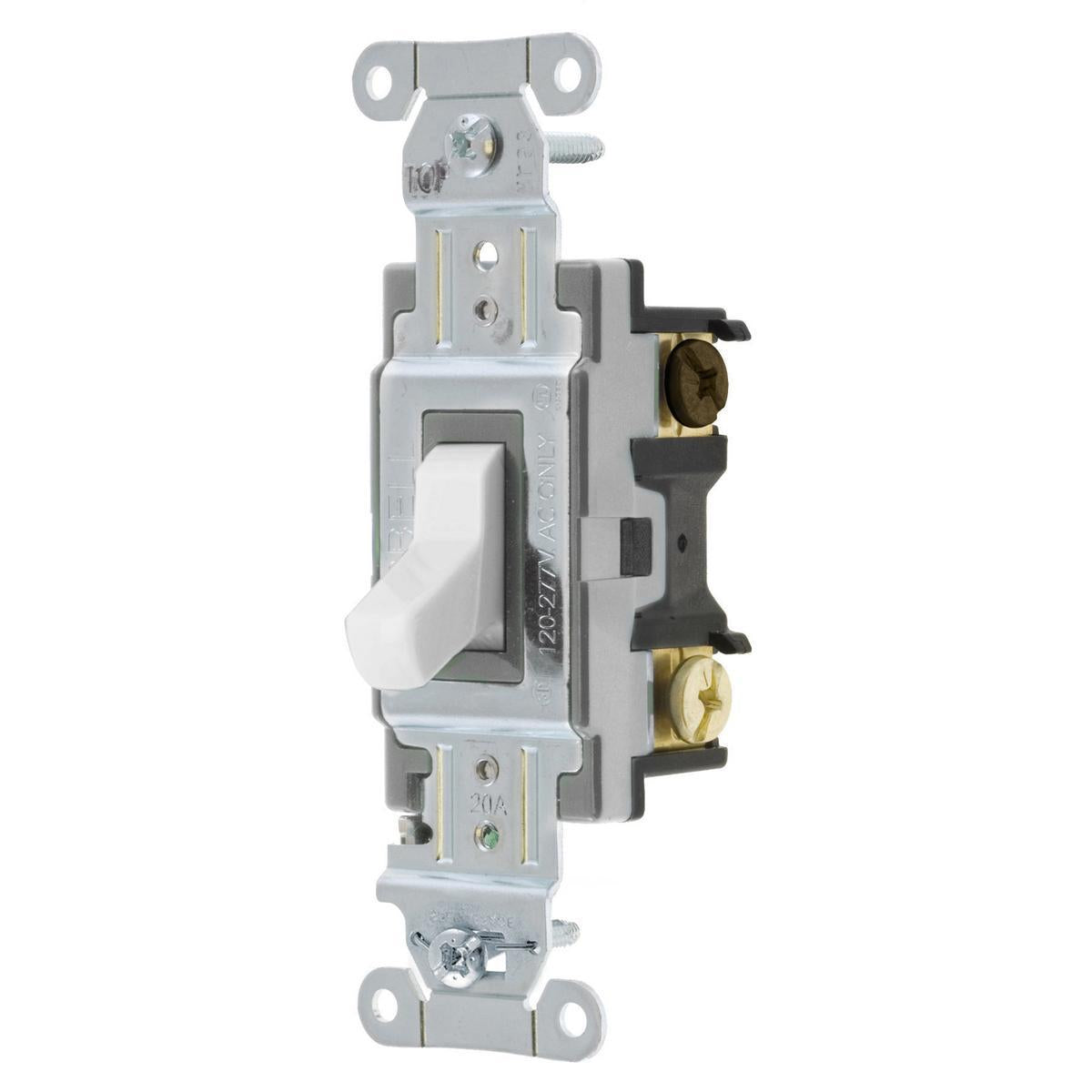

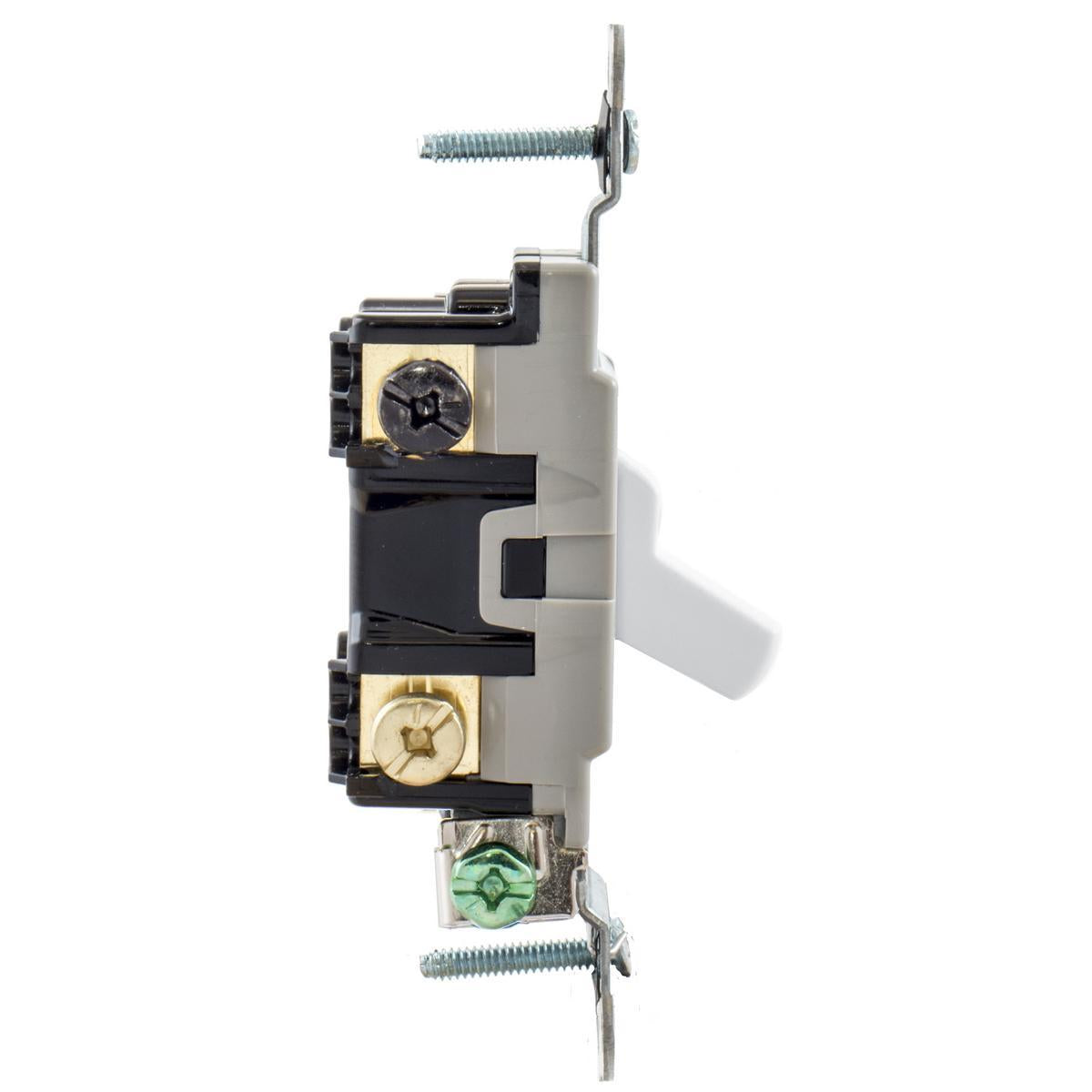

Wiring Device-Kellems CSB420W 4-Way Specification Grade Standard AC Toggle Switch

Product Description

The Wiring Device-Kellems CSB420W is a 4-way AC toggle switch for use in various electrical applications. Designed for easy installation, this switch operates at voltages from one hundred twenty to two hundred seventy-seven VAC and delivers a current rating of twenty amps. The device offers a robust power rating of five thousand five hundred forty watts and features a two-position contact configuration for versatility.

• Utilizes a toggle actuator for easy operation.
• Constructed from durable nylon material.
• Rated for use in environmental conditions from negative forty to seventy-five degrees Celsius.

Product Highlights

This switch is ideal for residential and commercial electrical systems, providing reliability and long-term performance.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Actuator: Toggle
• Color: White
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Enclosure: NEMA WD-1
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Nylon
• Mounting: Threaded
• Number of Poles: 2
• Operating Cycles: 50000 cycles
• Terminal Type: Back/Side Wire
• Type: 4-Way Specification Grade Standard
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2-Position
