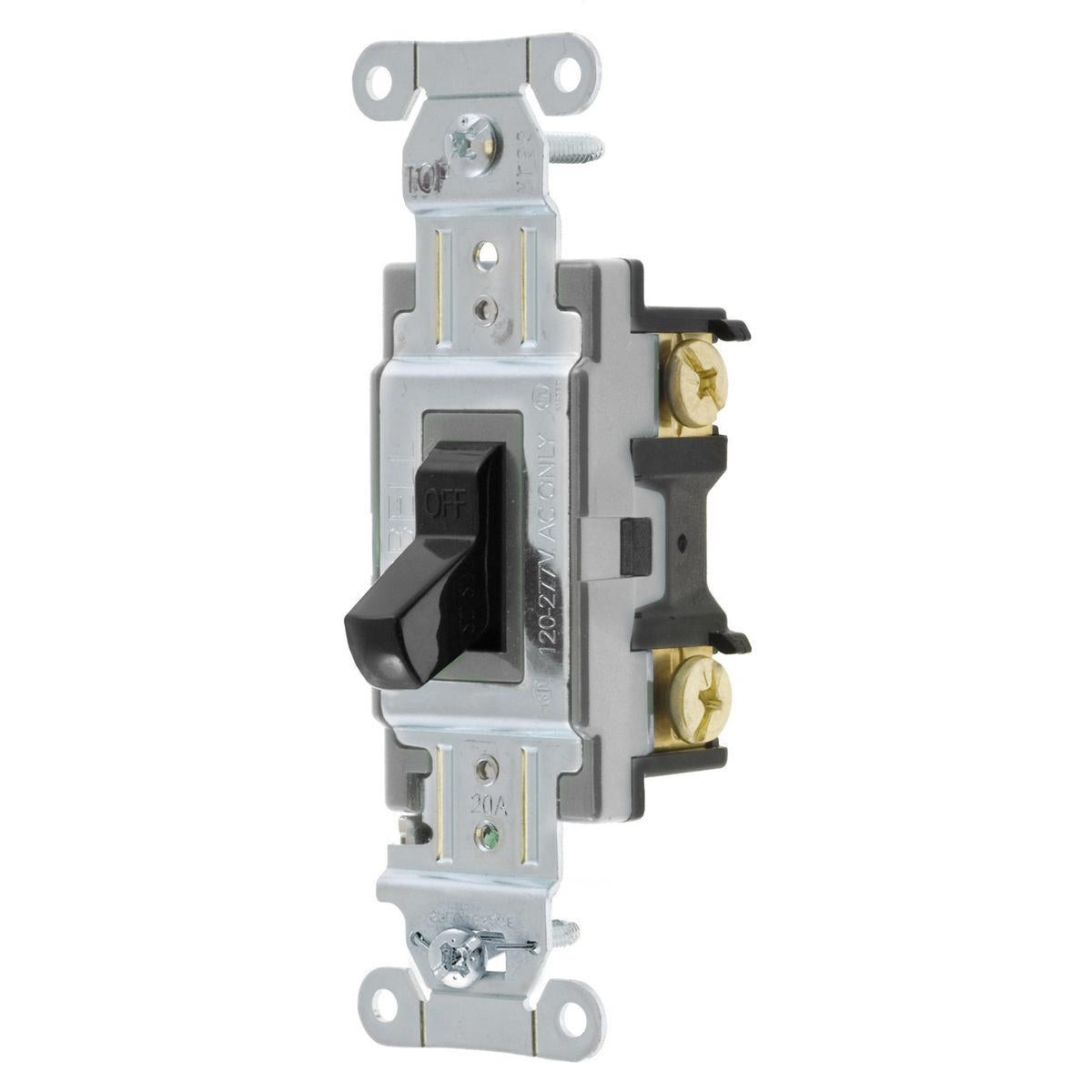

Wiring Device-Kellems CSB120BK Toggle Switch 120 to 277 VAC 20 A

Product Description

The Wiring Device-Kellems CSB120BK is a toggle switch designed for efficient operation within a voltage range of 120 to 277 VAC. This switch handles a current of up to 20 A and provides a power rating of 5540 W. The product features a 2-position contact configuration and is constructed with durable nylon, making it suitable for various environments.

• Toggle actuator for easy operation
• Threaded mounting for secure installation
• Back/Side wire terminal for flexible wiring options

Product Highlights

This toggle switch is designed for use in demanding applications where reliable switching is essential.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Actuator: Toggle
• Color: Black
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 degrees C
• Material: Nylon
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Terminal Type: Back/Side Wire
• Type: 2-Position Standard
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2-Position
