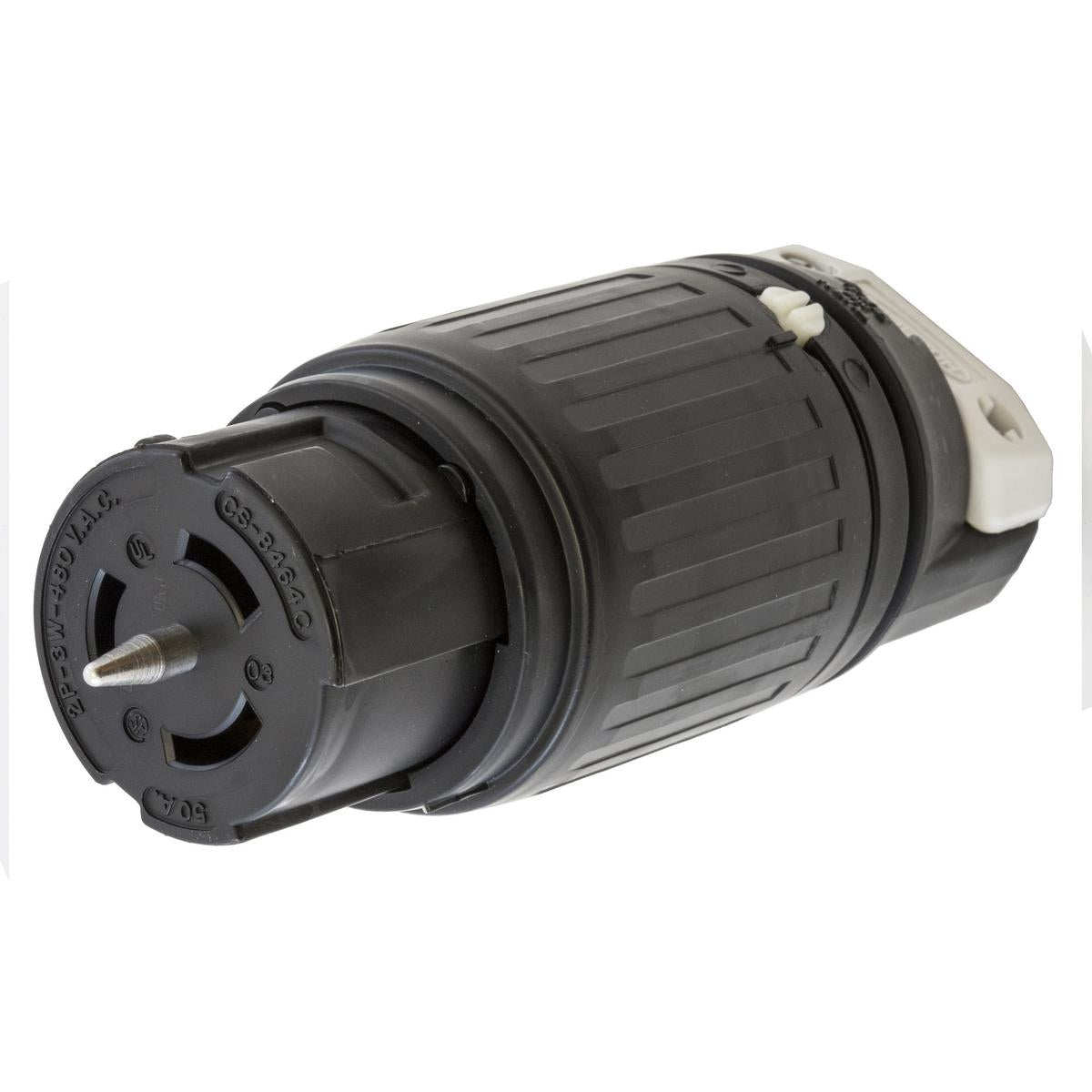

Wiring Device-Kellems CS8464C Grounding Heavy Duty Cord Mount Locking Connector 480 VAC 50 A

Product Description

Wiring Device-Kellems offers the CS8464C Locking Connector, ideal for industrial applications. This grounding heavy duty cord mount locking connector operates at 480 VAC and supports an amperage of fifty. It features two poles and three wires, making it suitable for various installations.

• Industrial-grade construction for durability
• Operational temperature range: -40 to seventy-five degrees Celsius
• Compatible with cord diameters from three-quarters to one and one-eighth inches

Product Highlights

The CS8464C provides reliable performance for demanding environments. It integrates a pressure screw terminal for secure connections and is made from tough nylon, ensuring long-lasting use.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• MPN: CS8464C
• Voltage Rating: 480 VAC
• Amperage Rating: 50 A
• Number of Poles: 2
• Number of Wires: 3
• Type: Grounding Heavy Duty Cord Mount
• Enclosure Rating: IP20
• Dimensions: 6.5 x 2.56 x 2.5 in
• Cord Diameter: 3/4 to 1-1/8 in
• Series: CS Series
• Material: Nylon
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Pressure Screw
• Color: Black/White
