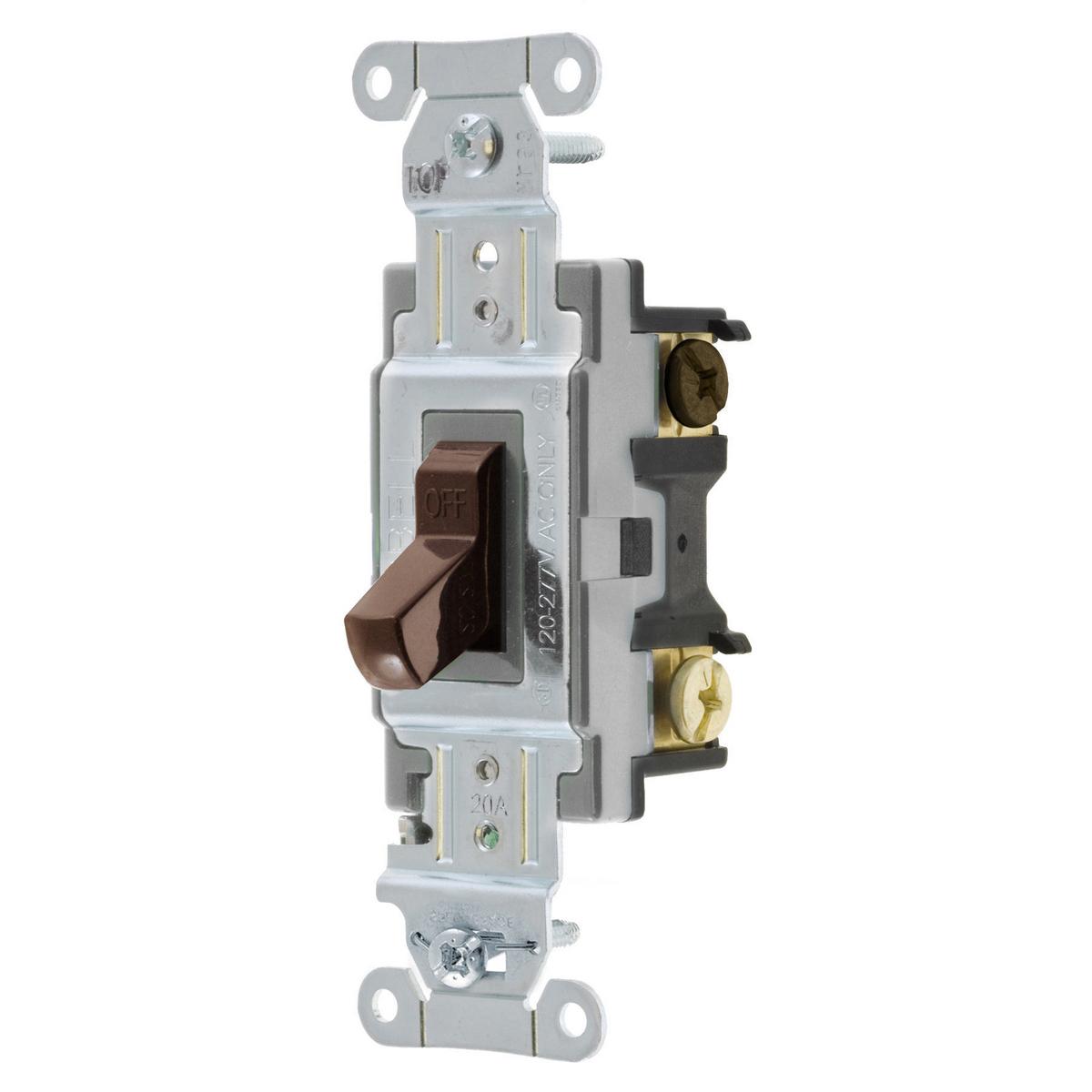

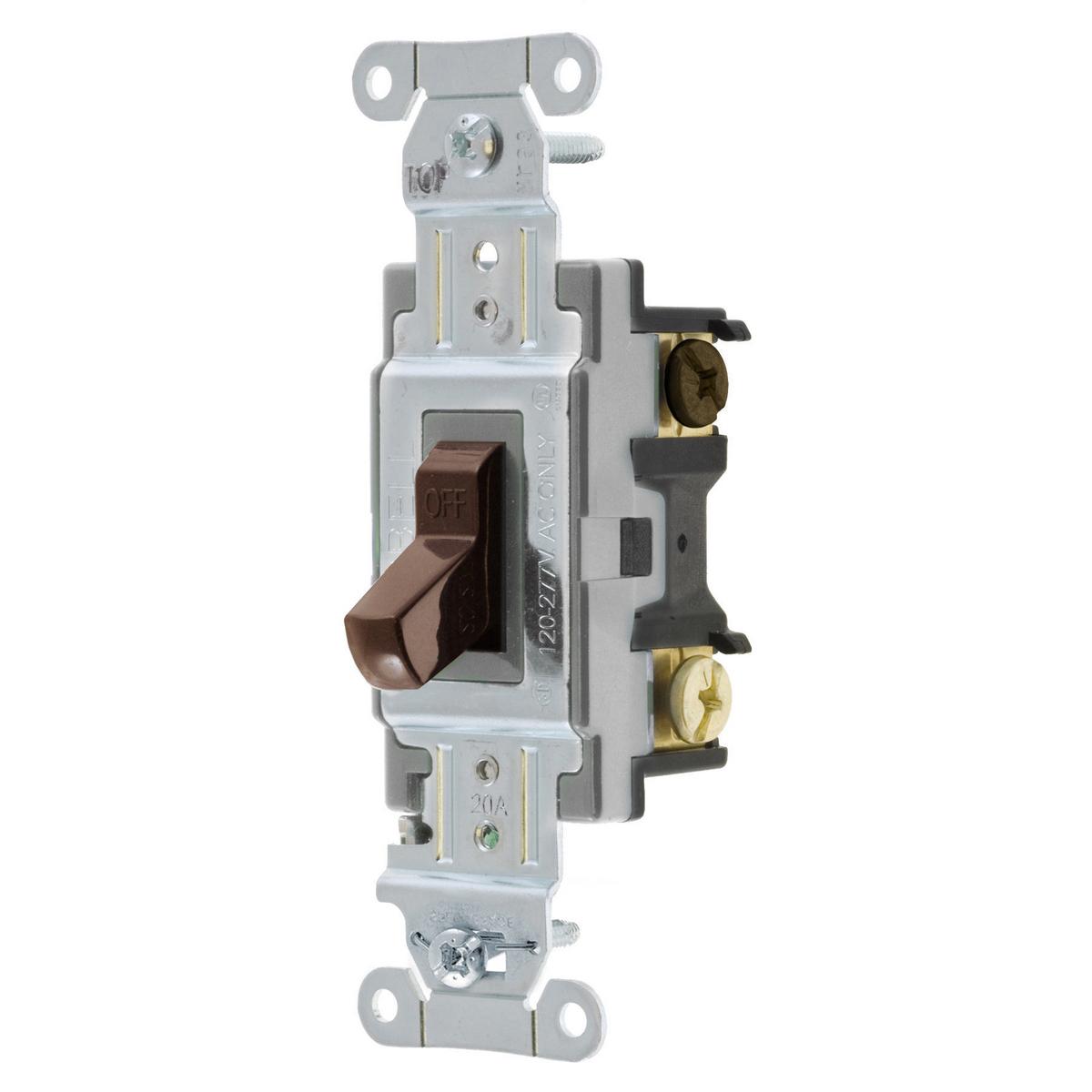

Wiring Device-Kellems CS320 3-Way General Purpose Standard Toggle Switch 120 to 277 VAC

Product Description

The Wiring Device-Kellems Toggle Switch, MPN CS320, is designed for general purpose use. It operates at a voltage range of one hundred twenty to two hundred seventy-seven VAC and has an amperage rating of twenty A. This toggle switch features a two-position contact configuration and is suitable for a variety of applications.

• 3-Way General Purpose Standard
• Durable nylon construction
• Threaded mounting for secure installation

Product Highlights

The switch is designed to last, rated for up to fifty thousand operating cycles. This ensures reliable performance in demanding environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Nylon

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Operating Cycles: 50000 cycles
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Color: Brown
• Environmental Conditions: -40 to 75 degrees C
• Mounting Type: Threaded
• Terminal Type: Side Wire
• Actuator Type: Toggle
• Contact Configuration: 2-Position
