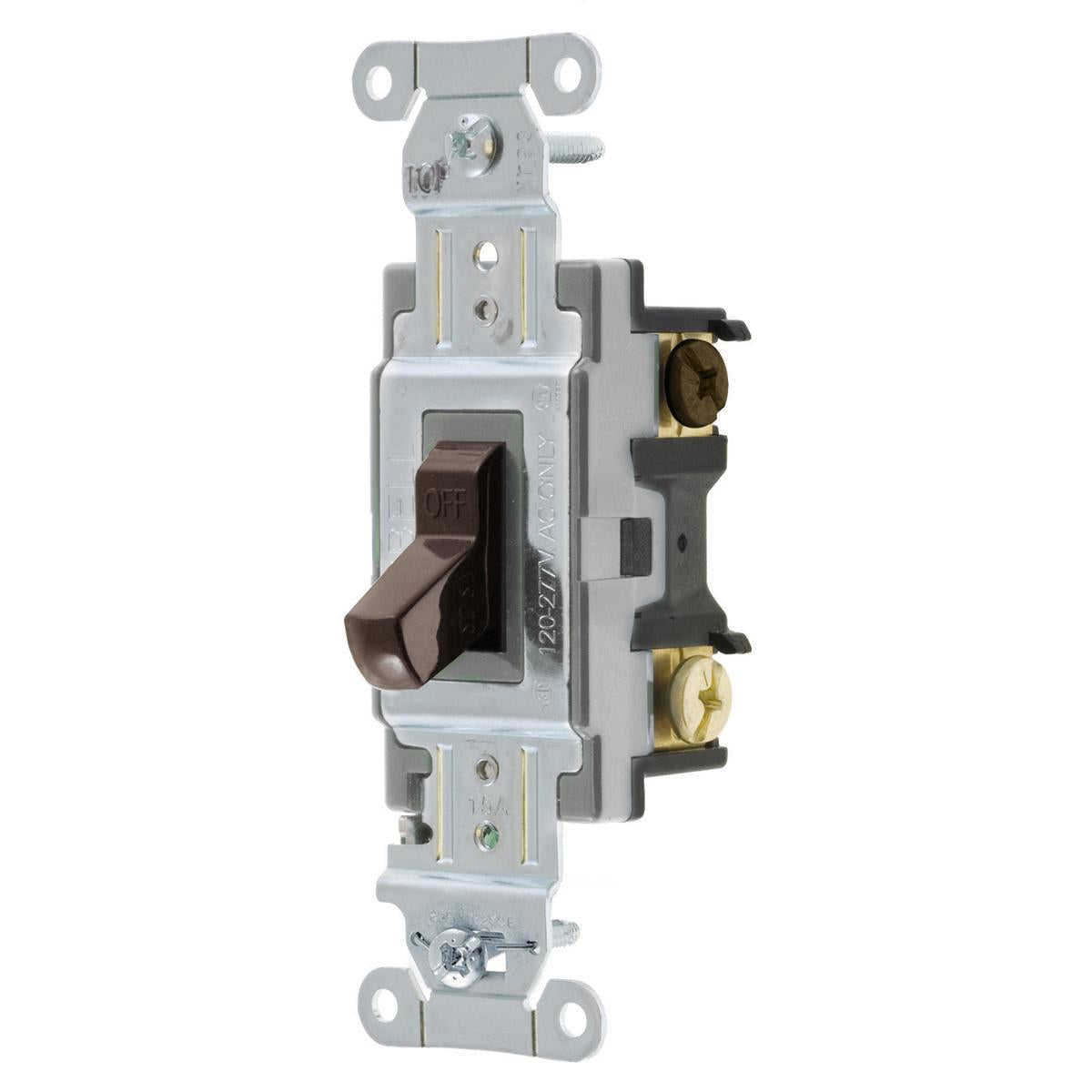

Wiring Device-Kellems CS315 Toggle Switch 120 to 277 VAC 15 A 4155 W

Product Description

The Wiring Device-Kellems CS315 is a toggle switch designed for 3-way general purpose applications. This switch operates within a voltage range of one hundred twenty to two hundred seventy-seven volts alternating current, with a maximum current rating of fifteen amps and a power rating up to four thousand one hundred fifty-five watts. It features a two-position contact configuration and is compliant with the CS Series specifications.

• Voltage range: 120 to 277 VAC
• Durable nylon construction
• Suitable for a variety of environmental conditions (-40 to 75 degrees Celsius)

Product Highlights

This switch is ideal for residential and commercial use, featuring threaded mounting and side wire terminals for easy installation. With a toggling actuator and high durability with fifty thousand operating cycles, this switch is a reliable choice for electricians.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Actuator: Toggle
• Color: Brown
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Nylon
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Series: CS Series
• Terminal Type: Side Wire
• Type: 3-Way General Purpose Standard
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 15 A
• Power Rating: 4155 W
• Contact Configuration: 2-Position
