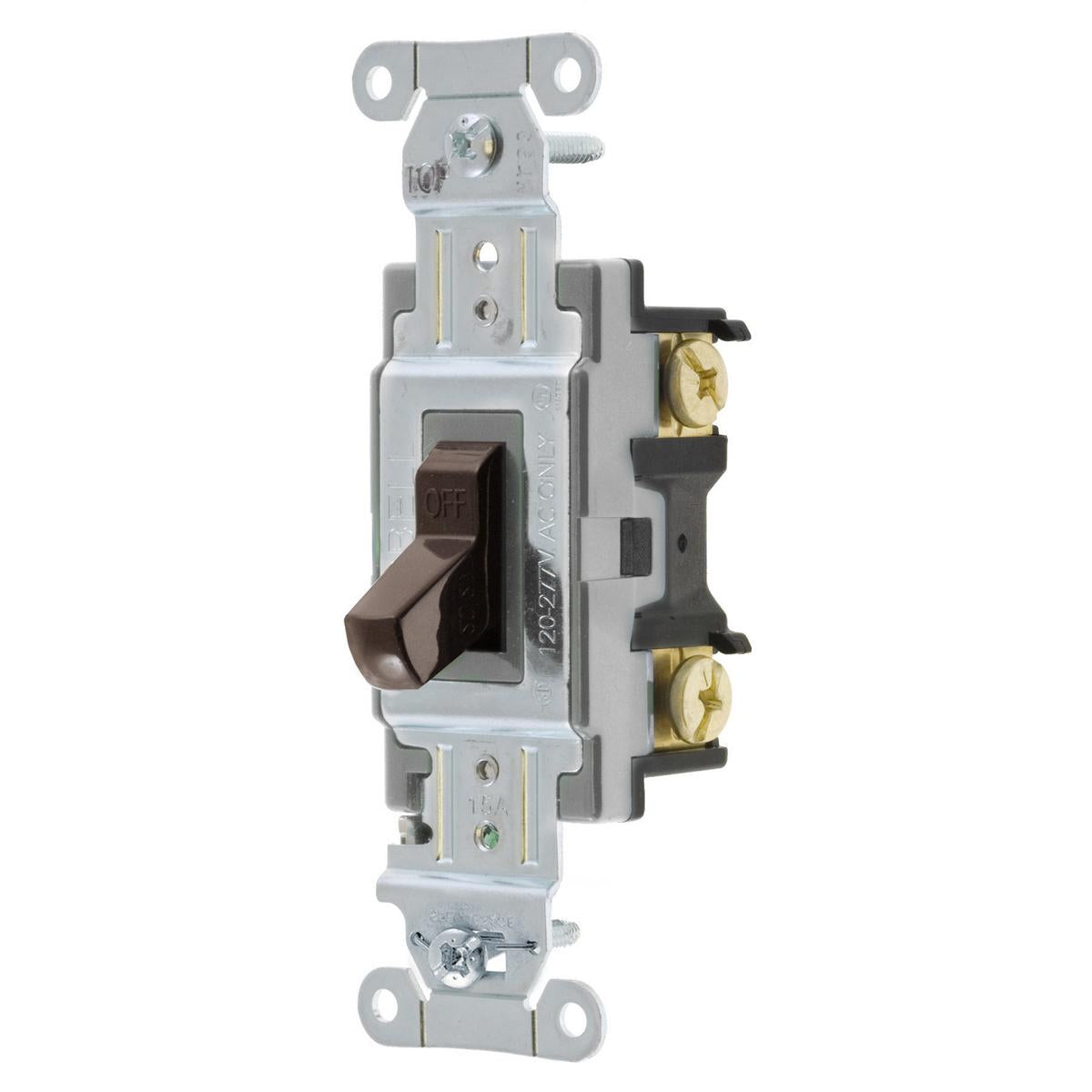

Wiring Device-Kellems CS115 Toggle Switch 120 to 277 VAC 15 A 4155 W

Product Description

The Wiring Device-Kellems CS115 is a toggle switch designed for general-purpose use. This switch operates with a voltage range of 120 to 277 VAC and can handle up to 15 A and a power rating of 4155 W. It features a two-position contact configuration and is built with a toggle actuator for user-friendly operation.

• Durable nylon housing for protection
• Threaded mounting for secure installation
• Capable of 50000 operating cycles

Product Highlights

The CS115 is ideal for applications that require reliable switching. Its robust design ensures long-term performance under various environmental conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Actuator: Toggle
• Color: Brown
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 deg C
• Material: Nylon
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Terminal Type: Side Wire
• Type: General Purpose Standard
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 15 A
• Power Rating: 4155 W
• Contact Configuration: 2-Position
