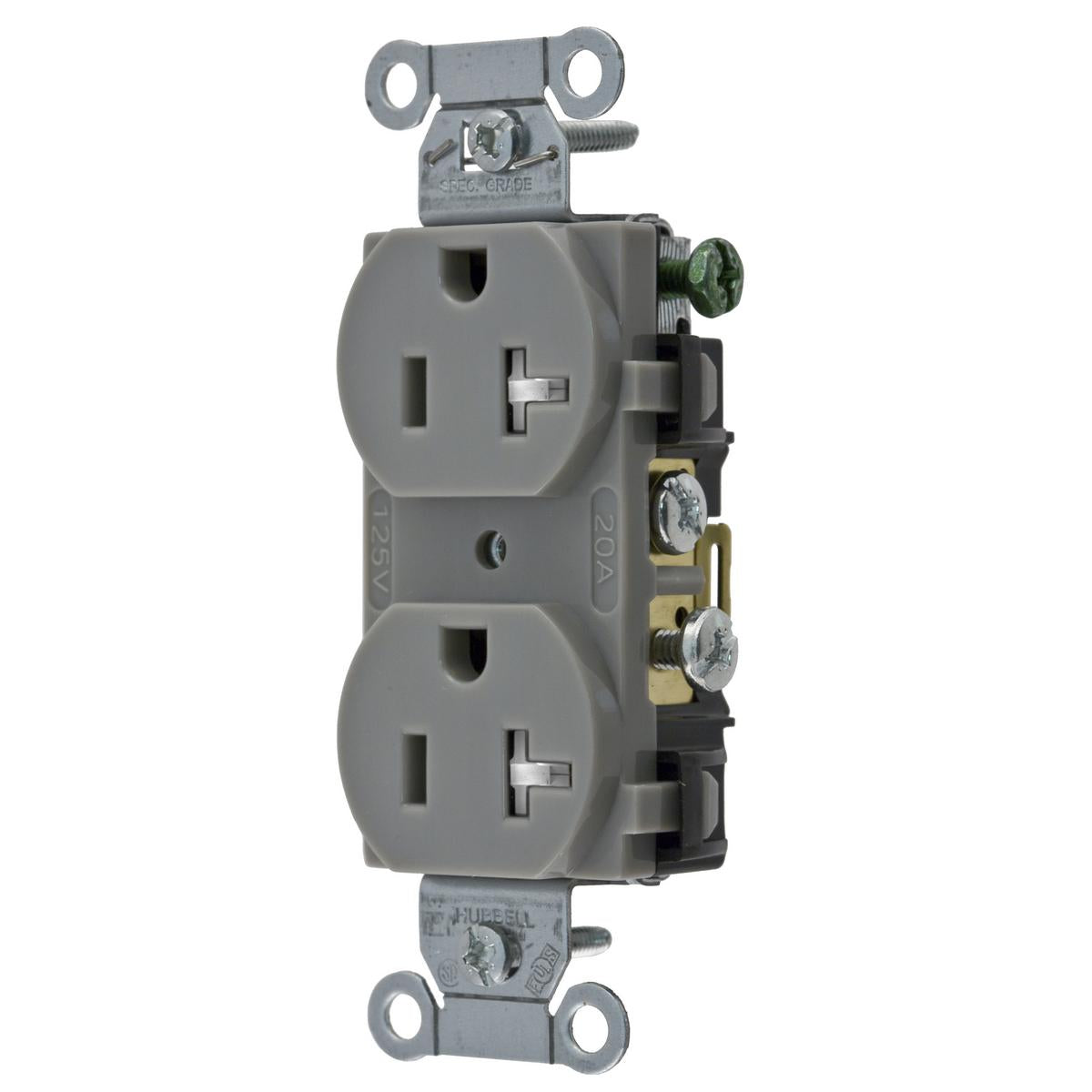

Wiring Device-Kellems CR20GRYTR 1-Phase Duplex Grounding Tamper Resistant Screw Mount

Product Description

The Wiring Device-Kellems Straight Blade Receptacle, MPN: CR20GRYTR, is a reliable electrical connection solution. This 1-Phase duplex grounding tamper resistant screw mount receptacle features a voltage rating of 125 VAC and an amperage rating of 20 A. It supports 2 poles and 3 wires, making it suitable for various installations.

• Durable nylon construction for enhanced strength
• Temperature rating of minus forty to seventy-five degrees Celsius
• 5-20R NEMA rating for broad compatibility

Product Highlights

This receptacle meets national electrical code requirements with tamper-resistant shutters for safety. Its side-wired terminal design simplifies installation, making it suitable for various electrical projects.

Product Information

Standard Information

• Manufacturer: Hubbell
• Type: 1-Phase Duplex Grounding Tamper Resistant Screw Mount

Technical Specifications

• Dimensions: 1.32 x 1.14 x 3.28 inches
• Grade: Specification
• Horsepower: 1 hp
• Material: Nylon
• NEMA Rating: 5-20R
• Series: CR20
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Side Wired
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Gray
