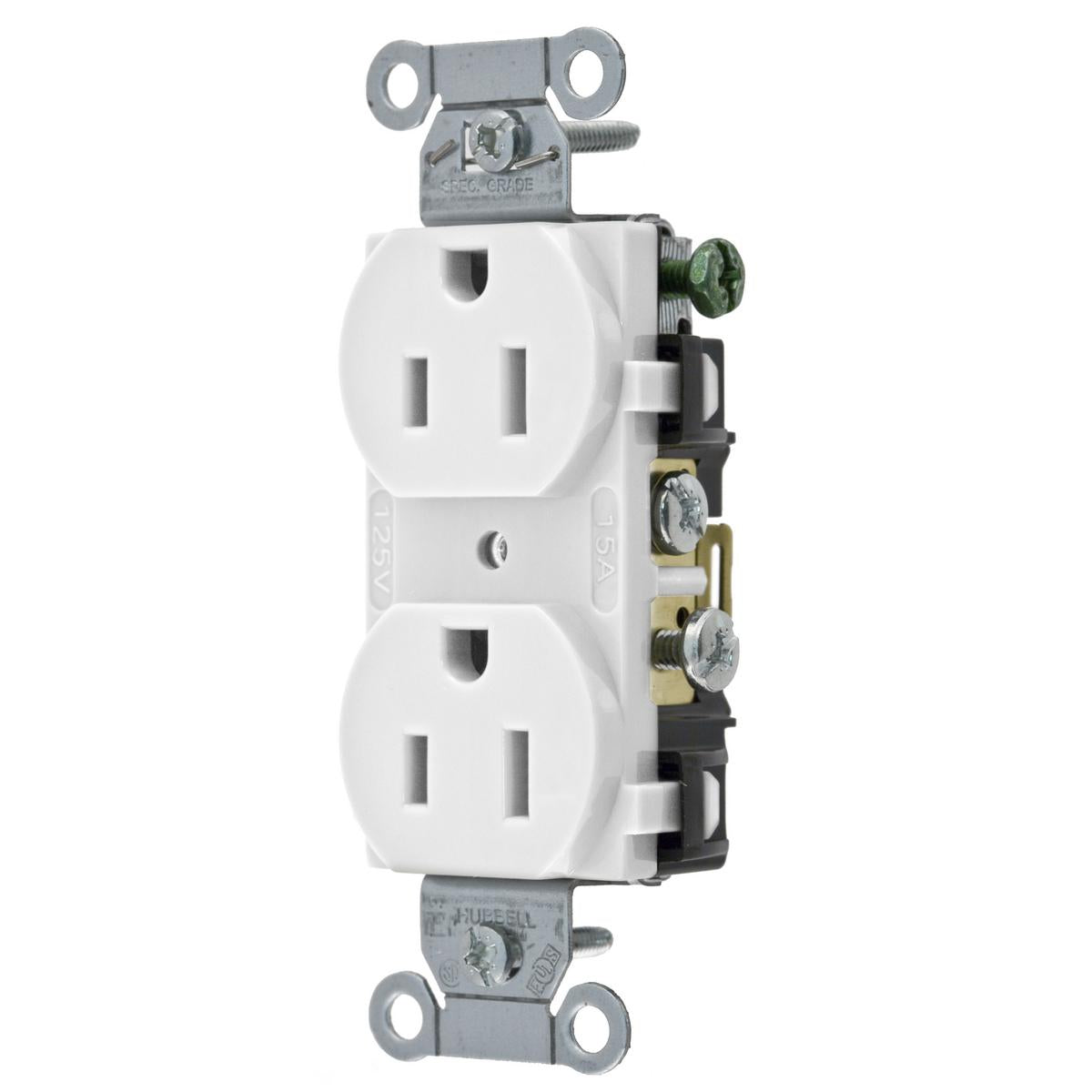

Wiring Device-Kellems CR15WHI 1-Phase Duplex Self-Grounding Screw Mount 125 VAC

Product Description

The Wiring Device-Kellems CR15WHI is a straight blade receptacle designed for reliable use in various electrical applications. This model features a 1-phase duplex self-grounding screw mount. It is rated for 125 VAC and 15 A, suitable for devices requiring up to 1/2 horsepower. The device includes two poles and three wires, making it versatile for different wiring setups.

• Built to withstand 2000 VAC dielectric voltage
• Meets 5-15R NEMA rating for commercial use
• Temperature range from -40 to 75 degrees Celsius

Product Highlights

Ideal for both residential and commercial environments, the wiring device is side wired and made from durable nylon. It offers easy access to split circuit tabs for convenient installation.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 1-Phase Duplex Self-Grounding Screw Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Horsepower: 1/2 hp
• Number of Poles: 2
• Number of Wires: 3
• Material: Nylon
• NEMA Rating: 5-15R
• Temperature Rating: -40 to 75 degrees Celsius
• Dimensions: 1.32 x 0.83 x 3.28 inches
• Terminal Type: Side Wired
