Wiring Device-Kellems 8300IV 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount

Product Description

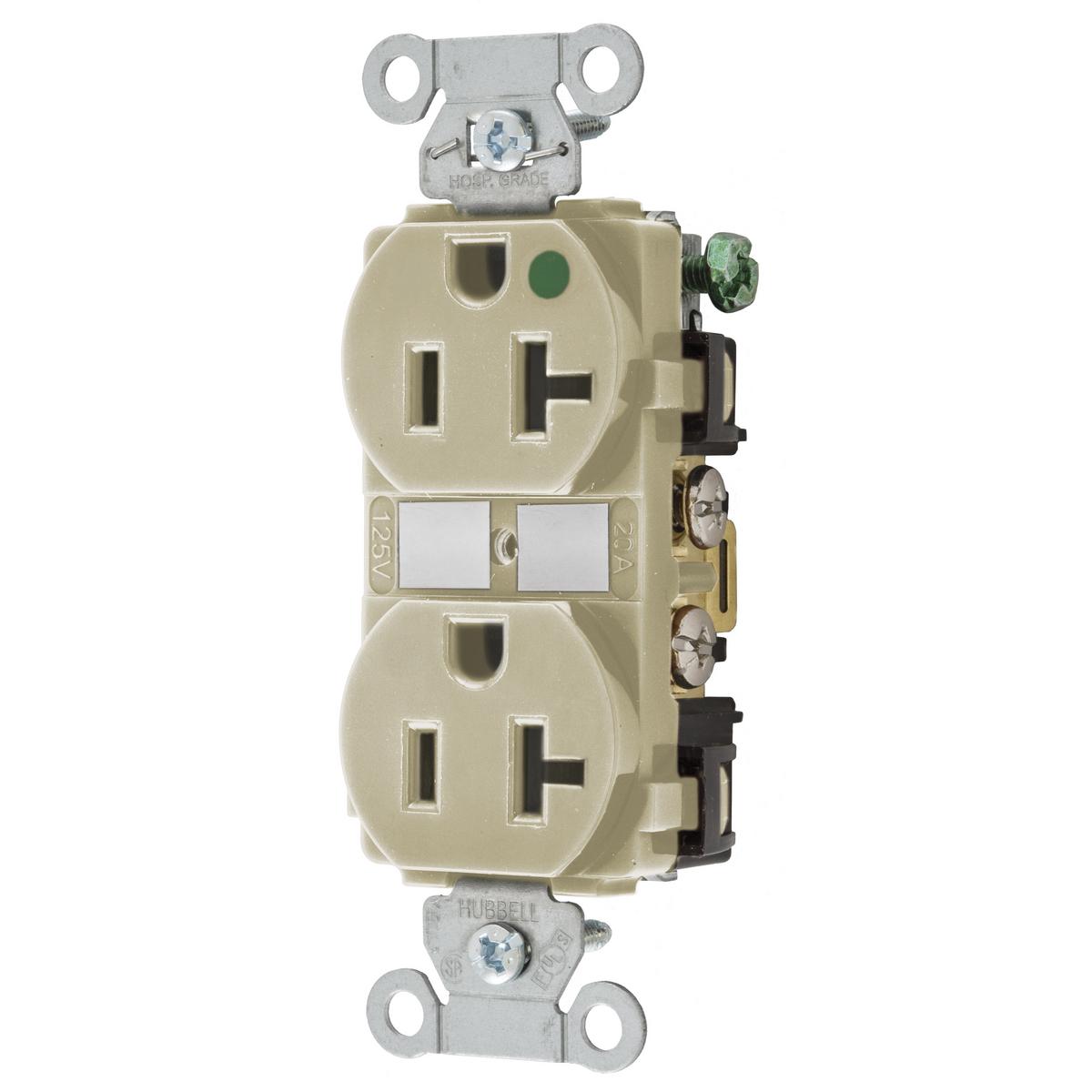

The Wiring Device-Kellems 8300IV is a straight blade receptacle designed for reliable electrical connections. It features a duplex self-grounding design, suitable for a range of applications. The receptacle operates at 125 VAC and supports a maximum current of 20 A.

• 1-Phase Duplex Self-Grounding
• 5-20R NEMA Rating
• Suitable for Hospital Grade applications

Product Highlights

This receptacle is crafted from nylon and is rated IP20 for enclosure protection. It performs optimally in temperatures ranging from -40 to 75 degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount
• Color: Ivory
• Grade: Hospital
• Material: Nylon
• NEMA Rating: 5-20R
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• Number of Poles: 2
• Number of Wires: 3
• Enclosure: IP20
• Temperature Rating: -40 to 75 deg C
• Dimensions: 3.28 x 1.57 x 1.15 in
• Terminal Type: Screw
