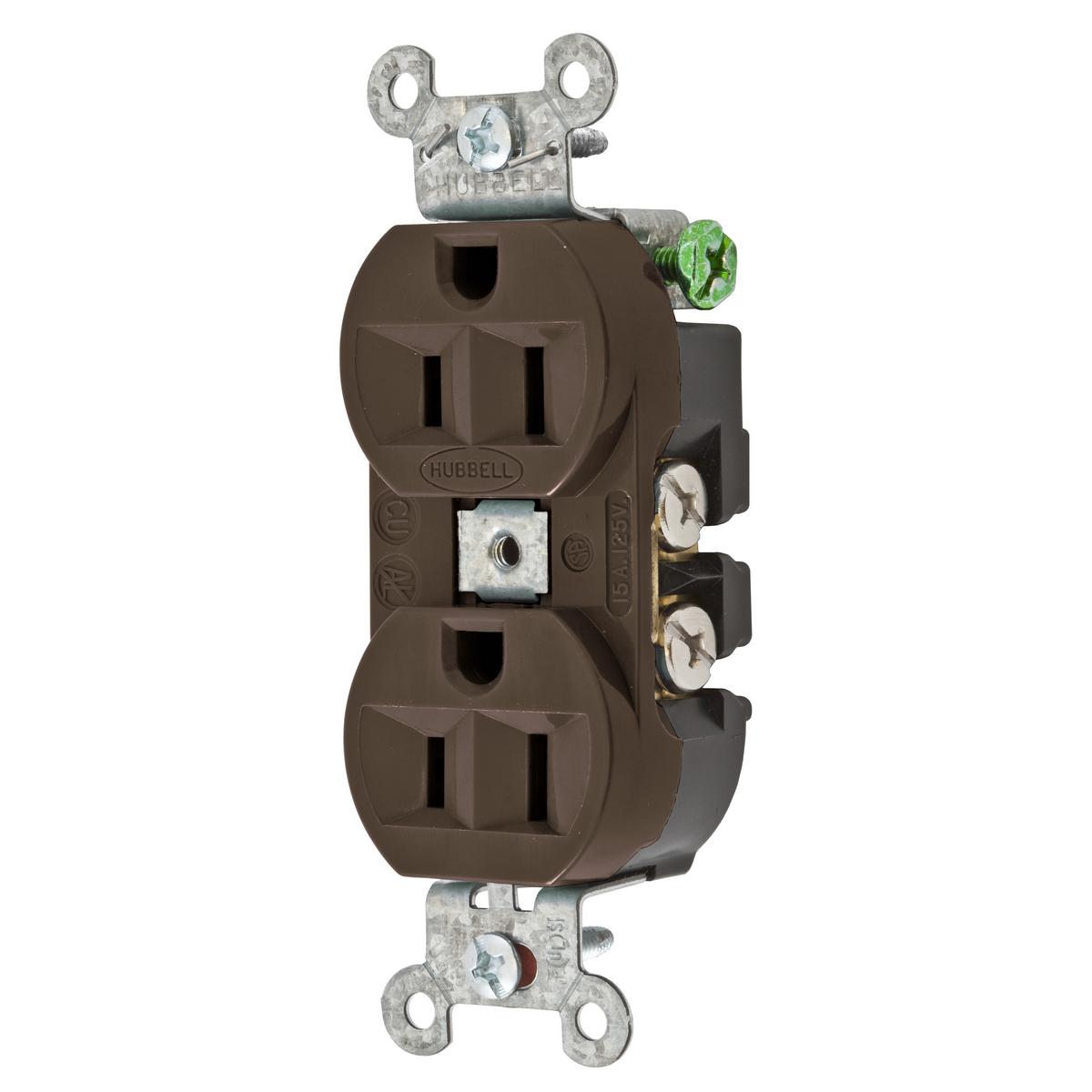

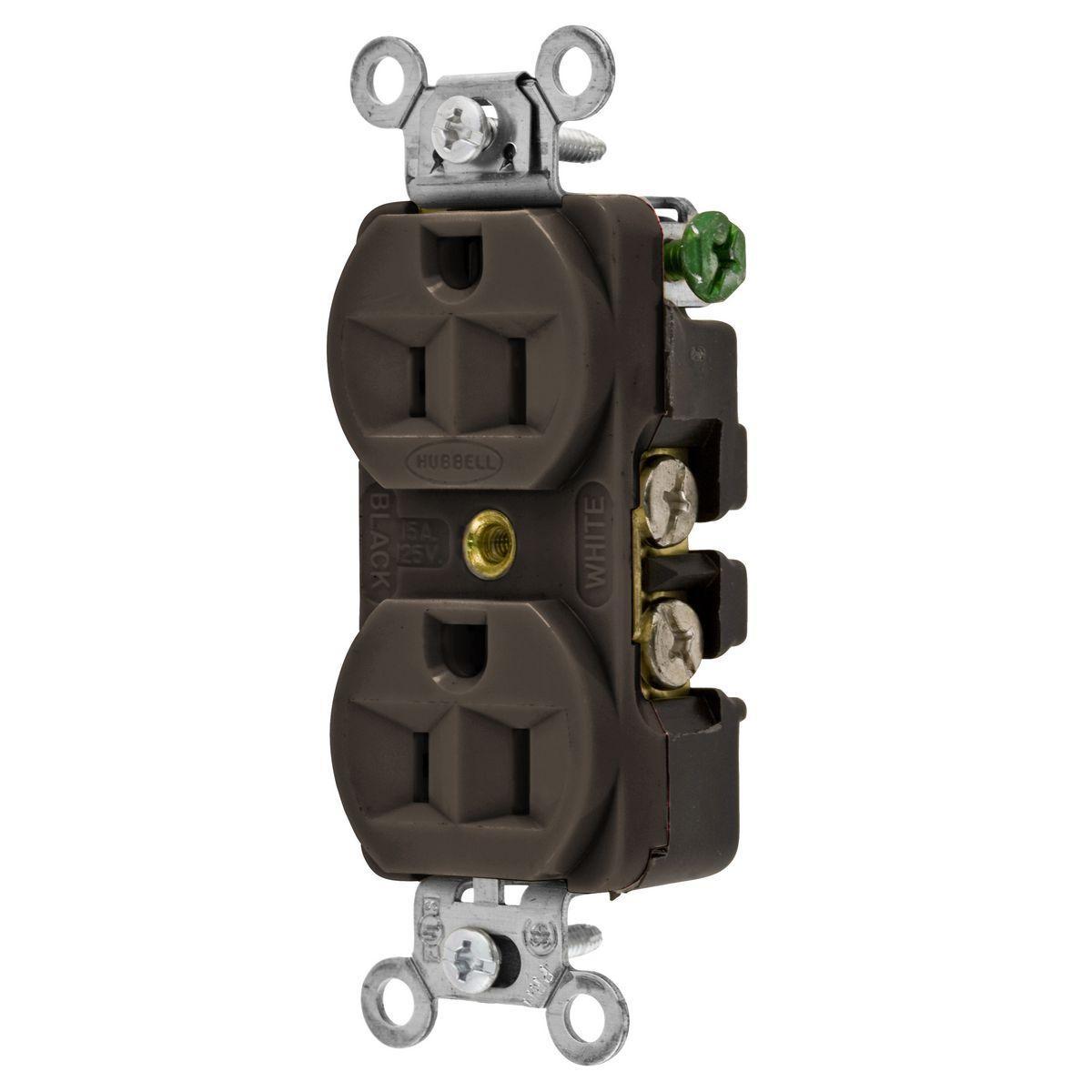

Wiring Device-Kellems 5262B 1-Phase Duplex Heavy Duty Standard Screw Mount

Product Description

The Wiring Device-Kellems Hubbell-PRO 5262B is a straight blade receptacle designed for heavy-duty applications. This 1-phase duplex receptacle operates at 125 VAC and has a current rating of 15 A. It features a standard screw mount, making it suitable for a variety of installations. The receptacle is constructed with thermoplastic and composite materials, ensuring durability and a long service life.

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• NEMA Rating: 5-15R

Product Highlights

This receptacle is ideal for industrial settings and is rated for both indoor and outdoor use. It can function effectively in temperatures ranging from -40 to 75 degrees Celsius. The side wired terminal connection simplifies the wiring process.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Thermoplastic/Composite

Technical Specifications

• Dimensions: 1.41 inches W x 1.09 inches D x 3.28 inches H
• Grade: Industrial/Specification
• Horsepower: 1/2 hp
• Temperature Rating: -40 to 75 degrees C
• Number of Poles: 2
• Number of Wires: 3
• Color: Brown
