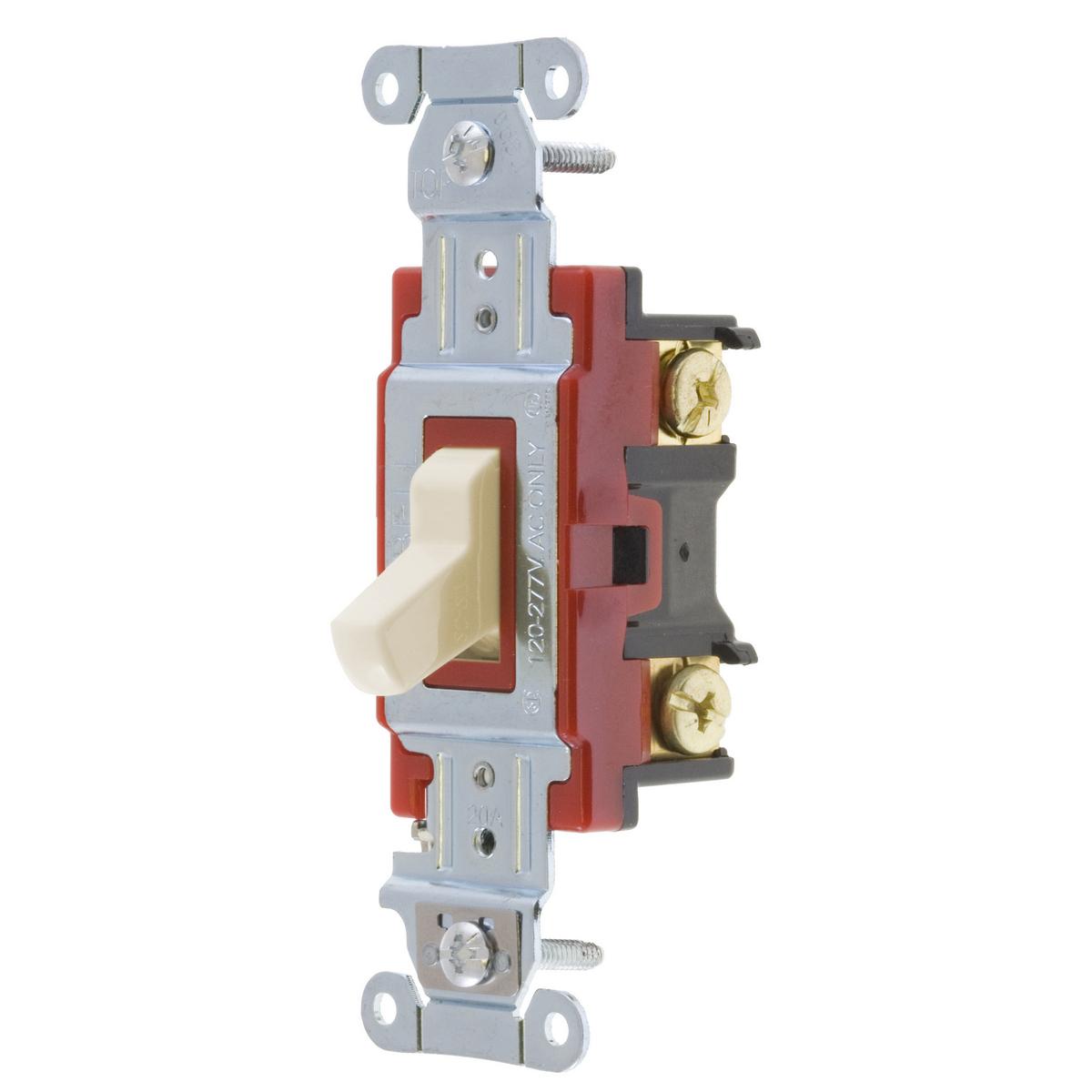

Wiring Device-Kellems 1224LA Toggle Switch 2-Position 4-Way Heavy Duty Standard

Product Description

The Wiring Device-Kellems 1224LA is a toggle switch designed for heavy duty applications. It operates at a voltage range of one hundred twenty to two hundred seventy-seven VAC and supports an amperage of twenty A. This switch is suitable for various environments and rated for a maximum power of five thousand five hundred forty W.

• 2-Position 4-Way Toggle Switch
• Threaded mounting with back/side wire terminal
• Long lifespan of fifty thousand operating cycles

Product Highlights

Ideal for both residential and commercial applications, the 1224LA switch features a durable nylon and thermoplastic construction, performing well in temperatures ranging from minus forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Actuator: Toggle
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2-Position
• Number of Poles: 2
• Operating Cycles: 50000 cycles
• Material: Nylon/Thermoplastic
• Mounting: Threaded
• Terminal Type: Back/Side Wire
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 deg C
