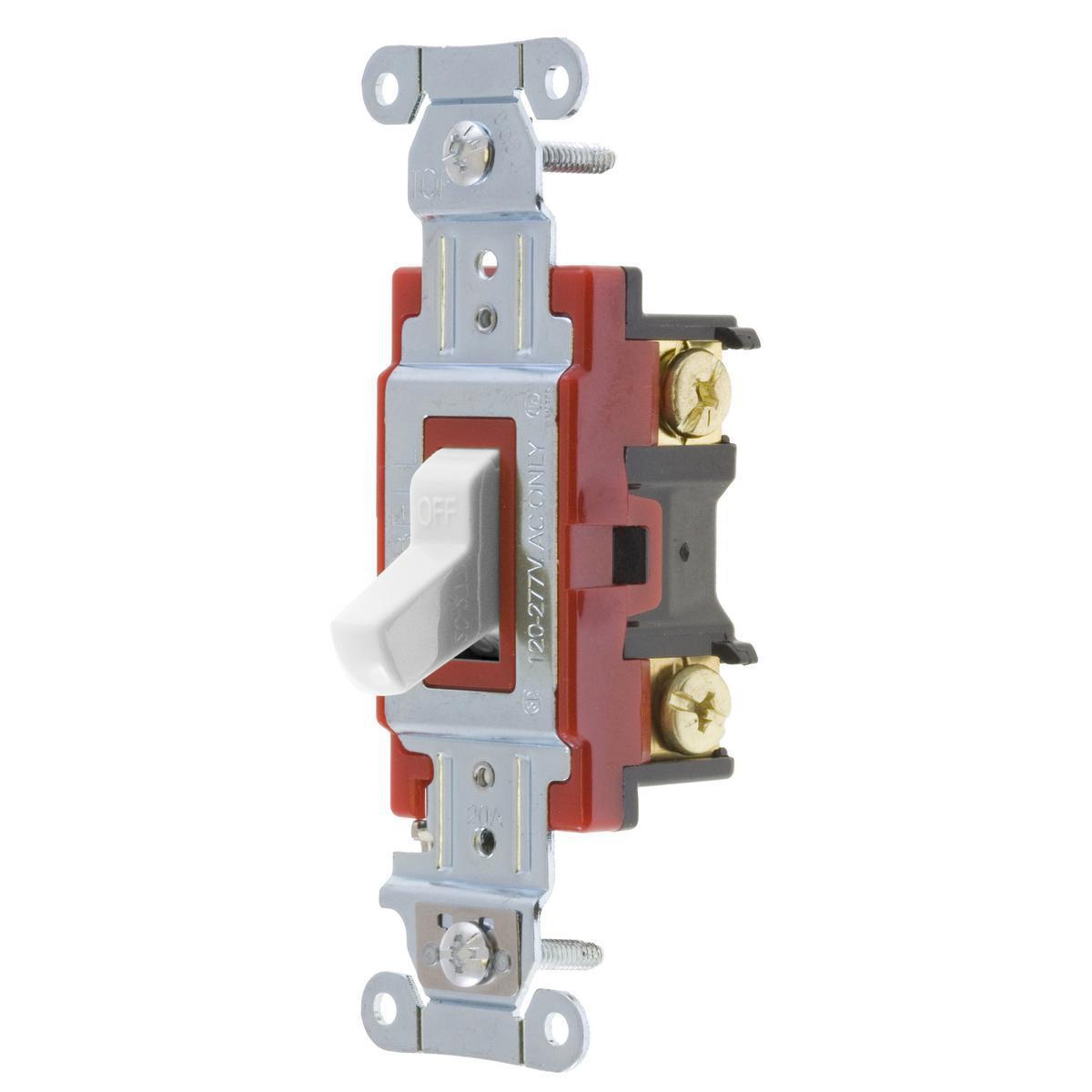

Wiring Device-Kellems 1222W Toggle Switch 2-Position Heavy Duty Standard

Product Description

The Wiring Device-Kellems Toggle Switch, model 1222W, is designed for heavy-duty applications. It operates on a voltage range of 120 to 277 VAC and has a power rating of 5540 W. The switch features a two-position contact configuration with a durable design suitable for various environments. This switch is ideal for commercial and industrial settings, ensuring reliable performance in demanding conditions.

• Rated for 20 A with a toggle actuator.
• Threaded mounting and back/side wire terminal for easy installation.
• Suitable for use in temperatures ranging from -40 to 75 degrees Celsius.

Product Highlights

The toggle switch is created from nylon and thermoplastic materials, making it tough and robust. It has a lifespan of 50000 operating cycles, enabling long-term usage without frequent replacements.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Actuator: Toggle
• Color: White
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Nylon/Thermoplastic
• Mounting: Threaded
• Number of Poles: 2
• Operating Cycles: 50000 cycles
• Series: HBL
• Terminal Type: Back/Side Wire
• Type: 2-Position Heavy Duty Standard
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2-Position
