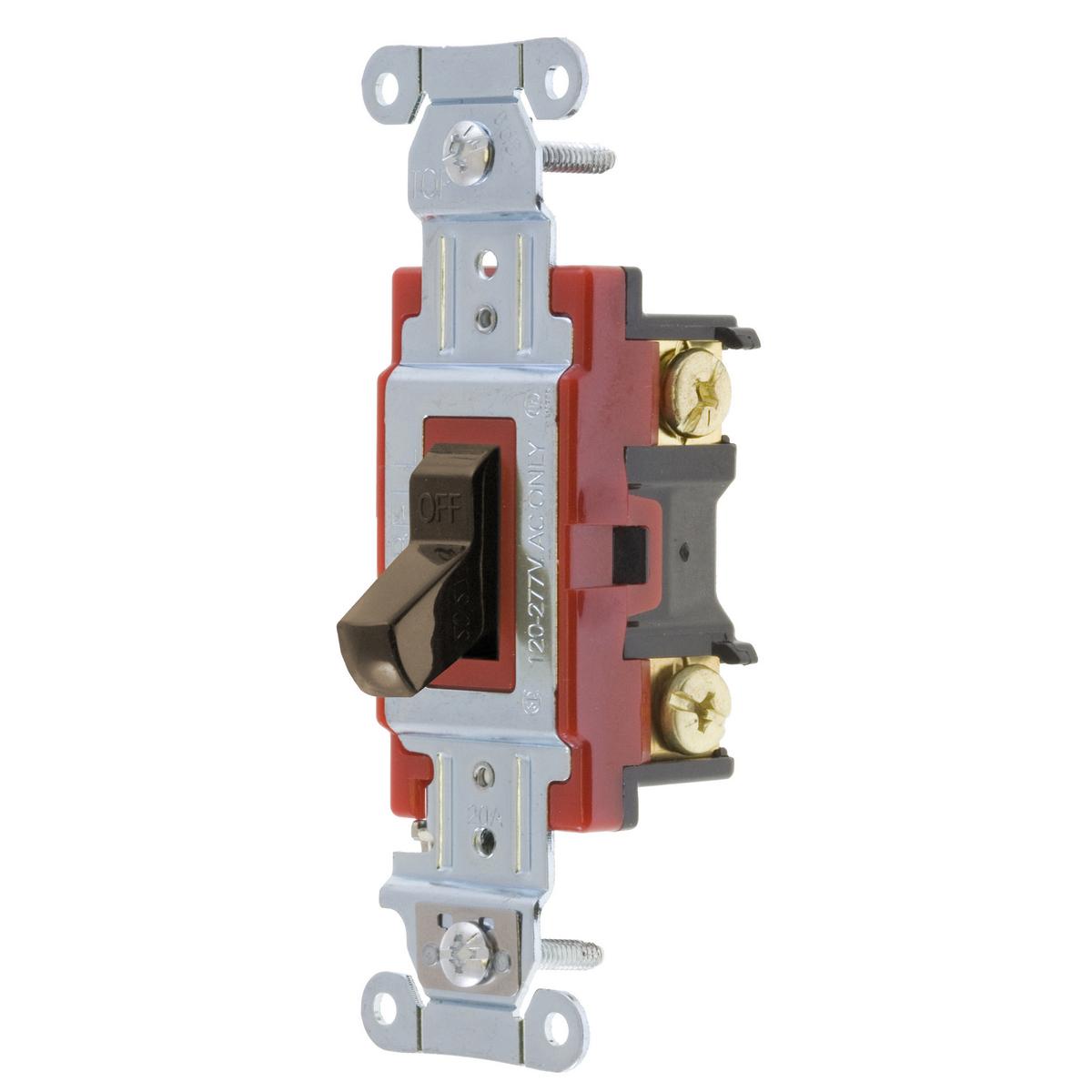

Wiring Device-Kellems 1221B Heavy Duty General Purpose Standard Toggle Switch

Product Description

The Wiring Device-Kellems Hubbell-PRO Toggle Switch, MPN 1221B, is designed for general-purpose applications. It operates at a voltage range of one hundred twenty to two hundred seventy-seven VAC and supports up to twenty amperes of current. With a power rating of five thousand five hundred forty watts, this toggle switch is suitable for various electrical systems.

• Compatible with a wide voltage range from 120 to 277 VAC.
• Rated for up to 20 A and 5540 W power handling.
• Built to withstand up to 50,000 operating cycles.

Product Highlights

This toggle switch features a threaded mounting design and a screw terminal for easy installation. The thermoset material ensures durability under various environmental conditions, with a temperature range from negative forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Actuator: Toggle
• Material: Thermoset
• Mounting: Threaded
• Dimensions: 4.18 inches x 1.49 inches x 1.83 inches
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Operating Cycles: 50000 cycles
• Contact Configuration: 2-Position
• Environmental Conditions: -40 to 75 deg C
• Color: Brown
