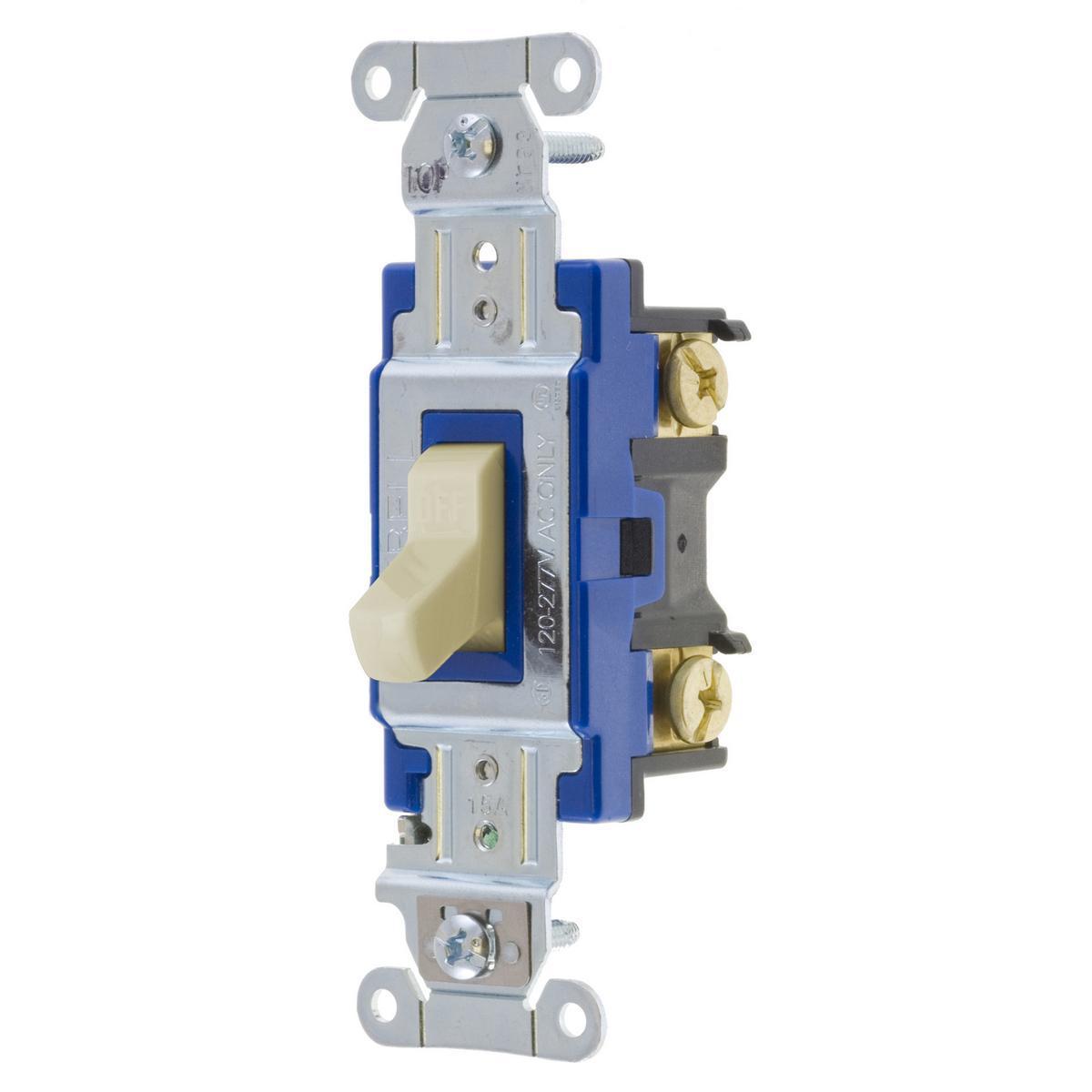

Wiring Device-Kellems 1201I Switch 120 to 277 VAC 15 A

Product Description

The Wiring Device-Kellems 1201I is a general-purpose toggle switch by Hubbell. It operates at a voltage range of 120 to 277 VAC with a current rating of fifteen amperes. The power rating reaches four thousand one hundred fifty-five watts.

• 2-Position contact configuration for versatile applications.
• Compatible with threaded mounting for easy installation.
• Designed to operate in an environment from -40 to seventy-five degrees Celsius.

Product Highlights

This heavy-duty switch is built with a thermoplastic material for durability and is color-coded by amperage for easier inspection.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Actuator: Toggle
• Color: Ivory
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Thermoplastic
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Series: HBL®
• Terminal Type: Back/Side Wire
• Type: General Purpose Heavy Duty Standard
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 15 A
• Power Rating: 4155 W
• Contact Configuration: 2-Position
