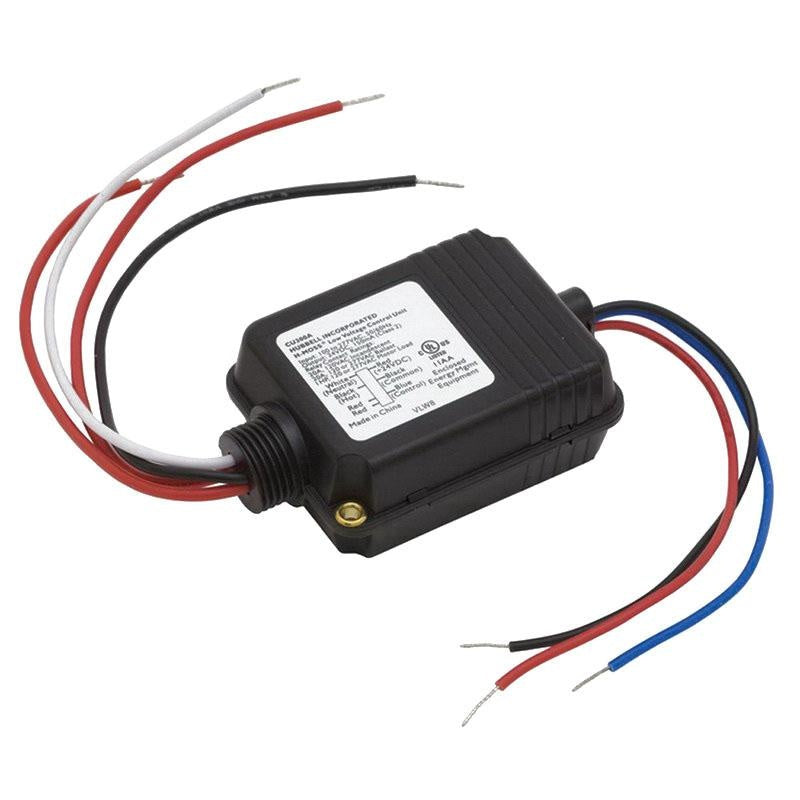

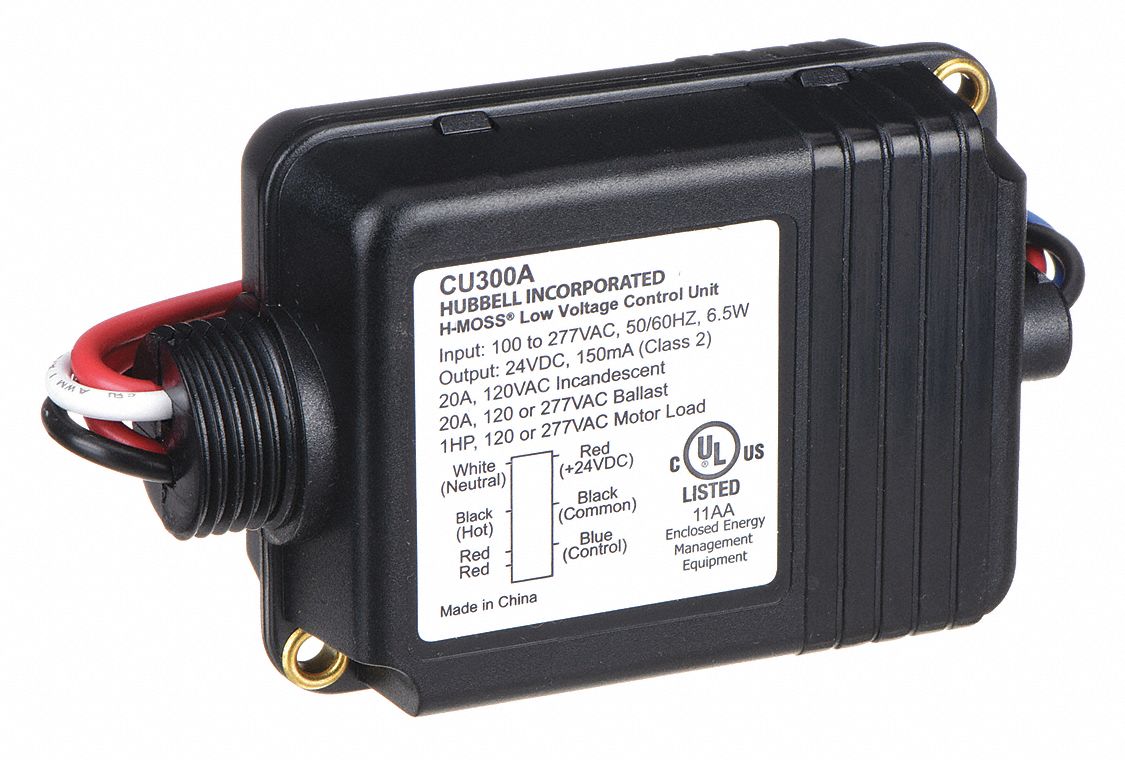

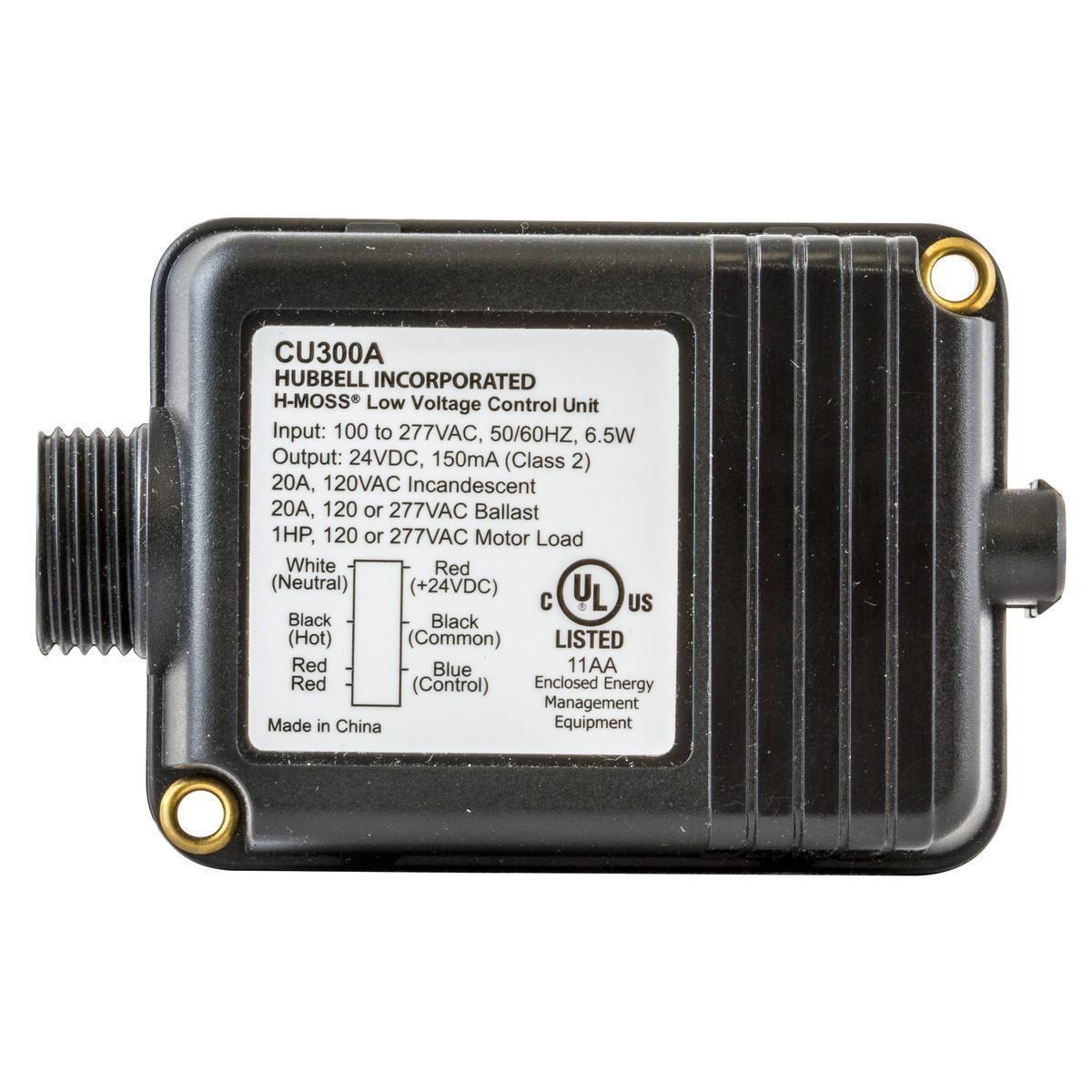

WIRING CU300A Wiring Device-Kellems H-MOSS CU300A Universal Occupancy Sensor Control Unit

Product Description

The Wiring Device-Kellems CU300A is a universal occupancy sensor control unit suitable for Hubbell ATD, ATU, and ATP series ceilings and wall-mount occupancy sensors. It supplies a 24V DC power source for a maximum of four sensors or sensor/Add-A-Relay sets.

• Automatic voltage detection for 120-277V AC, 50/60Hz.
• Zero arc point switching to reduce relay contact wear.
• Plenum-rated for safe installation in air-handling spaces.

Product Highlights

This control unit offers features that simplify the installation and operation of occupancy sensors while enhancing energy efficiency.

Product Information

Standard Information

• MPN: CU300A
• Brand: WIRING

Technical Specifications

• Voltage Rating: 120/277 VAC
• Power Rating: 0 to 1800 W
• Size: 3.69 inches L x 2.33 inches W x 1.36 inches H
• Sensor Type: ATD/ATU/ATP
• Control Output: 24 VDC/150 mA
• Response Frequency: 50/60 Hz
• Operating Temperature: 32 to 104 degrees F
• Humidity: 0 to 95% Non-Condensing Relative
• Mounting Type: Threaded
• Material: Thermoplastic
• Color: Black
