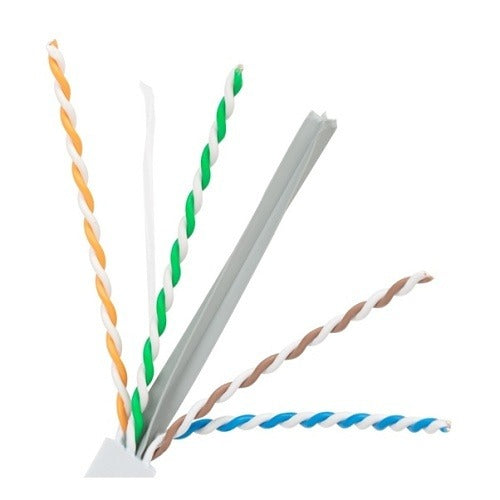

Wirepath SP-CAT6A-PL-1000-WHT CAT6A Plenum Cable

Product Description

The WIREPATH SP-CAT6A-PL-1000-WHT is a 1000-foot spool of CAT6A plenum-rated twisted-pair cable designed for structured network installations in commercial and residential buildings. CAT6A supports 10-Gigabit Ethernet at frequencies up to 500 MHz, making it the standard choice for high-performance horizontal runs in data, voice, and access-control systems. The plenum jacket compound meets CMP fire and smoke ratings, allowing installation in air-handling spaces such as drop ceilings and raised floors without conduit where local codes permit. Network technicians and low-voltage contractors install this cable during rough-in or above-ceiling pulls.

This spool is suited for new construction and retrofit projects requiring high-bandwidth backbone or horizontal cabling. Typical applications include office and classroom network drops, security camera infrastructure, VoIP telephony runs, and building automation wiring. The 1000-foot spool length is sized for full-floor horizontal distribution from a central IDF or MDF location. White jacket color supports clean label identification in standard ceiling and wall environments.

Key Features

• CAT6A rating supports 10GbE performance up to 500 MHz
• CMP plenum-rated jacket approved for air-handling space installation
• 1000-foot spool minimizes splice points on full-floor runs
• White jacket for straightforward identification and labeling in structured cabling systems
• Sold as a single spool unit for project-level purchasing

Compatibility

Designed for use with standard CAT6A-rated keystone jacks, patch panels, and RJ45 field-termination connectors in structured cabling systems following ANSI/TIA-568 specifications.

Installation Notes

Installation should be performed by a licensed low-voltage or data cabling contractor in accordance with ANSI/TIA-568 structured cabling standards and applicable local building codes. Do not exceed the minimum bend radius or pull tension rating for CAT6A cable during installation, as doing so can degrade pair geometry and compromise 10GbE performance. Verify that plenum-rated cable is required by the Authority Having Jurisdiction before substituting CMP jacket cable for CMR or riser-rated product. Terminate both ends with CAT6A-rated connectors to maintain the channel rating.
