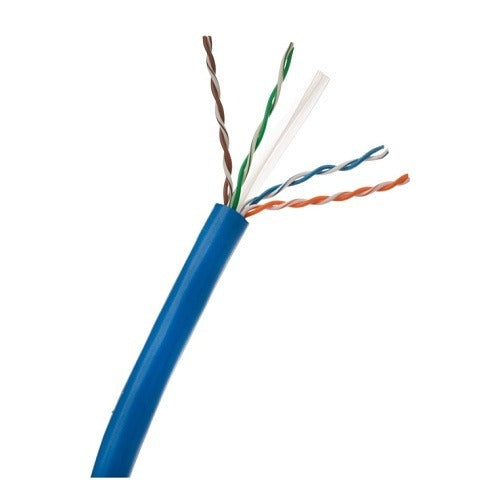

Wirepath SP-CAT6A-PL-1000-BLU Cat6a Plenum Cable

Product Description

The WIREPATH SP-CAT6A-PL-1000-BLU is a Category 6A plenum-rated bulk ethernet cable supplied on a 1000-foot spool in blue jacket. Cat6A plenum cable is engineered to support 10-Gigabit Ethernet at frequencies up to 500 MHz and is constructed with a low-smoke, low-flame jacket compound that meets plenum air-handling space requirements under NFPA 90A. Network installers and low-voltage technicians pull this cable through ceiling plenums, raised-floor systems, and air-return pathways where standard PVC-jacketed cable is not code-compliant. The blue jacket aids in color-coded infrastructure organization across structured cabling installations.

This spool is suited for new construction and retrofit horizontal cabling runs in commercial office buildings, healthcare facilities, educational campuses, and any environment where air-handling spaces are part of the cable pathway. It is appropriate for runs supporting PoE, PoE+, and high-density 10GbE switch infrastructure. The 1000-foot spool length is standard for structured cabling pulls between telecommunications rooms and work-area outlets.

Key Features

• Cat6A performance tier supporting 10-Gigabit Ethernet up to 500 MHz
• Plenum-rated jacket meets NFPA 90A requirements for air-handling space installations
• 1000-foot spool provides a full bulk-run quantity for structured cabling projects
• Blue jacket supports color-coded cable plant organization
• Low-smoke, low-flame jacket compound reduces fire-spread risk in plenum pathways

Compatibility

Designed for use with standard Cat6A keystone jacks, patch panels, and RJ45 field-termination connectors in TIA-568 compliant structured cabling systems.

Installation Notes

Installation should be performed by a licensed low-voltage or structured cabling technician in accordance with TIA-568 standards and local fire and building codes. Verify plenum rating requirements with the authority having jurisdiction before pulling cable through air-handling spaces. Do not exceed the cable manufacturer's minimum bend radius or maximum pull tension during installation, as both can degrade insertion loss and return loss performance. De-energize any adjacent powered infrastructure and follow lockout procedures before working in plenum spaces above live electrical equipment.
