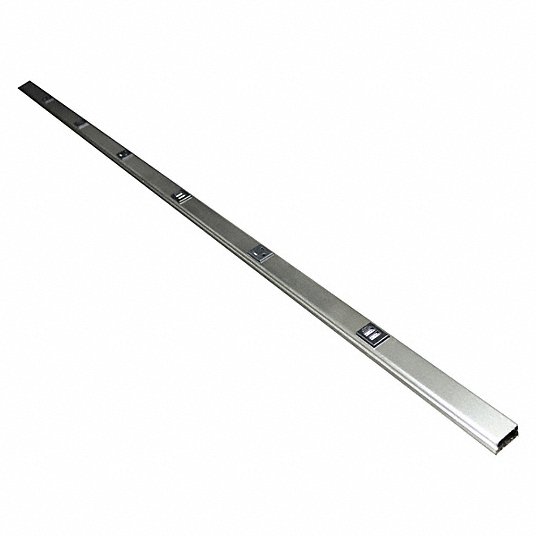

Wiremold S20GB509TRUSBA Plugmold 5 feet Alternating USB Tamper Resistant Multioutlet System

Product Description

The WIREMOLD S20GB509TRUSBA Plugmold 2000 Series raceway offers a versatile solution for many applications. This 5' multioutlet system features alternating USB and tamper-resistant receptacles. The ScuffCoat finish is scratch resistant and protects against nicks and chips while preventing color from fading. Ideal for commercial, education, healthcare, and retail environments.

• USB charging- Dual-port charging modules share 2.4 amps of charging capacity and can charge multiple phones, tablets or other mobile devices at the same time.
• Compact design- Low-profile design installs in tight locations while offering multiple power and USB charging connections. Receptacle spacing accommodates bulky AC adapters.
• Tamper-resistant receptacles- Prevents the insertion of foreign objects into receptacles reducing the risk of shocks or electrocution. Meets 2014 NEC section 406 requirements.

Product Highlights

The WIREMOLD Plugmold is a 5' multioutlet system with USB charging and tamper-resistant receptacles, perfect for commercial and residential applications.

Product Information

Standard Information

• Brand: WIREMOLD
• Manufacturer Part Number: S20GB509TRUSBA
• Country of Origin: USA

Technical Specifications

• Color: Stainless Steel
• Product Series: 2000 Series
• Type: Plugmold
• Material: Stainless Steel
• Application: Multioutlet Systems, Raceways
• Application Sector: Commercial, Education, Entertainment, Healthcare, Hospitality, Retail
• Product Line: Wiremold
• Country Of Origin: United States
• USB-A Charging: Yes
• Installed Devices: Single Receptacle, USB-A Ports
• Number of Receptacles: 3
• Outlet Type: Tamper-Resistant
• Standard: cULus Listed Multioutlet Assembly: File E15191 Guide PVGT/PVGT7
• UPC Number: 786776184457
• Product Depth US: 0.88 in
• Product Height US: 1.25 in
• Product Volume US: 66.0 cu in
• Product Width US: 60.0 in
• Product Weight US: 2.04 lb
• Receptacle Spacing: 9 in
• cULus ListingNumber: E15191
• cULus Listed: Yes
• Trade Programs: USMCA
• Product Environmental Profile: Yes
• RoHS Compliant: Yes
• Amperage: 15 A
• Wiring Configuration: Single Circuit
• Environmental Conditions: Dry interior locations
• USB Amperage: 2.4 A
• Indoor/Outdoor: Indoor
• USB Wattage: 15 W
• Is Pre-Wired: Yes
• Mounting Type: On Surface
• NEMA Configuration Code: 5-15R
• Number of USBs: 3
• Voltage: 125.0 V
• Wiring Method: Hard-Wired
• Enclosure: Steel
• Enclosure Material: Stainless Steel
• Frequency: 60 Hz
• Length: 5 ft
• Width: 60.0 in
• Certifications: CULUS,NAFTA,ROHS
• USMCA Compliant: Yes
• Buy American Compliant: Y
• No. of Outlets: 6
• Color Family: Metallic
• Height: 1.25 in.
• Depth: 0.88 in.
• Number of Outlets: 9
• Data Communication Outlets: (6) Type A USB
• Outlet Center Distance: 9 in
• Number of Circuits: 1
• Current: 2.4 A
• Mounting Style: Screw Through Base
• Basic Material: Stainless Steel
• Number of Wire Leads: 3
• Includes: (1) 2001 Base Coupling; (2) 2010B Blank End Fittings Optional Entrance Fitting
• Optional Entrance Fitting: (1) Coupling; (2) Blank End Fittings
• Standards: cULus Listed Multioutlet Assembly: File E15191 Guide PVGT/PVGT7; Meets 2014 NEC section 406 requirements
• Wire Size: #12 THHN
• Overall Height: 7/8 in
• Overall Width: 1-5/16 in
• UNSPSC: 39121203
