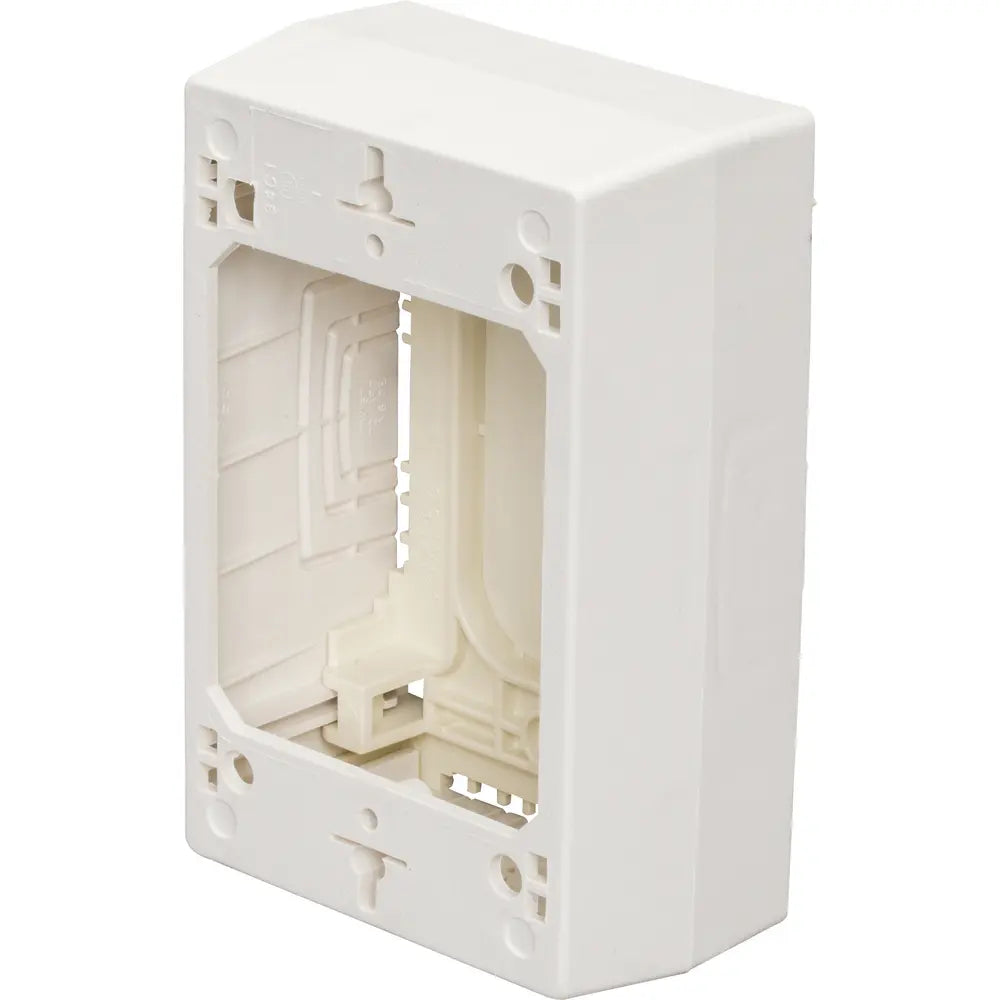

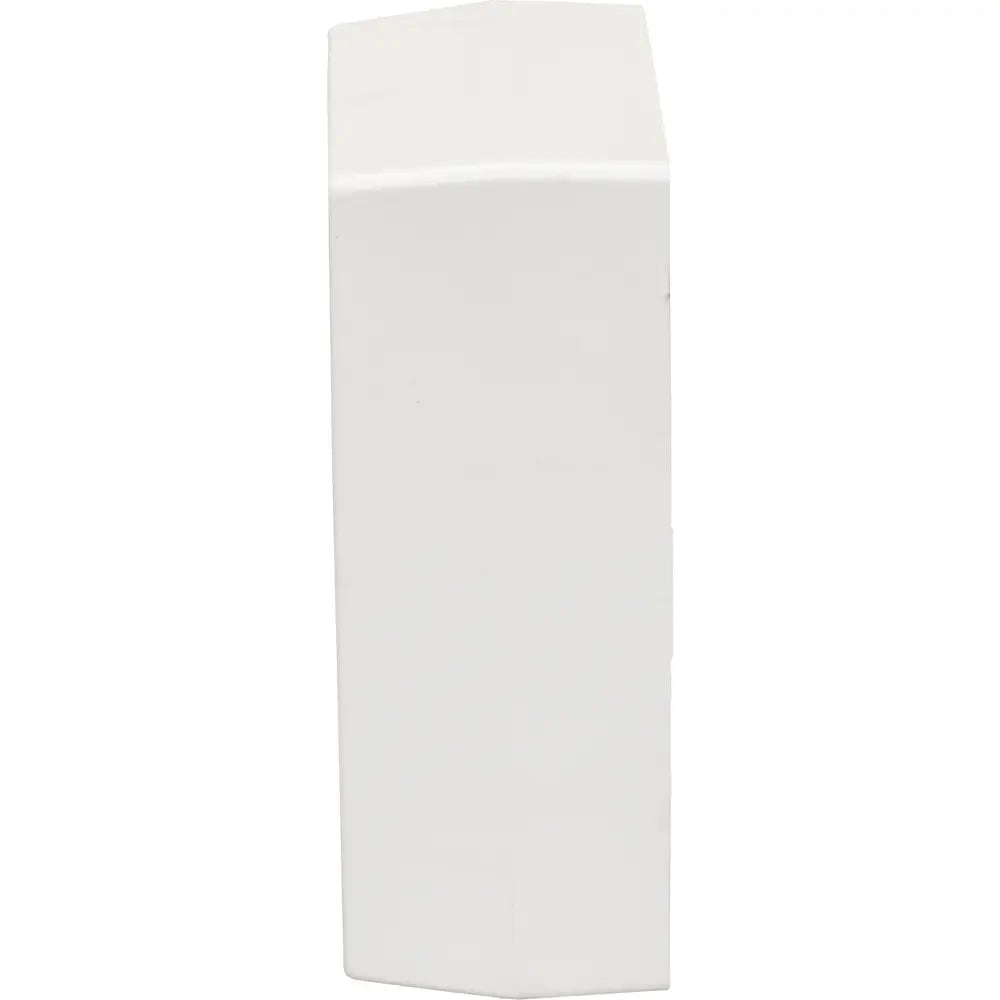

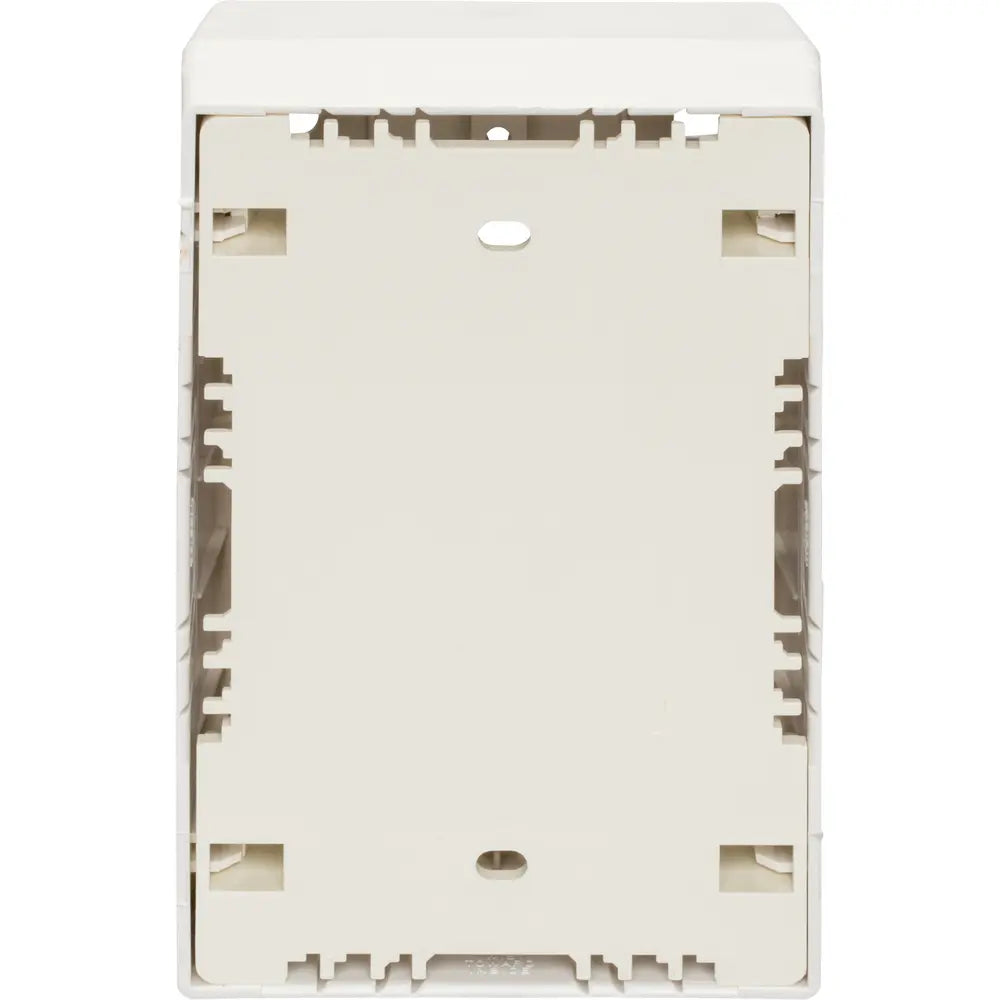

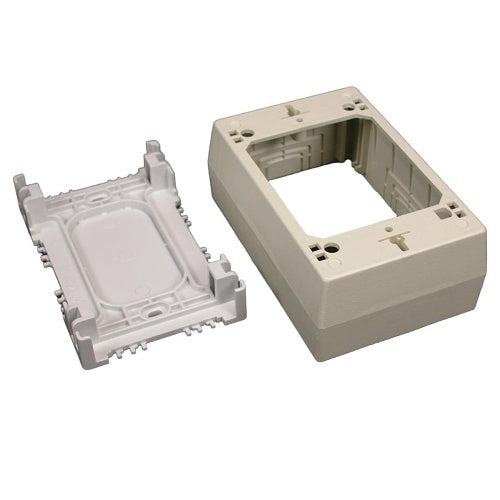

Wiremold PSB1FW Nonmetallic Power Box

Product Description

The Wiremold PSB1FW nonmetallic power box accepts all standard single-gang NEMA faceplates and keystone jacks. It features twistouts on all four sides for PN03, PN05, and PN10 Series Raceways and is designed for use with Ortronics WiJack Wireless Access Point. This one-gang device box is suitable for communication or power applications.

• Accepts standard single-gang NEMA faceplates
• Features twistouts for PN03, PN05, and PN10 Series Raceways
• Designed for use with Ortronics WiJack Wireless Access Point

Product Highlights

The Wiremold PSB1FW is ideal for classrooms, offices, and hotel applications where a small, low profile raceway is needed.

Product Information

Standard Information

• Brand: Wiremold
• Manufacturer Part Number: PSB1FW
• Country of Origin: US

Technical Specifications

• Color: FOG WHITE
• Components: DEVICE / JUNCTION / OUTLET BOX
• Type: NON-METALLIC
• UNSPSC Code: 39131709
• Depth: 1.75 Inches
• Width: 3 Inches
• Finish: Textured
• Length: 4.75 Inches
• Material: PVC
• Mounting Holes: 4
• Fitting Type: One-Gang Power Box
• Product Series: Eclipse Series
• Application Sector: Commercial, Residential
• Product Line: Wiremold
• Installation Location: On Wall
• Standard: cULus Listed Raceway: File E90378 Guide RJTX. Complies with flammability rewuirements of UL-5A. Fittings: File E90377 Guide RJYT. Meets Article 388 of NEC. UL Listed for up to 600V. Meets Section 12-2600 of CEC.
• cULus ListingNumber: E90377
• cULus Listed: Yes
• USMCA: Yes
• Product Environmental Profile: Yes
• RoHS Compliant: Yes
• Indoor/Outdoor: Indoor
• Is Pre-Wired: No
• Number of Gangs: 1
• Brand Name: Wiremold by Legrand
• Manufacturer: Legrand Group
• Manufacturer Part Number: PSB1FW
• Product Model: PSB1-FW
• Product Name: PSB1-FW Mounting Box
• Product Type: Mounting Box
• TAA Compliant: Yes
• Certifications: TAA
• Environmental Certification: ECO PASSPORT, RoHS
• Environmentally Friendly: Yes
• Voltage Rating: 600 V
• Size: 3 in
