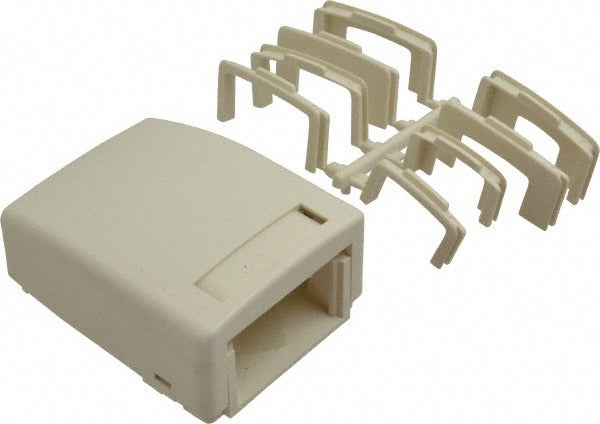

Wiremold PDB1CMV Rectangular Raceway Box Ivory PDB1

Product Description

The WIREMOLD PDB1CMV is a rectangular surface-mount raceway box designed for use with the Eclipse PDB1 Series raceway system. This ivory-finished box provides a termination or device-mounting point within a low-voltage or power raceway installation. It measures 3.625 inches long, 2.875 inches wide, and 1 inch high, offering a compact profile suited for wall-mounted raceway runs in commercial and light commercial environments. Electricians and low-voltage installers use this box where a clean, finished endpoint or junction is required along a PDB1 Series raceway route.

This box is intended for interior raceway installations where surface-mount wiring management is required. Typical applications include office partitions, classroom walls, and commercial interiors where recessed wiring is not practical. The ivory finish blends with standard interior wall surfaces. It is sized and configured to mate directly with ECLIPSE PDB1 Series raceways, maintaining a continuous, professional appearance along the raceway run.

Key Features

• Rectangular shape provides a flush, finished termination point along PDB1 raceway runs
• Ivory color finish coordinates with standard interior wall surfaces
• Compact dimensions — 3.625 inches long, 2.875 inches wide, 1 inch high — minimize wall projection
• Designed for direct compatibility with ECLIPSE PDB1 Series raceways
• Lightweight construction at 0.188 pounds for easy handling during installation

Compatibility

Designed for use with ECLIPSE PDB1 Series raceways.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements for surface raceway systems. Power should be de-energized at the circuit breaker before beginning work on any connected raceway. Secure the box to the wall surface before attaching the raceway section to ensure proper alignment. Do not force raceway sections into the box fitting, as this may compromise the mechanical connection.
