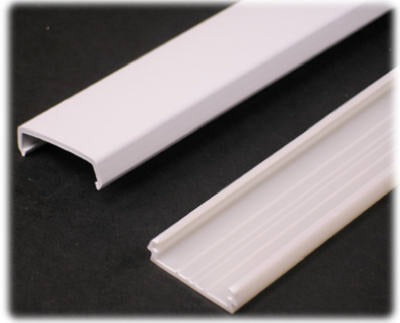

Wiremold Company NMW1 Wire Channel 5 Ft White Plastic

Product Description

The WIREMOLD COMPANY NMW1 is a 5-foot plastic wire channel designed to route and protect low-voltage and branch-circuit wiring along walls, baseboards, and other flat surfaces. The two-piece base-and-cover design snaps together for clean, professional wire management in commercial and residential settings. At 1-5/16 inches wide and 3/8 inches deep, the channel provides sufficient capacity for THHN conductors sized 10 AWG through 14 AWG, 7 AWG through 12 AWG, or up to two RG59/U coaxial cables. Electricians and low-voltage installers rely on this style of surface raceway to meet code requirements where in-wall wiring is not practical.

The NMW1 is suited for surface wiring applications in offices, retail spaces, and residential rooms where fishing wire through walls is not an option. Typical installations include routing branch circuits or data and A/V cabling along baseboards or chair rails. The white finish blends with standard interior trim. Each unit ships as a single 5-foot section consisting of a base and a cover, allowing installers to cut to length as needed on the job site.

Key Features

• Two-piece base-and-cover construction for easy wire insertion and secure closure
• Accepts 10-14 AWG or 7-12 AWG THHN wire, or 2 RG59/U coaxial cables
• 5-foot section length — field-cuttable to fit any run
• 1-5/16 inches wide by 3/8 inches deep interior channel profile
• White plastic finish suitable for standard interior environments
• Sold individually; package quantity of 20 available per UoM (EA)

Compatibility

Designed as an OEM-style surface raceway channel for use with standard residential and light commercial surface wiring systems requiring THHN conductors or coaxial cable management.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC Article 386 covering surface metal and nonmetallic raceways. De-energize any circuits in the work area before pulling or connecting conductors. The base is secured to the mounting surface first, wires are laid in, and the cover snaps into place — do not exceed the stated wire fill capacity for the channel. Cut sections to length using a fine-tooth saw or raceway cutter for clean, burr-free ends.

Technical Specifications

• Length: 5 feet
• Width: 1-5/16 inches
• Depth: 3/8 inches
• Material: Plastic
• Color: White
• Number of Parts: 2 (Base and Cover)
• Wire Compatibility: 10-14 AWG or 7-12 AWG THHN, or 2x RG59/U coaxial
• Weight: 13.8 pounds
• Package Quantity: 20 EA

Standard Information

• Brand: WIREMOLD COMPANY
• Manufacturer Part Number: NMW1
