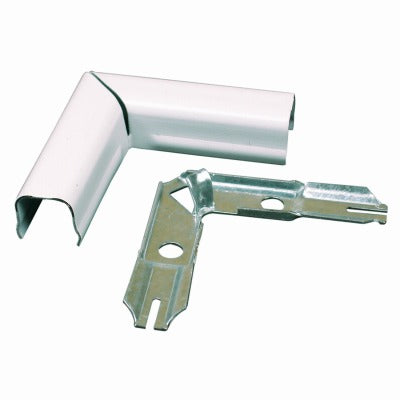

Wiremold Company BWH6 High Capacity Flat Elbow

Product Description

The WIREMOLD COMPANY BWH6 is a white metal flat elbow designed for high-capacity raceway systems. It allows a left or right 90-degree turn on a flat surface, redirecting wiring runs along walls, ceilings, or floors without breaking the raceway profile. This fitting is a standard component in surface-mounted wiring management installations and is typically handled by licensed electricians during commercial or residential retrofit work. The metal construction provides durability, and the white finish matches coordinating raceway components for a clean, finished appearance.

This flat elbow is used where a raceway run must change direction horizontally on a flat surface. It is suited for surface wiring installations in offices, retail spaces, classrooms, and other environments where concealed wiring is not practical. The high-capacity designation indicates compatibility with larger raceway channels that carry greater wire fill. Electricians use this fitting during new surface wiring runs or when extending existing raceway systems.

Key Features

• Enables left or right 90-degree turns on flat surfaces within a raceway system
• High-capacity sizing accommodates larger wire fill raceway channels
• White metal construction for durability and a finished appearance
• Sold in a package quantity of 5 per unit of measure

Compatibility

Designed as an OEM-style fitting for use with high-capacity metal surface raceway systems requiring flat 90-degree directional changes.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements for surface metal raceways. Power should be de-energized and locked out at the panel before working on or near any wiring inside the raceway. Secure the elbow fitting to the raceway base before attaching the cover to ensure proper alignment. Do not exceed the wire fill capacity specified for the raceway channel being used.

Technical Specifications

• Material: Metal
• Color: White
• Turn Angle: 90 degrees
• Weight: 1.01 pounds
• Package Quantity: 5

Standard Information

• Brand: WIREMOLD COMPANY
• Manufacturer Part Number: BWH6
