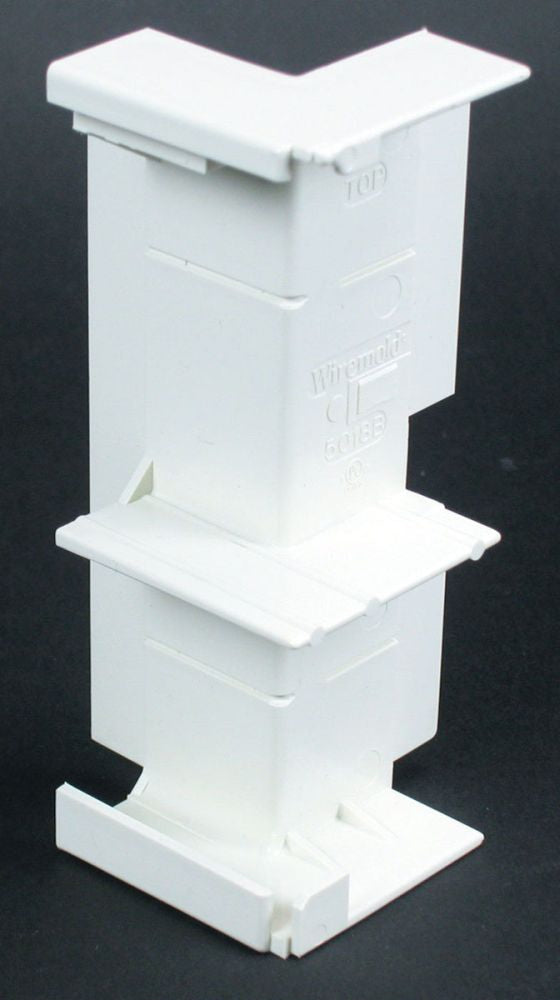

Wiremold 5018B External Base Elbow Raceway Fitting

Product Description

The WIREMOLD 5018B is an external base elbow fitting designed for use with Wiremold surface raceway systems. It provides a clean, code-compliant transition at the base of a wall run, directing raceway from a vertical to a horizontal orientation at floor level. Electricians and low-voltage installers use this fitting when routing cables along walls where the raceway meets the floor or baseboard. The fitting maintains the raceway profile for a finished appearance and is part of the coordinated 5000 series accessory family.

This external base elbow is suited for commercial and residential surface wiring applications where conduit cannot be run inside walls. It is commonly installed in retrofit wiring projects, office buildouts, and facilities requiring accessible cable management. The fitting integrates with compatible 5000 series raceway and other 5000 series fittings to form a complete surface wiring system.

Key Features

• External base elbow design transitions raceway from vertical wall run to horizontal at floor level
• Part of the Wiremold 5000 series accessory system for consistent profile and finish
• Supports neat, code-compliant surface wiring installations without in-wall routing
• Compact footprint suited for tight base transitions in commercial and residential spaces

Compatibility

Designed as an OEM-style fitting for use with Wiremold 5000 series surface raceway systems in standard surface wiring installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for surface metal or nonmetallic raceways. De-energize all circuits in the work area before installing or modifying raceway fittings. Secure the fitting to the raceway base per the manufacturer assembly sequence before pulling conductors. Do not exceed the fill capacity of the raceway system when routing cables through the elbow.

Technical Specifications

• UPC: 78677605033
• Length: 7 inches
• Width: 5.5 inches
• Height: 5 inches
• Weight: 0.15 pounds

Standard Information

• Brand: WIREMOLD
• Manufacturer Part Number: 5018B
