Wiremold 1528 Raceway Utility Box

Product Description

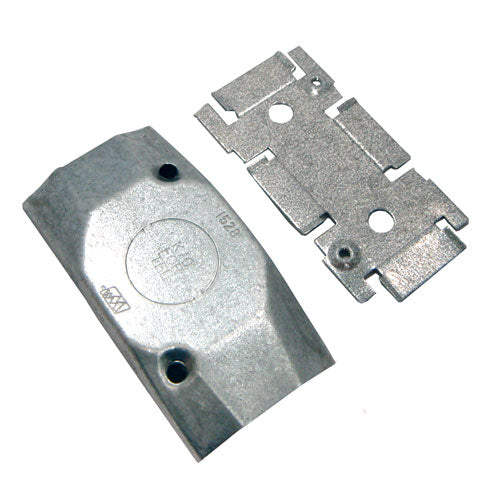

The WIREMOLD 1528 is a utility box designed for use with the 1500 series overfloor raceway. It can be used as a cross, tee, or straight through to terminate a run. Base and cover each have 1/2" trade size KO. Two 1500WC wire clips are included.

• Base and cover each have 1/2" trade size KO

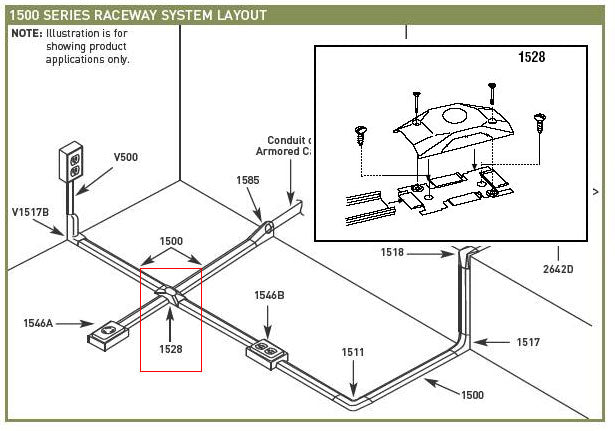

• May be used as a cross, tee, straight through or to terminate run
• Includes two 1500WC Wire Clips

Product Highlights

The Wiremold 1528 utility box is ideal for commercial, educational, and industrial environments.

Product Information

Standard Information

• Brand: WIREMOLD
• Manufacturer Part Number: 1528
• Country of Origin: United States

Technical Specifications

• Approval: UL (Canada and US), CSA
• Depth REF: 0.6 IN
• Finish: Galvanized
• Manufacturer Name: Wiremold
• Material: Steel
• Product UPC: 786776082876
• Type: Utility Box
• Used On: 1500 Series Overfloor Raceway
• Width: 1-21/32 Inch
• Product Series: 1500 Series
• Application Sector: Commercial
• Product Line: Wiremold
• Country Of Origin: United States
• Installation Location: On Wall
• Standard: cULus Listed Underfloor Raceways: File E4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Meets Article 386 of NEC. Meets Section 12-1600 of CEC.
• UPC Number: 786776082876
• Product Length US: 3.25 in
• Product Width US: 1.656 in
• Knockout Size: 1/2 in
• cULus ListingNumber: E41751
• cULus Listed: Yes
• RoHS Compliant: Yes
• Indoor/Outdoor: Indoor
• Is Pre-Wired: No
• Voltage: 600.0 V
• Series: Steel Pancake Overflow Raceway - 1500 Series
• Includes: Two 1500WC Wire Clips
• Height (In.): 0.63
• Length (In.): 3.25
• Standards: UL Listed and CSA Certified
• Component: Utility Box
• For Use With: 1500 Raceways; 2600 Raceways
• Features: Flat Proble; Full Line of Fittings; Installs in Open Space Areas; Unpainted
• Manufacturer Part Number: 1528
• UNSPSC: 39121203
• ECCN: EAR99
• Brand: Wiremold
• ADI Part Number: 6W-1528
• Brand Name: Wiremold by Legrand
• Manufacturer: Legrand Group
• Package Length: 6.300000000
• Product Name: 1500 Series Overfloor Raceway Utility Box
• Product Type: Raceway Utility Box
• TAA Compliant: Yes
• Compatibility: 1500, 2600 Steel Pancake Overfloor Raceway
• Height: 5/8 in
• Length: 3-1/4 in
