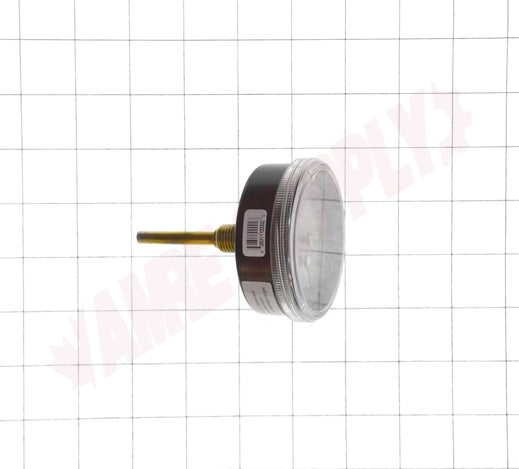

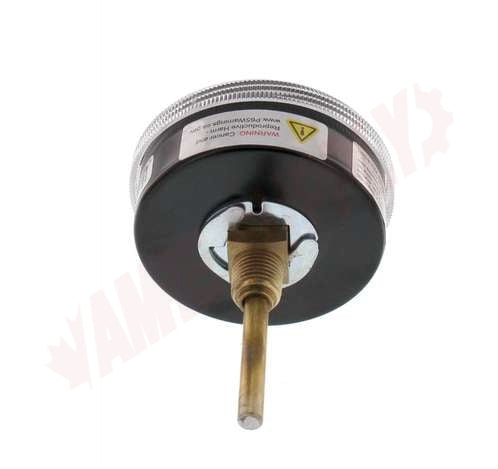

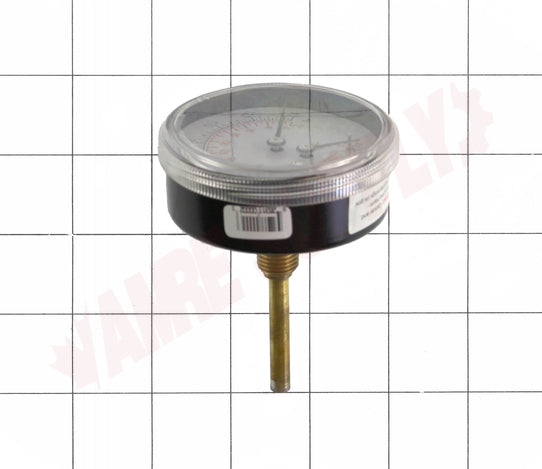

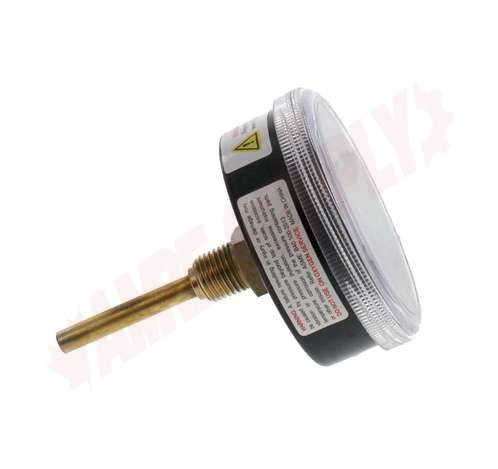

WINTERS TTD404 Tridicator

Product Description

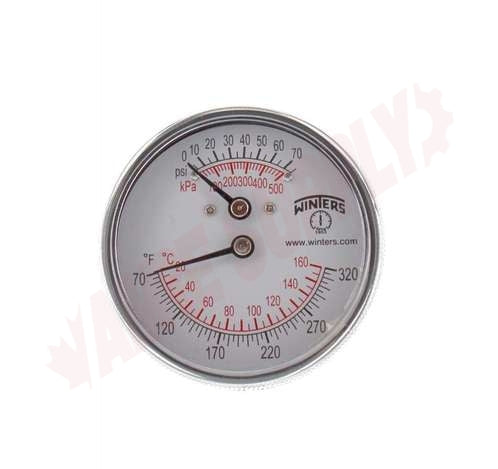

The WINTERS TTD404 Tridicator is designed to measure both pressure and temperature simultaneously. It features a two point five inch (63 mm) aluminum dial showcasing dual scales in both Fahrenheit and Celsius. The device employs brass wetted parts along with a phosphor bronze tube and a sturdy steel case finished in black. The acrylic threaded lens provides durability and clarity.

• Measures temperature and pressure with a single unit.
• Dual temperature scales enhance usability.
• Complies with ASME Boiler Code Section IV HG-612.

Product Highlights

The WINTERS TTD404 Tridicator is ideal for HVAC applications, compatible with TST thermowells and offers precise measurements.

Product Information

Standard Information

• Brand: WINTERS
• MPN: TTD404

Technical Specifications

• Dial: Two point five inch (63 mm) aluminum, painted white
• Case: Steel, painted black
• Lens: Acrylic, threaded
• Ring: Three inch (75 mm) chrome
• Stem: Brass
• Socket: Brass
• Tube: Phosphor bronze
• Movement: Brass and phosphor bronze
• Sensing Element: Temperature: Bi-metallic coil, Pressure: Bourdon tube
• Pointer: Aluminum, anodized black
• Welding: Tin-alloy solder
• Pressure Limit: Seventy-five percent of full scale range
• Ambient Temperature: Twenty-three to one hundred twenty-two degrees Fahrenheit (-5 to 50 degrees Celsius)
• Process Temperature: Seventy-five percent of full scale range
• Accuracy: Pressure: plus or minus three- two- three percent, Temperature: plus or minus three percent of full scale
• Enclosure Rating: IP50
