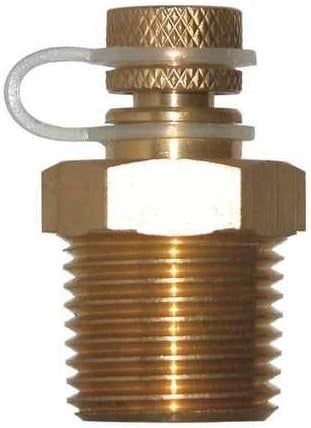

WINTERS Winters STP002 Test Plug (Pete's Plug) 1/2 in NPT
WINTERS Winters STP002 Test Plug (Pete's Plug) 1/2 in NPT

Winters STP002 Test Plug (Pete's Plug) 1/2 in NPT

Brand: WINTERS
SKU: STP002
Availability: In Stock

Ships same day if ordered by 12 pm

$23.35
$23.35
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Winters STP002 test plug (Pete's plug) is a 1/2 in NPT pressure test plug used for pressure or thermometer ports. It has a brass body and cap with an NBR (Buna-N) sealing core and is rated for 0 to 1000 psi operating pressure. Temperature range is -40 to 302 Degrees F; overall length is 1.5 in with a 0.693 in insertion length, and it meets ASME B1.20.1 and is CRN registered for non-potable water applications.

  • Brass body and cap with NBR (Buna-N) sealing core
  • Pressure range 0 to 1000 psi; operating temperature -40 to 302 Degrees F; ASME B1.20.1 compliant and CRN registered
  • 1/2 in NPT process connection; overall length 1.5 in; insertion length 0.693 in

Product Highlights

1/2 in NPT brass test plug, 0–1000 psi, Buna-N seal, 1.5 in overall length

Product Information

Standard Information

  • Brand: WINTERS
  • Manufacturer Part Number: STP002
  • Country of Origin: China

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications
Brand
Winters
MPN
STP002
Product Type
Test Plug (Pete's Plug)
Series
STP
Connection Type
NPT
Connection Size
1/2 in NPT
Pressure Range
0 to 1000 psi
Maximum Pressure
1000 psi
Maximum Operating Temperature
302 Degrees F
Minimum Operating Temperature
-40 Degrees F
Body Material
Brass
Cap Material
Brass
Core Material
NBR (Buna-N)
Wetted Parts
Brass, Buna-N
Overall Length
1.5 in
Insertion Length
0.693 in
Standards
ASME B1.20.1; CRN registered
Intended Application
Non-potable water applications
Hazmat
N
