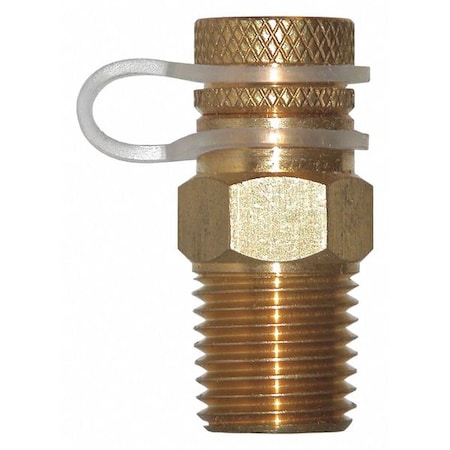

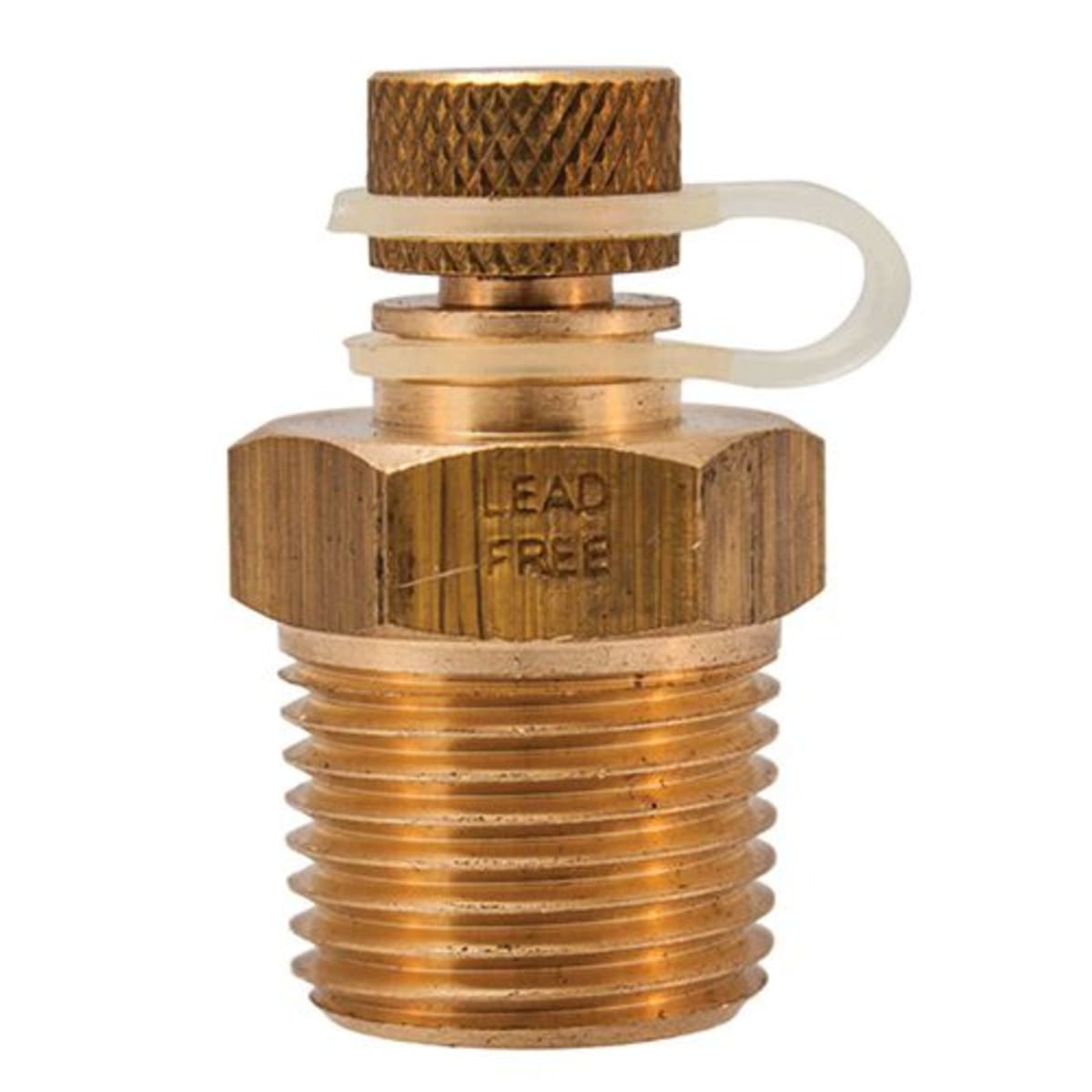

Winters STP001 Test Plug 1/4 inches x NPT

Product Description

The WINTERS STP001 is a pressure test plug with a 1/4" NPT connection. Designed for non-potable water applications, it features a brass body and cap with Buna-N wetted parts. It is compliant with ASME B1.20.1 and CRN registered. It can be used for pressure testing in various industrial applications.

• Maximum pressure of 1,000 psi
• Operating temperature range from -40 to 302 Degrees F
• Constructed with brass body and cap

Product Highlights

The WINTERS STP001 test plug is suitable for pressure testing with a 1/4" NPT connection, brass body, and Buna-N wetted parts.

Product Information

Standard Information

• Brand: WINTERS
• Manufacturer Part Number: STP001
• Country of Origin: China

Technical Specifications

• Stem_Length: 2.5"
• Connection_Type: NPT
• Series: STP
• Standards: ASME B1.20.1 Compliant, CRN Registered
• Max. Temp.: 302 Degrees F
• Cap Material: Brass
• Product Type: Test Plug for Non-Potable Water Applications
• Wetted Parts: Buna-N
• Body Material: Brass
• Core Material: NBR (Buna N)
• Pressure Range: 0 to 1000 psi
• Connection Size: 1/4 in NPT
• Insertion Length: 0.669 in
• Maximum Pressure: 1,000 psi
• Process Connection: 1/4 in NPT
• Process Connection Size: 1/4 in
• Process Connection Type: NPT
• Maximum Operating Temperature: 302 Degrees F
• Minimum Operating Temperature: -40 Degrees F
• Country of Origin (subject to change): China
• Length: 1 13/32 in
• Overall Length: 1.4 in
