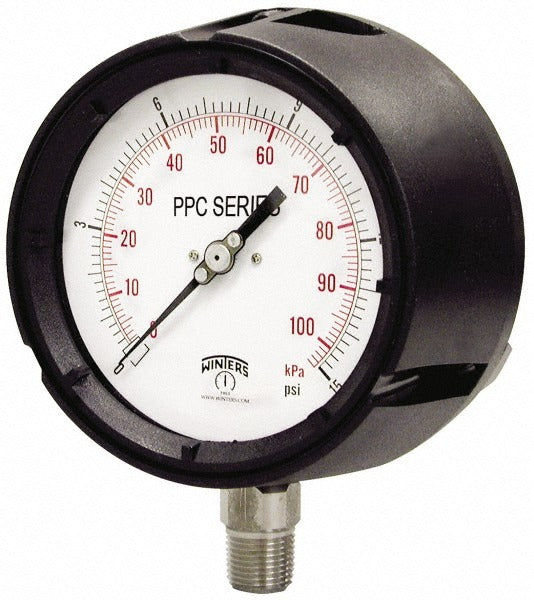

Winters PPC5060 Pressure Gauge 4.5 in Dial Lower Mount

Product Description

The WINTERS PPC5060 is an analog pressure gauge designed for industrial and commercial fluid systems where accurate pressure monitoring is critical. It features a 4.5-inch thermoplastic case dial for easy readability and stainless steel wetted parts that resist corrosion in demanding media. The gauge mounts from the lower port using a 0.5-inch threaded connection, making it suitable for panel or pipe installations. It operates with no liquid fill, keeping the design simple and maintenance-free. Accuracy is rated at 0.5 percent of scale, which meets the requirements for most process, HVAC, and plumbing monitoring applications. Licensed trades including plumbers, HVAC technicians, and mechanical contractors typically specify and install this gauge.

The PPC5060 is suited for residential and light commercial applications where a reliable, readable pressure gauge is needed on water, air, or compatible fluid systems. The lower-mount configuration is commonly used when the gauge is installed on a vertical pipe run or a bottom-tapped manifold. The 4.5-inch dial size makes it a practical choice for panel boards or equipment rooms where technicians need to read pressure from a short distance. No external filler fluid is required, simplifying installation and reducing long-term maintenance concerns.

Key Features

• 4.5-inch analog dial for clear, at-a-glance pressure readings
• Stainless steel wetted parts for corrosion resistance in compatible fluid systems
• Thermoplastic case for lightweight durability in light commercial and residential installs
• 0.5-inch lower-mount threaded connection for standard pipe installations
• No-fill design eliminates glycerin or silicone fill maintenance
• 0.5 percent of scale accuracy meets typical process and mechanical system requirements

Compatibility

Designed as an OEM-style replacement or new-install analog pressure gauge for residential and light commercial plumbing, HVAC, and process piping systems requiring a lower-mount, 0.5-inch threaded connection with a 4.5-inch dial.

Installation Notes

Installation should be performed by a licensed plumber or mechanical contractor following applicable IPC and local mechanical codes. Depressurize and isolate the system completely before connecting or removing any pressure gauge. Use thread sealant tape or pipe compound rated for the system media on the male threads before installation. Do not overtighten the threaded connection, as this can crack the thermoplastic case or damage the bourdon tube.
