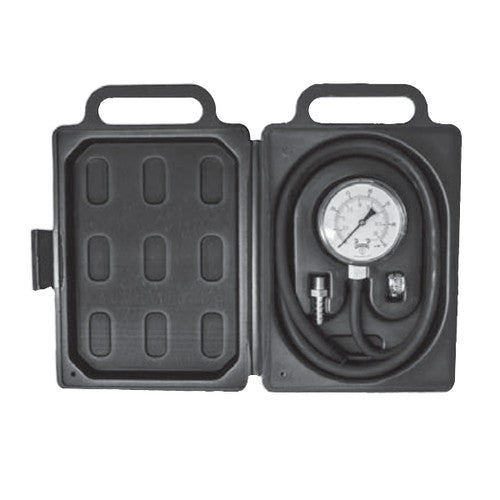

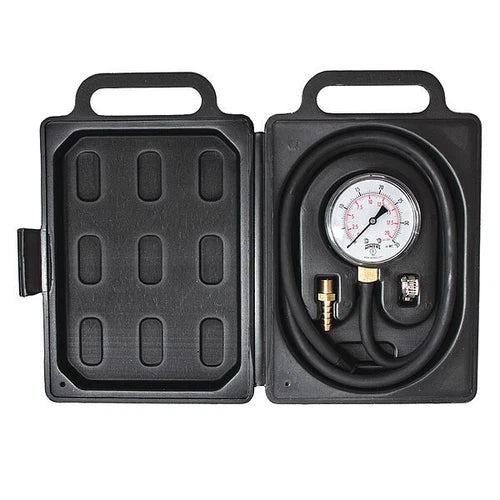

WINTERS PLT35 Pressure Gauge Test Kit

Product Description

The WINTERS PLT35 Pressure Gauge Test Kit is designed for accurate low-pressure measurement. This kit features a two point five inch dial gauge that is protected by a durable steel case painted black. The gauge includes a clear polycarbonate lens for visibility and is easy to read with its red and black markings.

• Includes a brass hose barb connection with gear clamp
• Utilizes a phosphor bronze diaphragm for reliability
• Compliant with ASME B40.100 standards

Product Highlights

This pressure gauge kit is ideal for hydraulic applications and is commonly used in hydraulic shoring for long wall mining.

Product Information

Standard Information

• Brand: WINTERS
• MPN: PLT35

Technical Specifications

• Dial: 2.5 inches (63mm), white aluminum with red and black markings
• Case/Ring: Steel, painted black
• Lens: Polycarbonate
• Connection: Brass hose barb (1/4), gear clamp included
• Diaphragm Element: Phosphor bronze
• Movement: Engineering plastic upper and lower plate with brass pinion and sector, includes zero adjustment
• Ambient Temperature: -4°F to 150°F (-20°C to 65°C)
• Accuracy: +/- 3-2-3% ANSI/ASME Grade B
• Enclosure Rating: IP52
• Tube Nipple: Rubber, 0.256 inches (6.5mm) ID x 0.472 inches (12mm) OD x 1.339 inches (34mm), 1/4 NPTM x 1/4 hose barb
• Case Material: Plastic blow molded, dimensions: 5.75 x 8.25 inches (146mm x 210mm)
• Hose Tube: Rubber, 3 feet (91cm) in length; 0.197 inches (5mm) ID x 0.315 inches (8mm) OD
• Accessory: Easy to install clamp
