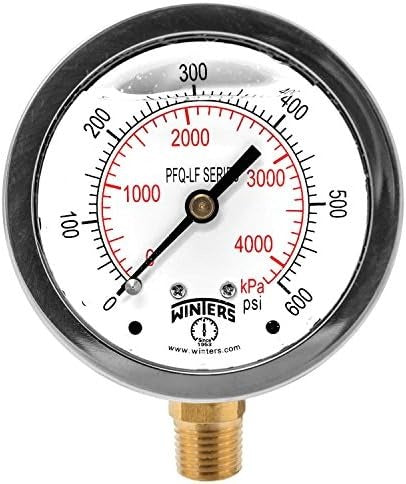

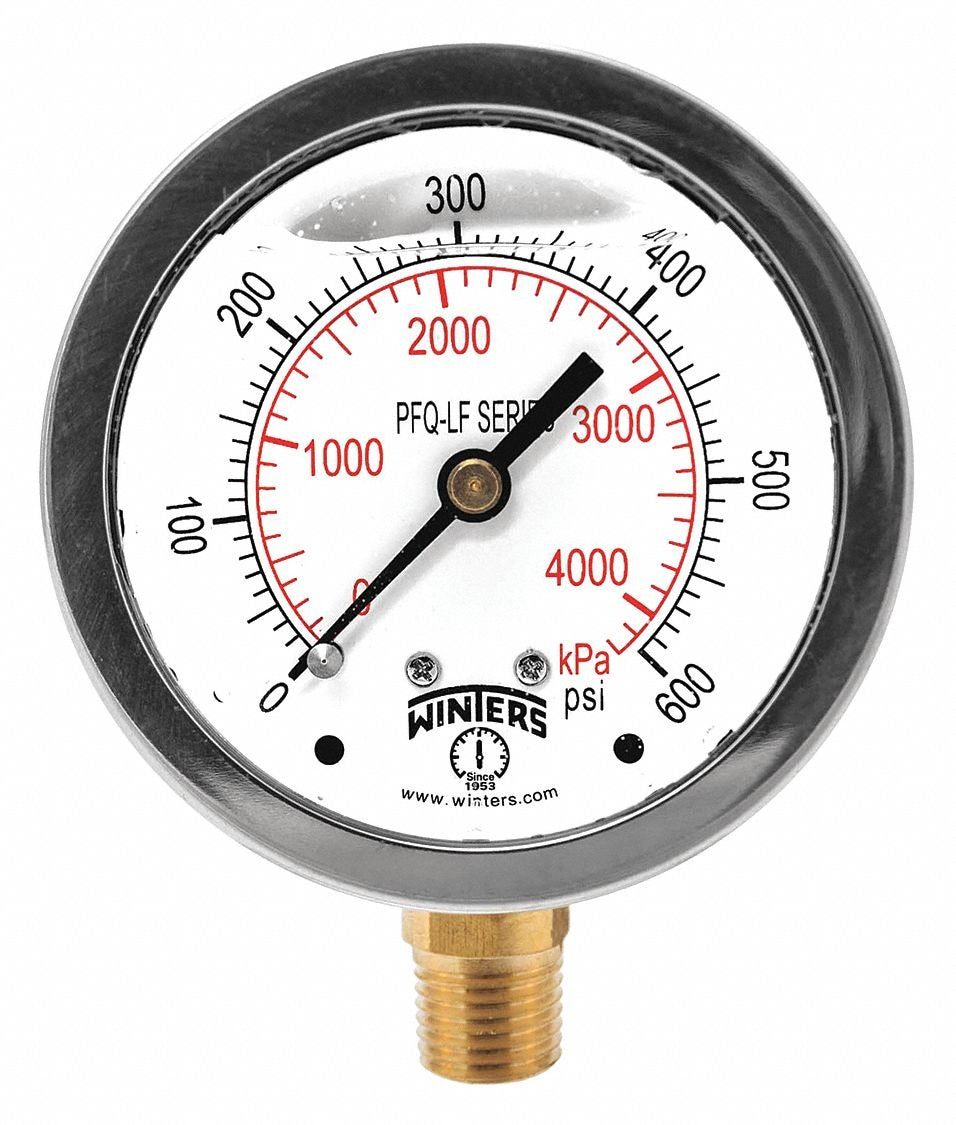

Winters PFQ808LF Pressure Gauge 2-1/2 in Dial (0 to 600 psi)

Product Description

Winters PFQ808LF is a 2-1/2 inch pressure gauge with a 0 to 600 psi range designed for general air and liquid pressure measurement. The gauge features a stainless steel case, glycerin liquid fill to dampen vibration, and an IP65 environmental rating. It provides +/-1.50% accuracy, a bottom process connection, and dual psi/kPa scales for HVAC, pump, compressor, and plumbing applications.

• 2-1/2 inch dial, range 0 to 600 psi (dual psi and kPa scales); nominal dial diameter 63 mm
• 304 stainless steel case with glycerin-filled movement for vibration and pulsation resistance; IP65 / NEMA 4 rating
• Bottom process connection with 1/2 in connection diameter, bourdon tube sensor, accuracy +/-1.50%, over-pressure limit 25%

Product Highlights

Lead-free compatible construction, liquid-filled 2.5 in dial, 0–600 psi range, +/-1.50% accuracy, IP65 protection

Product Information

Standard Information

• Brand: WINTERS
• Manufacturer Part Number: PFQ808LF
• Country of Origin: China
