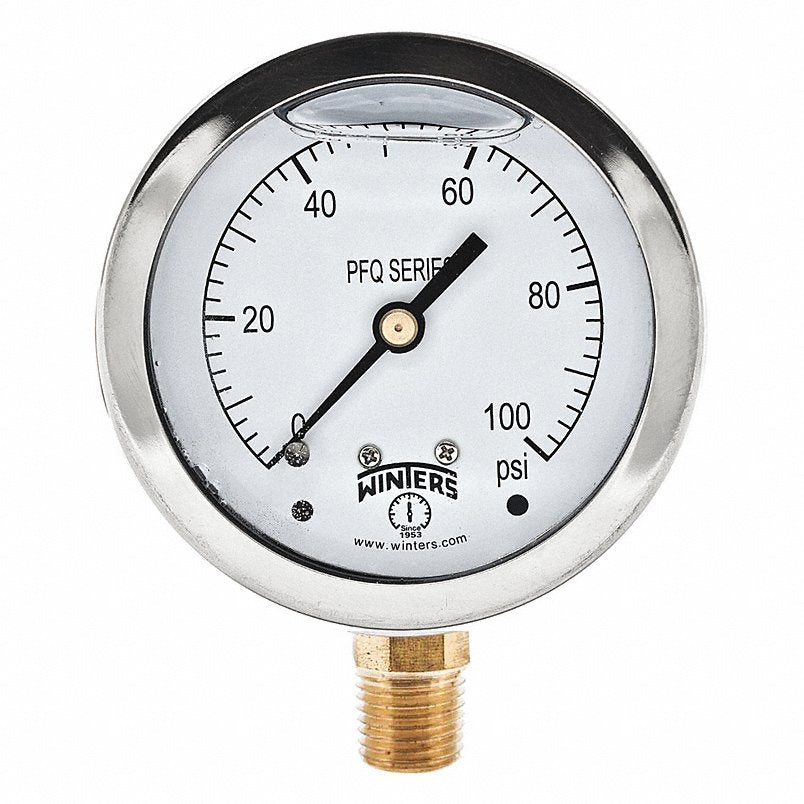

WINTERS PFQ804R1 Liquid Filled Brass Gauge

Product Description

The WINTERS PFQ804R1 is a liquid-filled pressure gauge designed for various applications. It has a two point five inch dial with black and red markings against a white aluminum face. This gauge ranges from zero to one hundred psi or kPa. Its construction includes a brass socket with a one fourth inch bottom connection and features internal components made of brass, lead-free brass, or stainless steel. Glycerin is used in the filling to reduce vibration effects.

• Designed for high vibration environments
• Includes a stainless steel case and a polycarbonate lens
• CRN registered and NSF-61-372 certified for potable water systems

Product Highlights

This pressure gauge is suitable for use in pumps, hydraulic presses, compressors, and pneumatic equipment.

Product Information

Standard Information

• Brand: WINTERS
• MPN: PFQ804R1

Technical Specifications

• Range: 0 to 100 psi/kPa
• Dial: 2.5 inches (6.35 cm), white aluminum with black and red markings
• Case: AISI 304 stainless steel
• Lens: Polycarbonate
• Socket: Brass
• Connection: 1/4 inch (0.64 cm) bottom
• Fill Liquid: Glycerin
• Accuracy: ±1.5% of full scale value
• Working Pressure: Maximum 75% of full scale
• Ambient/Process Temperature: Dry: -40 to 200°F; Glycerin filled: -4 to 150°F
• Enclosure Rating: IP65
