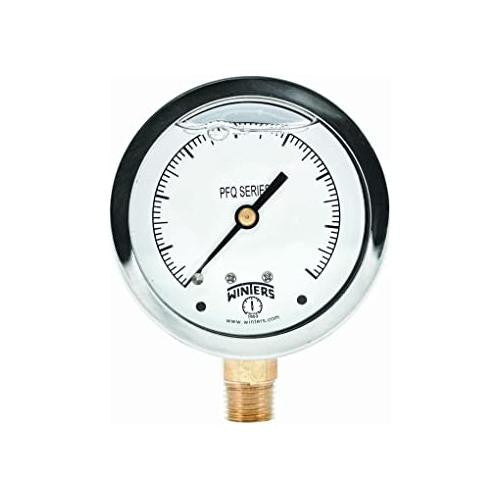

WINTERS PFQ800R1 Pressure Gauge

Product Description

The WINTERS PFQ800R1 is designed for precise pressure measurement in challenging environments. This pressure gauge features a robust liquid-filled AISI 304 stainless steel case, enhancing durability in applications with vibration and pulsation.

• 1/4 NPT bottom connection for easy installation
• Polycarbonate lens with a crimp-on AISI 304 stainless steel ring
• Suitable for pumps, compressors, and pneumatic equipment

Product Highlights

Known for its reliability in various settings, the gauge is ideal for machinery and motors where accurate pressure readings are essential.

Product Information

Standard Information

• Brand: WINTERS
• MPN: PFQ800R1

Technical Specifications

• Dial: 2.5 inches
• Case: AISI 304 stainless steel
• Lens: Polycarbonate
• Ring: AISI 304 stainless steel, crimp-on
• Socket: AISI 316 stainless steel with restrictor screw
• Connection: 1/4 NPT
• Fill Liquid: Glycerin
• Bourdon Tube: AISI 316 stainless steel, C or coil shaped
• Movement: Stainless steel
• Pointer: Aluminum, anodized black
• Welding: TIG
• Over-pressure Limit: 25% for pressures up to 1,450 psi
• Socket Gasket: Buna N
• Fill Plug: Buna N
• Lens Ring Gasket: Silicone rubber
• Working Pressure: Maximum 75% of full scale value
• Ambient/Process Temperature: -40°F to 200°F (dry), -4°F to 150°F (glycerin filled)
• Accuracy: +/-1.5% of full scale value
• Enclosure Rating: IP65
