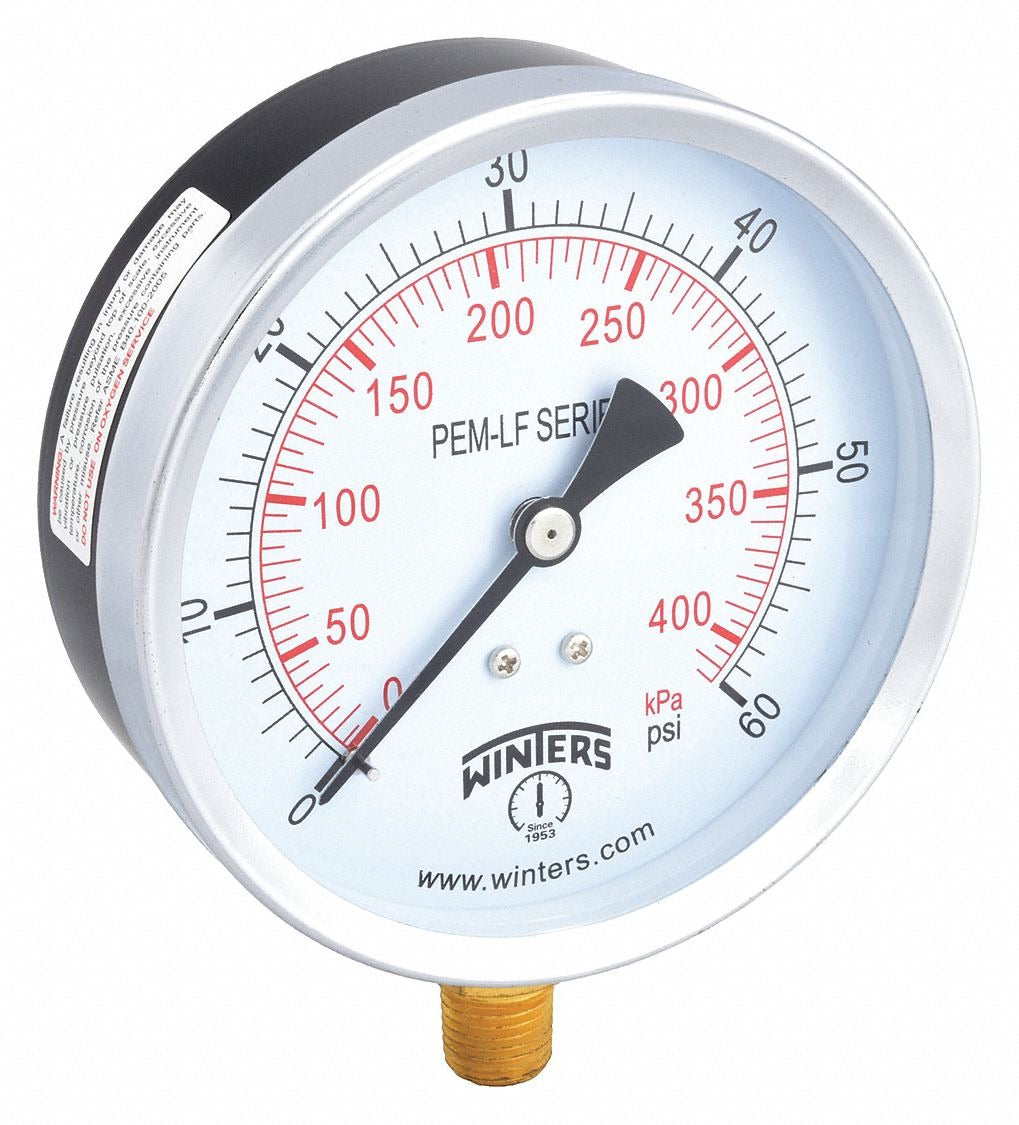

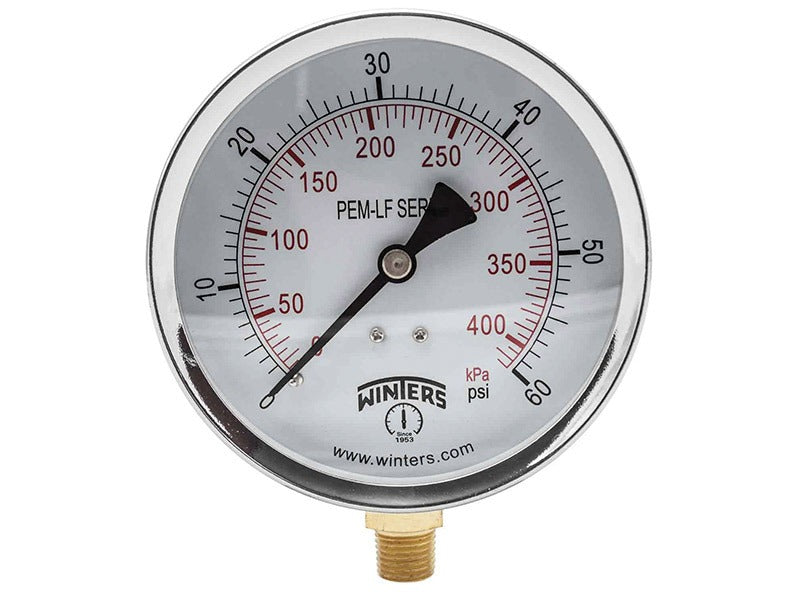

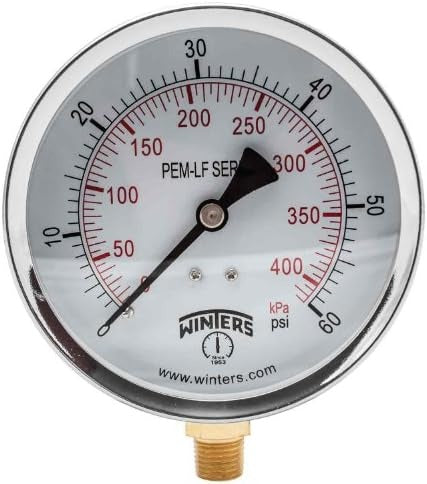

Winters PEM222LF Lead-Free Pressure Gauge 4 in Dial 6 Pack

Product Description

The Winters PEM222LF is a lead-free pressure gauge (MPN PEM222LF) with a 4 in dual-scale dial that measures 0 to 60 psi. It uses a phosphor bronze Bourdon tube sensor and lead-free brass wetted parts, with a 1/4 in NPT male bottom connection for stem mounting. The gauge features a painted steel case, glass lens, accuracy ±3-2-3% (Grade B), IP52 enclosure rating, and an over-pressure limit of 25% of full scale.

• Lead-free wetted parts: lead-free brass socket and phosphor bronze Bourdon tube sensor
• Measurement: 0 to 60 psi dual-scale (psi/kPa) on a 4 in (100 mm) aluminum dial with 1/4 in NPT male bottom connection
• Construction and ratings: painted steel case, glass lens, accuracy ±3-2-3% (ANSI/ASME Grade B), IP52 enclosure, over-pressure limit 25% of full scale

Product Highlights

Lead-free 4 in dual-scale pressure gauge, 0–60 psi range, 1/4 in NPT bottom connection, IP52 rated.

Product Information

Standard Information

• Brand: WINTERS
• Manufacturer Part Number: PEM222LF
• Country of Origin: China
