Winters Instruments TTD404 2.5 Tridicator Temperature and Pressure Gauge 0-75 PSI

Product Description

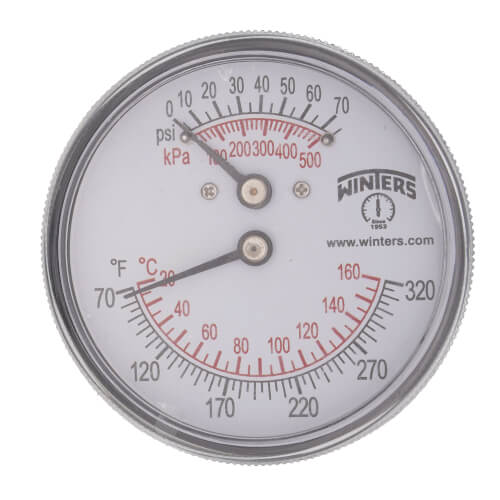

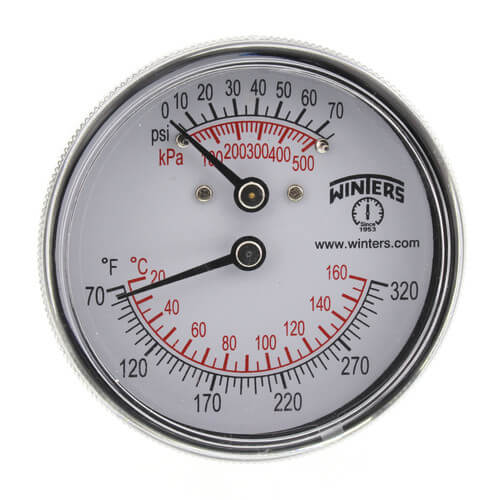

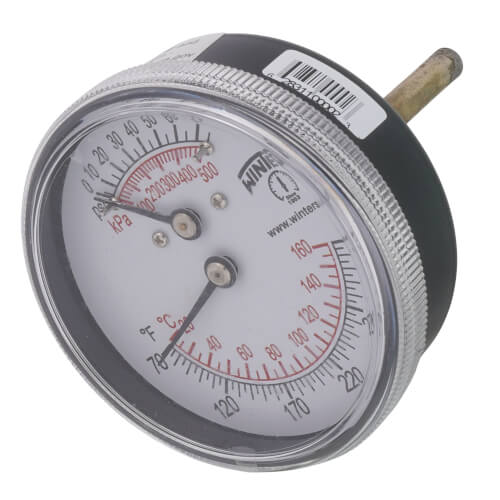

The Winters Instruments TTD404 is a 2.5 inch Tridicator temperature and pressure gauge. This gauge measures both temperature and pressure on a single dial. It features a dual scale that shows both Fahrenheit and Celsius. The gauge has a back connection with brass wetted parts for durability. It is designed for use in hot water and steam systems.

• Measures temperature and pressure on the same dial
• Dual scale in Fahrenheit and Celsius

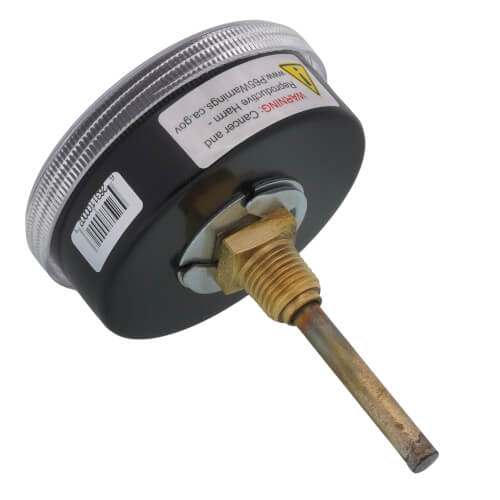

• Back connection with brass components

Product Highlights

This product is ideal for monitoring hot water and steam pressure in boiler systems. It offers accurate readings with a five-year warranty.

Product Information

Standard Information

• Brand: Winters Instruments
• MPN: TTD404

Technical Specifications

• Weight: 0.36
• Dial Size: 2.5 inches
• Max Temp (F): 320°F
• Min Temp (F): 70°F
• Pressure Range: 0 to 75 PSI
• Connection Size: 1/4 inch
• Accuracy: ±3% of Full Scale (Temperature), ±1-2-3% (Pressure)
• Temperature Range: 70°F - 320°F
