Winters Instruments TTD402 Tridicator 0-75 PSI 70 F-320 F

Product Description

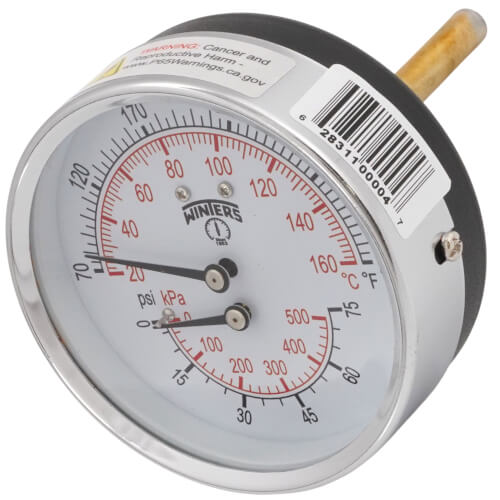

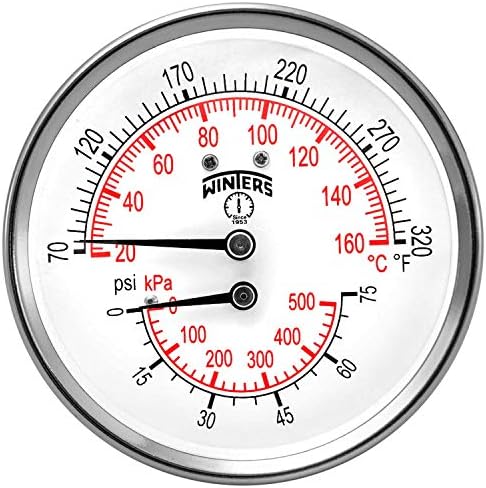

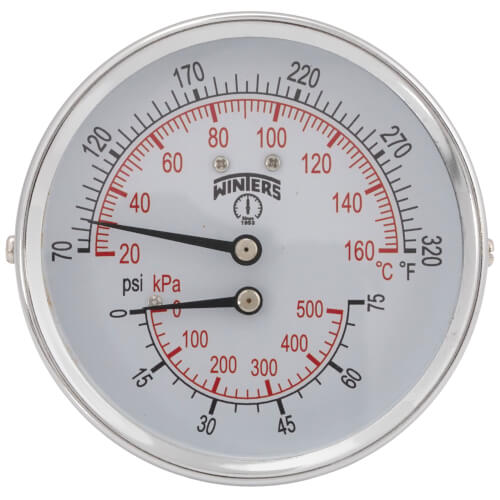

The WINTERS INSTRUMENTS TTD402 Tridicator measures both pressure and temperature on the same dial. It features dual scale ( F & C) and back connection. It has brass wetted parts and multiple pressure and temperature ranges available. It is designed for hot water and steam pressure for boilers.

• Measures both pressure and temperature on the same dial
• 3" (75mm) dials
• Dual scale ( F & C)
• Back connection

Product Highlights

The WINTERS INSTRUMENTS TTD402 Tridicator is ideal for measuring pressure and temperature in boilers and hydronic heating systems.

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: TTD402

Technical Specifications

• Product Type: Tridicator
• Dial Size: 3 in
• Connection Type: NPT
• Connection Size: 1/2 in
• Min Temp (C): 20 C
• Max Temp (C): 160 C
• Min Temp (F): 70 F
• Max Temp (F): 320 F
• Temperature Range (F): 70 F - 320 F
• Max Pressure (PSI): 75
• Type: Dry
• Min Pressure (PSI): 0
• Mount: Back
• Measures: Fahrenheit, Pressure, Celsius
• Series: TTD
• Accuracy: Pressure: 3-2-3%, Temperature: 3% of full scale
• Temperature Rating: 23 to 122 deg F
• Material: Steel
• Color: Black
• Ambient Temperature Rating: 23 to 122 deg F
• Case Color: Black
• Case Height: 4.425 in
• Case Material: Steel
• Case Width: 3.2 in
• Enclosure Rating: IP50
• Lens: GLASS
• Liquid Filled: No
• Manufacturer: Winters Instruments
• Manufacturer #: TTD402
• Pointer: Aluminum, Anodized Black
• Pressure Limit: 75% of full scale range
• Pressure Rating: 0 to 75 psi
• Stem Material: BRASS
• Range: 0-75 PSI/kPa & 70-320 F/C

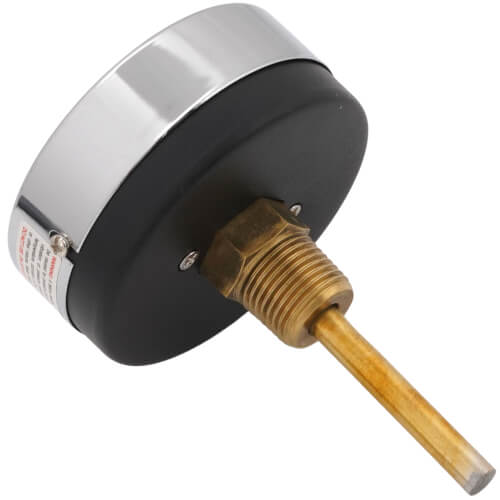

• Connection: 1/2" Center Back
• Weight: 0.85 lbs
• Application Type: Boilers
