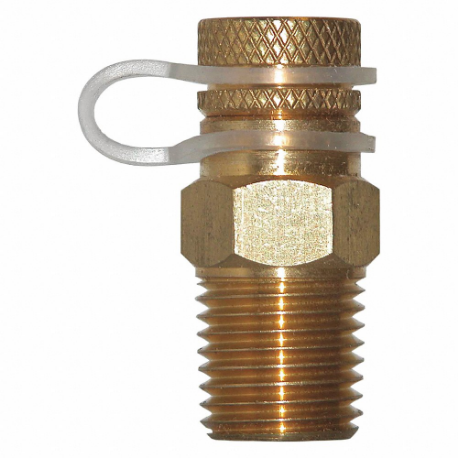

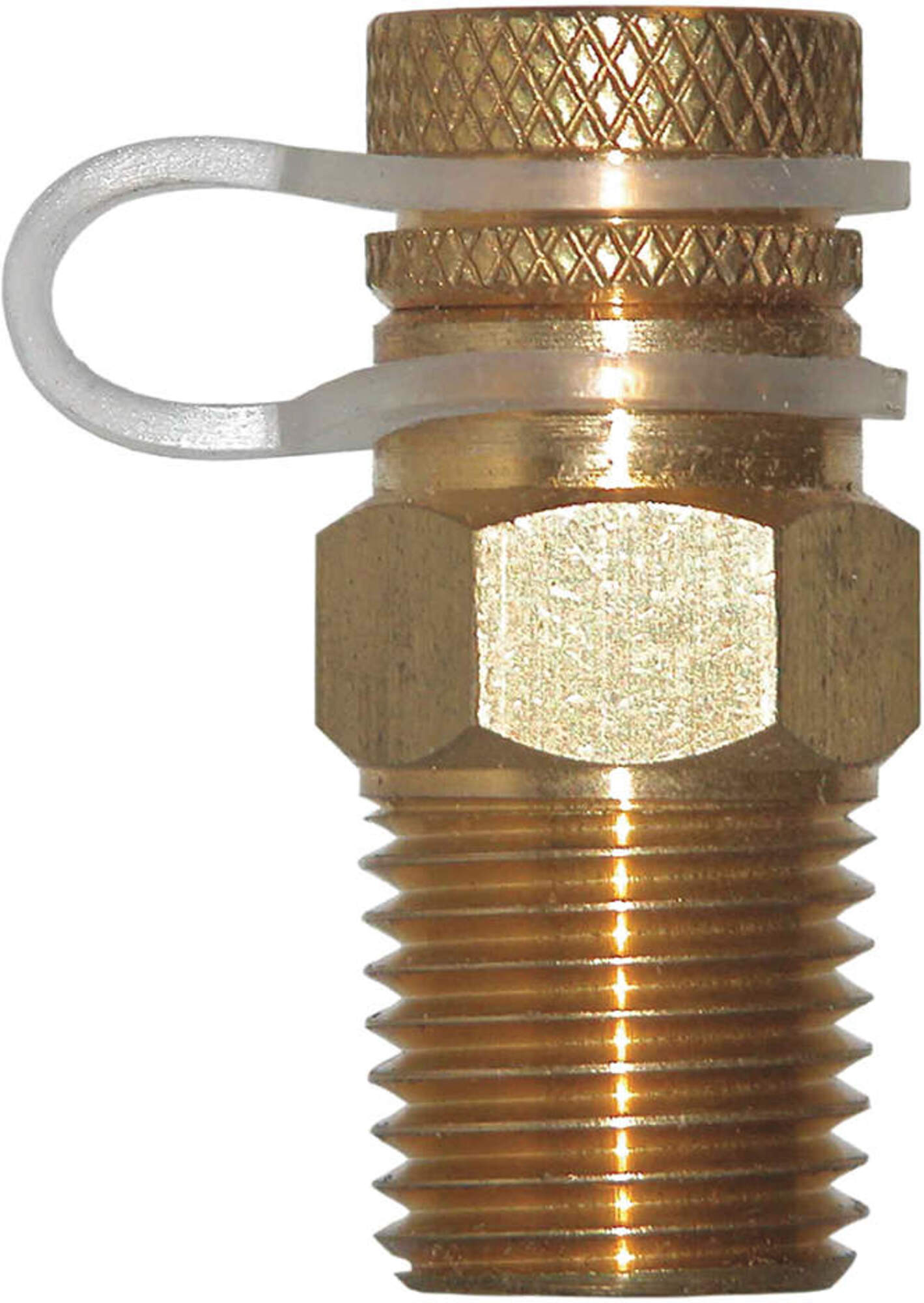

Winters Instruments STP001 Test Plug 1/4 NPT

Product Description

The WINTERS INSTRUMENTS STP001 is a test plug that facilitates quick pressure and temperature readings at recommended test points within a process. It connects to pressure gauges and is opened to facilitate quick readings. It is mainly used in heating, ventilation and air conditioning industries.

• Facilitates quick pressure and temperature readings
• Maximum pressure rating 1,000 psi (6895 kPa)
• Temperature Rating -40°F to 302°F (-40°C to 150°C)

Product Highlights

The WINTERS INSTRUMENTS STP001 test plug provides easy and rapid access to temperature readings when no permanent gauge or thermometer is in place or needed.

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: STP001
• Country of Origin: China

Technical Specifications

• Material/Body: STP: Brass, STP-LF: Lead free brass
• Diaphragm/Core: NBR (Buna N)
• Temperature Rating: -40°F to 302°F (-40°C to 150°C)
• Maximum Pressure Rating: 1,000 psi (6895 kPa)
• Connection: 1/4" NPT or 1/2" NPT
• Type: Test Plug
• Connection Size: 1/4" Male NPT
• Temperature: -40° F - 302° F
• Material: Brass / EDPM
• Application: Facilitates quick pressure and temperature readings at recommended test points within process
• Maximum Pressure: 1000 psi
• Body Material: Brass
• Cap Material: Brass
• Core Material: NBR (Buna N)
• Length: 1-13/32 in
• Max Temperature: 302 Degrees F
• Pressure Range: 0 to 1000 psi
• Item: Test Plug
• Insert Length: 0.669"
• Insertion Length: 0.669"
• Max. Operating Temp.: 302°F
• Min. Operating Temp.: -40°F
• Overall Length: 1 2/5"
• Process Connection: 1/4"
• Process Connection Size: 1/4"
• Process Connection Type: NPT
• Product Type: Test Plug For Non-Potable Water Applications
• Wetted Parts: Buna N
• standard: ASME B1.20.1 COMPLIANT, CRN REGISTERED
