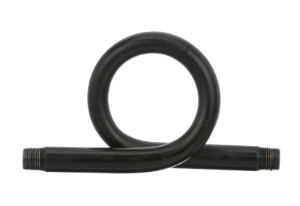

Winters Instruments SSP525-90 Angle Syphon 1/4 Inch

Product Description

The WINTERS INSTRUMENTS SSP525-90 is a 1/4-inch angle iron syphon designed to protect pressure gauges, diaphragm seals, and transmitters on steam service applications. By forming a water seal between the process steam and the measuring instrument, the syphon prevents hot steam from contacting the gauge internals, extending instrument service life and maintaining accurate readings. Available in brass and steel for non-corrosive service as well as stainless steel for corrosive environments, this fitting is a standard component in steam instrumentation piping. Installation is performed by licensed pipefitters or instrumentation technicians.

The SSP525-90 is suited for steam systems in industrial, commercial, and process plant environments where pressure instrumentation must be isolated from direct steam contact. The 90-degree angle configuration allows for convenient gauge orientation when the process connection is in a horizontal or vertical run. It is used upstream of pressure gauges, diaphragm seals, and pressure transmitters wherever live steam is present in the sensing line.

Key Features

• Prevents hot steam from entering connected pressure gauges, diaphragm seals, or transmitters
• 90-degree angle configuration for flexible gauge orientation
• Available in brass and steel for non-corrosive applications
• Available in stainless steel for corrosive service environments
• CRN registered for use in Canadian pressure vessel jurisdictions
• 1-year manufacturer warranty

Compatibility

Designed as an OEM-style replacement or new-installation syphon fitting for use with standard pressure gauges, diaphragm seals, and pressure transmitters on steam service lines with a 1/4-inch process connection.

Installation Notes

Installation should be performed by a qualified pipefitter or instrumentation technician in accordance with applicable pressure piping codes. Isolate and depressurize the steam line fully before making or breaking any instrumentation connections. Apply thread sealant rated for steam service to all threaded joints. Verify the syphon is filled with water before placing the instrument in service to ensure the steam seal is established.
