Winters Instruments SSN515 Brass SSN Water Snubber 1/4\"

Product Description

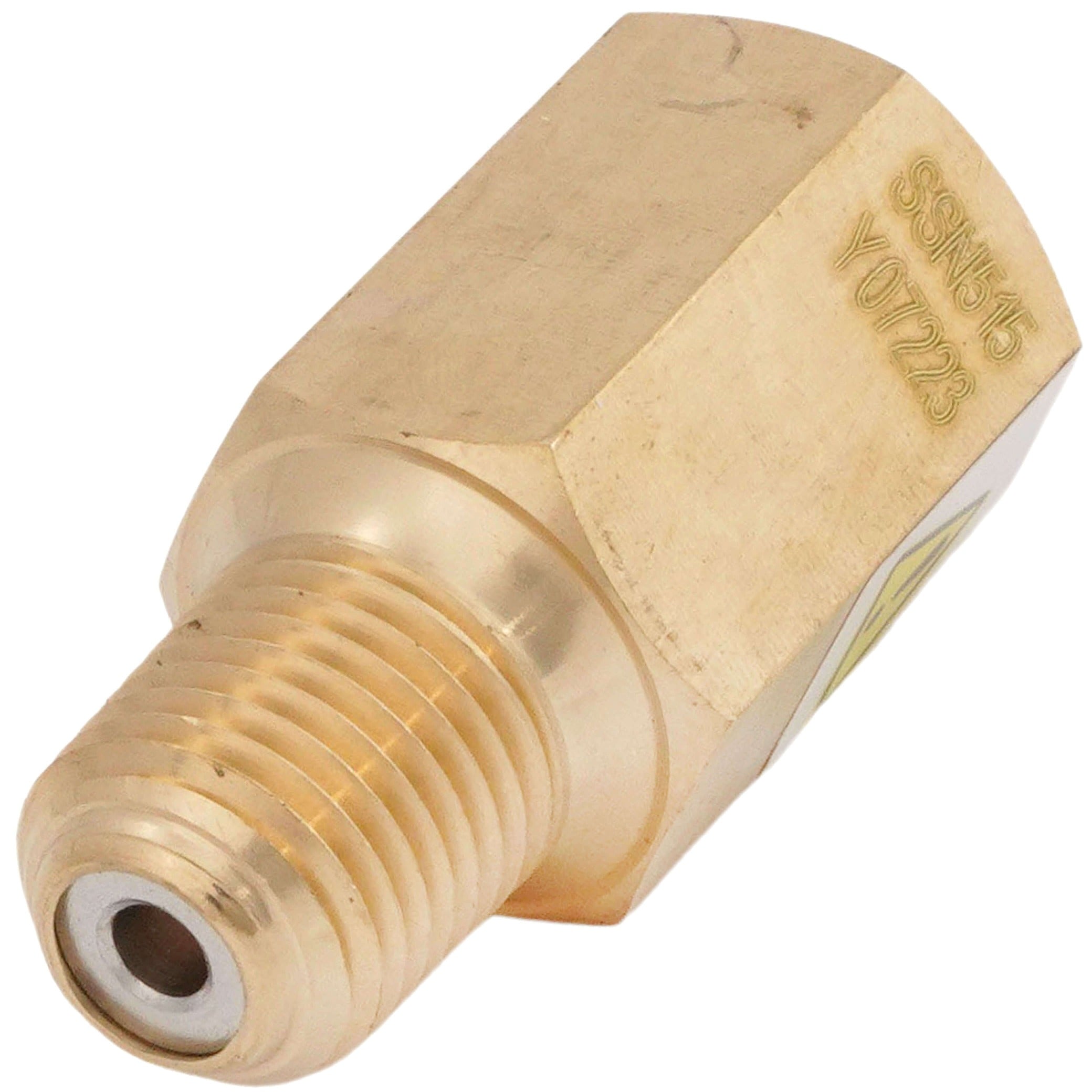

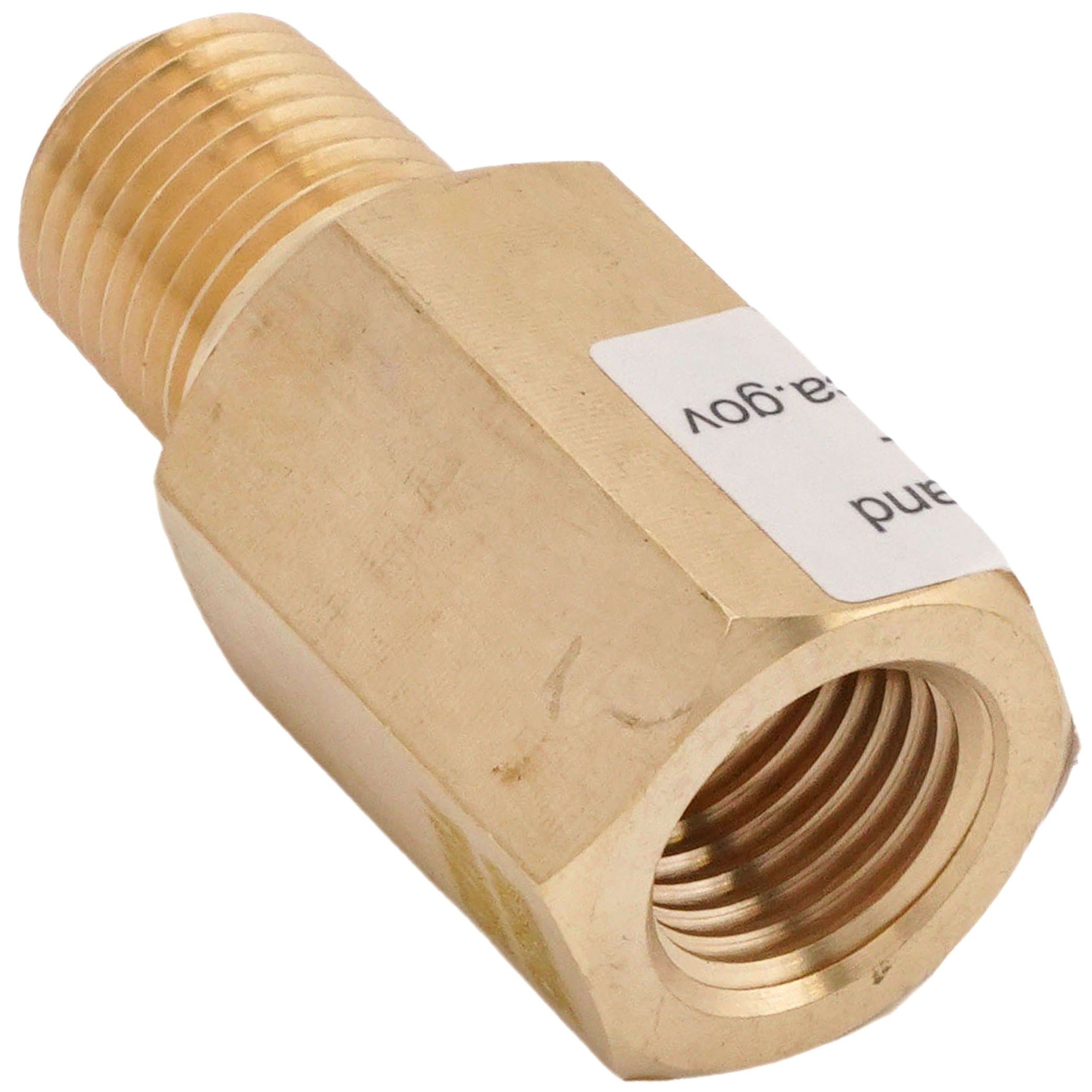

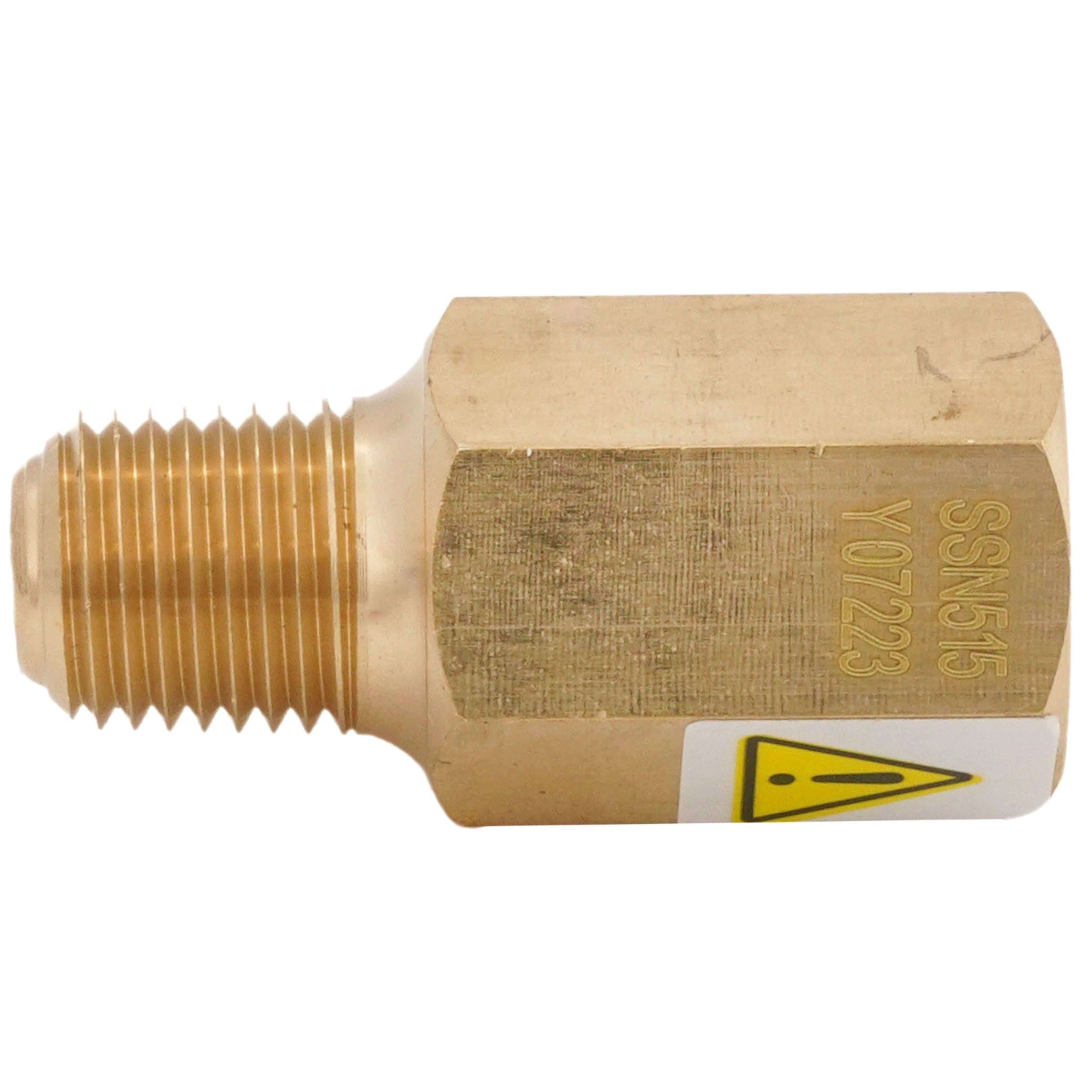

Winters Instruments SSN515 is a brass 1/4" SSN water snubber designed to lessen damaging pressure pulsation on gauges, transmitters, transducers, manometers, and pressure switches. It incorporates a sintered, porous 316 stainless steel snubbing element with a large surface area and a 300-series stainless steel retainer. Rated to a maximum operating pressure of 10,000 psi with a 30,000 psi burst rating, it operates from -65°F to 650°F and is offered for heavy oil, water, and air viscosity classifications.

• Sintered, porous 316 stainless steel snubbing element with large surface area for long-term pulsation damping
• Brass housing with 1/4" threaded connection; retainer constructed of 300 series stainless steel
• Rated max operating pressure 10,000 psi; burst pressure 30,000 psi; operating temperature -65°F to 650°F

Product Highlights

1/4" threaded brass snubber with 316 SS element; 10,000 psi max operating pressure; CRN registered; not for potable water use.

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: SSN515
