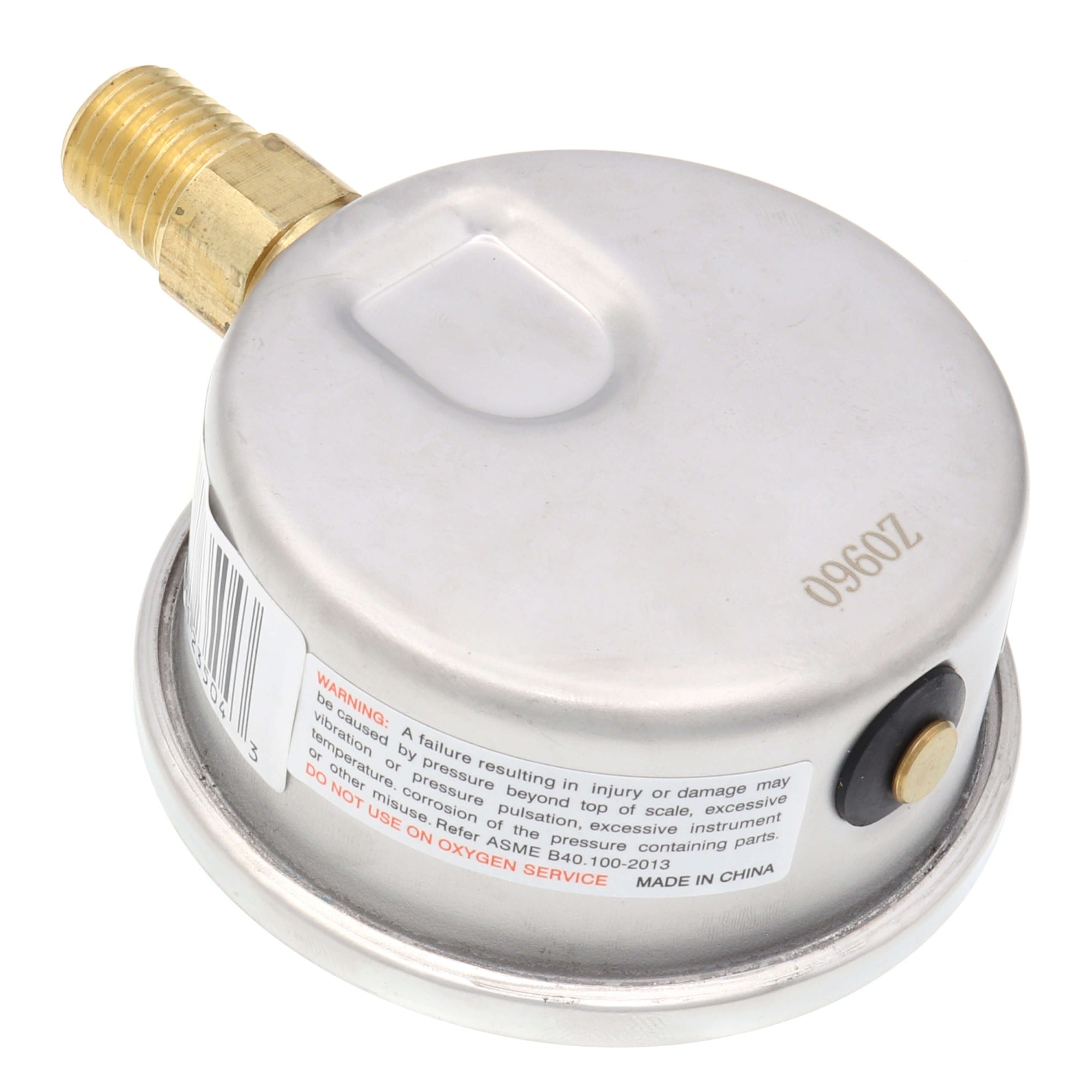

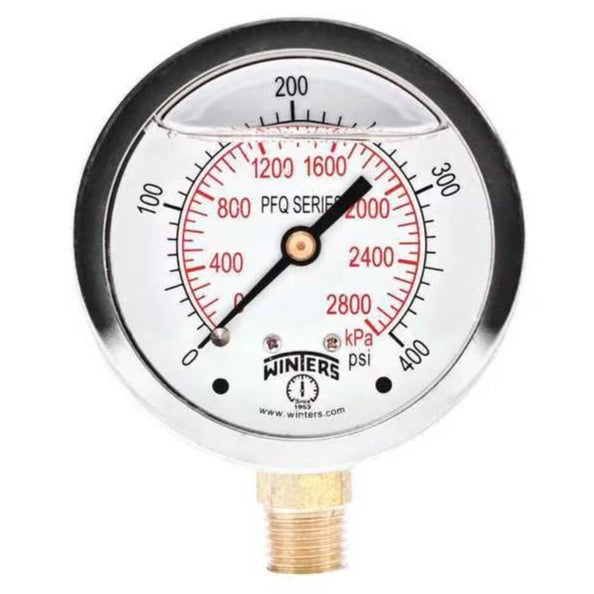

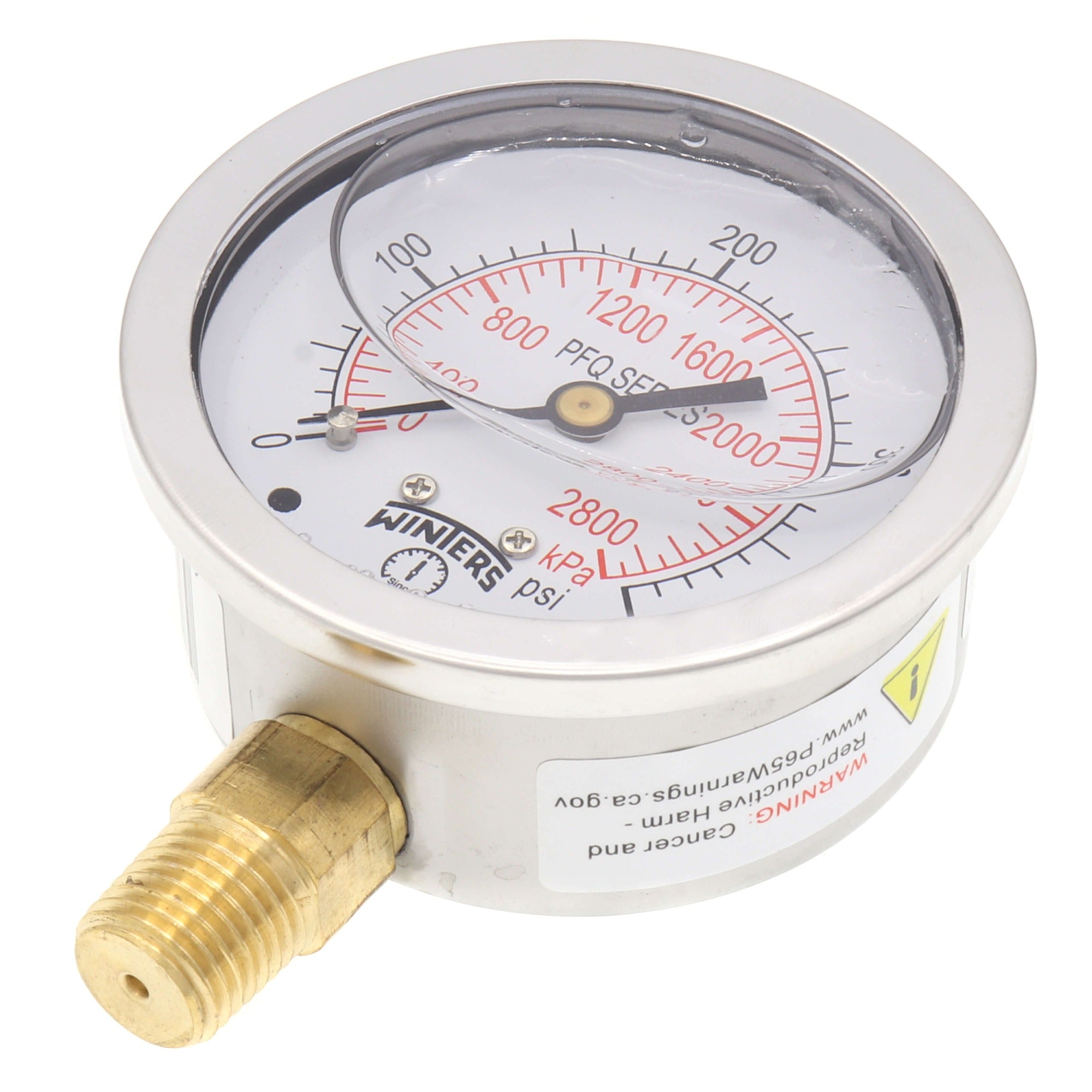

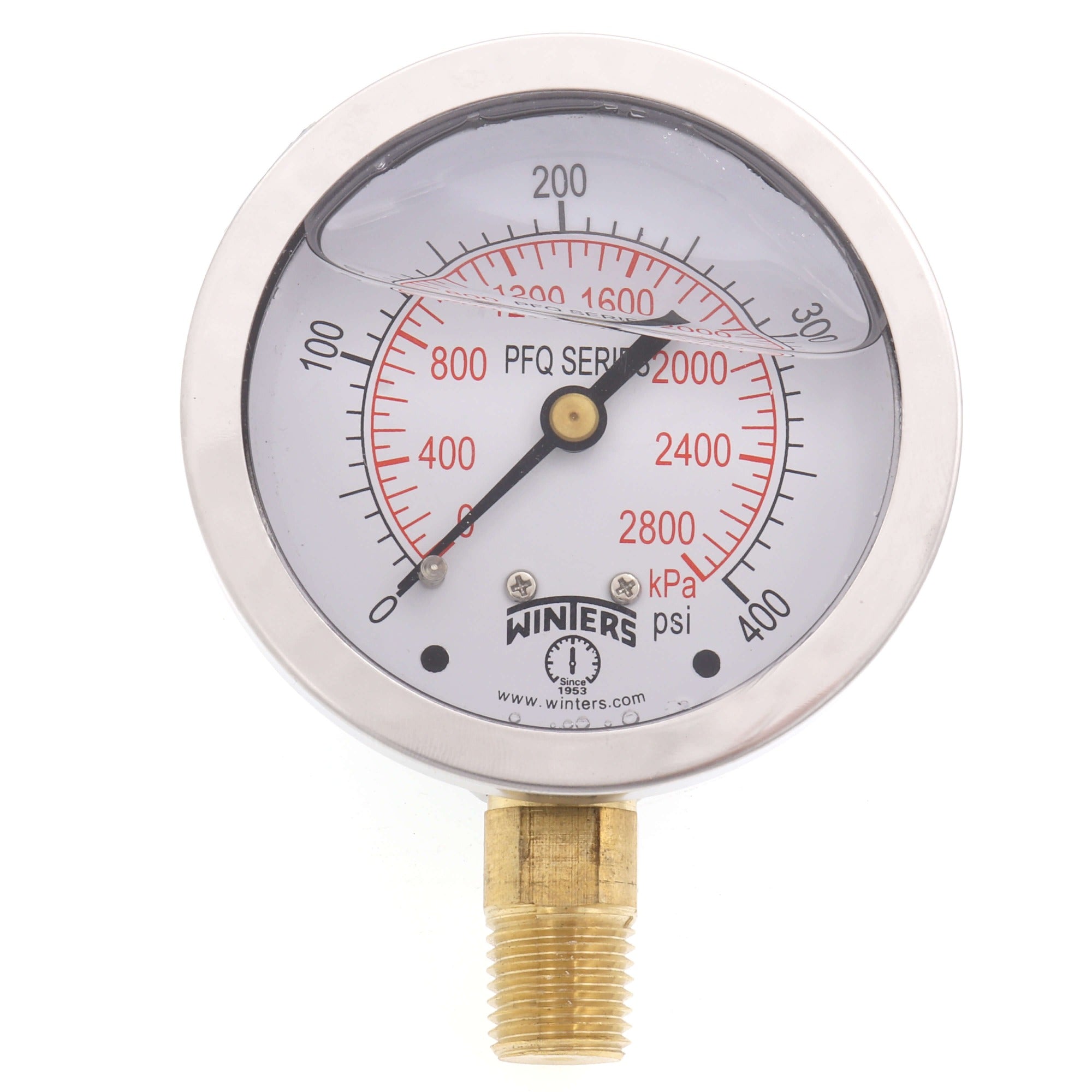

Winters Instruments PFQ817 2-1/2 inches Stainless Steel Liquid Filled Gauge (2.5 inch)

Product Description

Winters Instruments PFQ817 is a 2-1/2 inch stainless steel liquid-filled pressure gauge with a brass Bourdon tube and a 1/4 inch bottom NPT connection, designed to measure pressure up to 400 psi. The gauge is glycerin filled for pulsation resistance, uses a restricted orifice and crimp-on bezel, and has an accuracy of ±1.5% full scale for industrial applications such as pumps, compressors and hydraulic equipment.

• 2-1/2 inch dial, range 0–400 psi, accuracy ±1.5% full scale
• Stainless steel liquid-filled case with glycerin fill, restricted orifice and crimp-on bezel
• Brass internals including Bourdon tube, 1/4 inch bottom NPT connection; CRN registered

Product Highlights

Liquid-filled, pulsation-resistant stainless steel pressure gauge for pumps, compressors, hydraulic presses and pneumatic equipment; 1/4 inch bottom NPT, 0–400 psi, ±1.5% accuracy.

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: PFQ817
• Country of Origin: China
