WINDY CITY WIRE 043005AL-S Low-Voltage Wire and Cable

Product Description

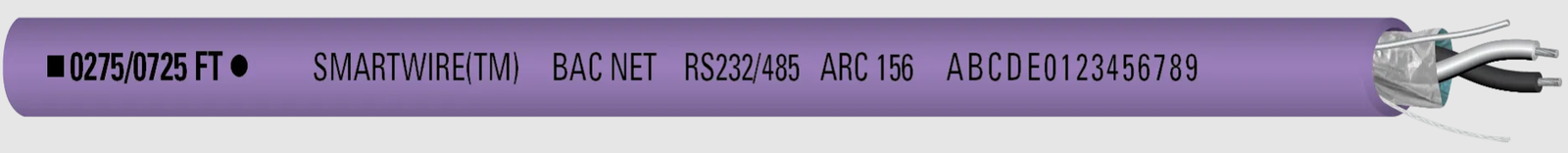

The WINDY CITY WIRE 043005AL-S is a low-voltage wire and cable suitable for various applications. This wire has a conductor gauge of twenty-two AWG and features one pair of tinned copper conductors. The O/A foil shielding provides reliable signal integrity. The cable is marked with SMARTWIRE TM BACnet RS232/485 for easy identification and is designed for use with the RackPack transportation system.

• 22 AWG wire with 1 pair tinned copper conductor
• Purple jacket and O/A foil shielding
• RoHS compliant and plenum rated

Product Highlights

This cable is ideal for low-voltage installations, ensuring safety and performance.

Product Information

Standard Information

• Brand: WINDY CITY WIRE
• MPN: 043005AL-S

Technical Specifications

• Conductor Gauge: 22 AWG
• Number of Conductors: 1 Pair
• Conductor Material: Tinned Copper
• Shield Type: O/A Foil
• Jacket Color: Purple
• Weight: 18 Lbs/Mft
• RoHS Compliant: Yes
• Insulation Material: Foamed FEP .020
• Drain Wire Gauge: 24 AWG
• Drain Wire Material: Stranded Tinned Copper
• Jacket Material: Low-Smoke PVC .018
• Capacitance: 12.5 pF/ft. Nom.
• Impedance: 100 Ohms Nom.
• Temperature Rating: 0 C to 75 C / 300 Volt
• Flame Rating: Approved For Plenum Use Without Conduit Per NFPA 262 Flame Test
• Plenum Rating: Plenum
• Stranding: Stranded
• Color Code: Black/White
• Certifications: UL Listed C(UL)US CMP, RoHS Compliant, Made in the USA
