WINCO 64864-015 69kW PTO Generator

Product Description

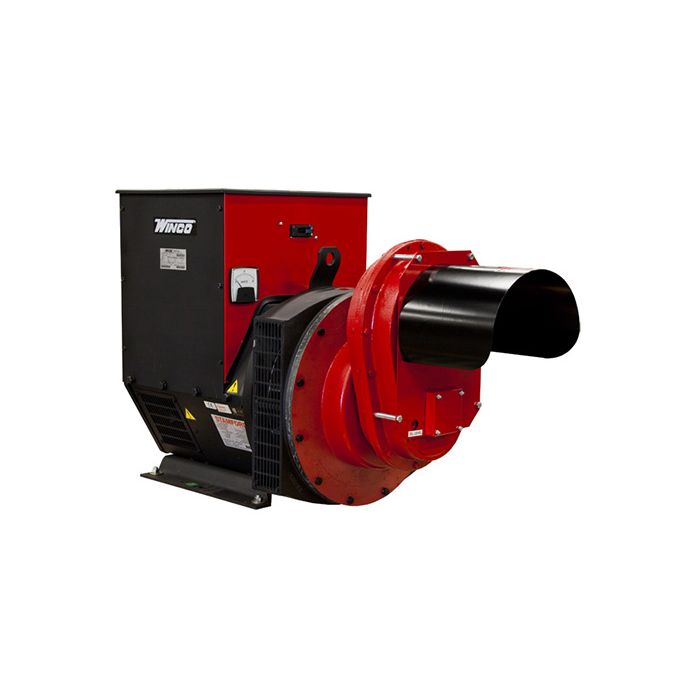

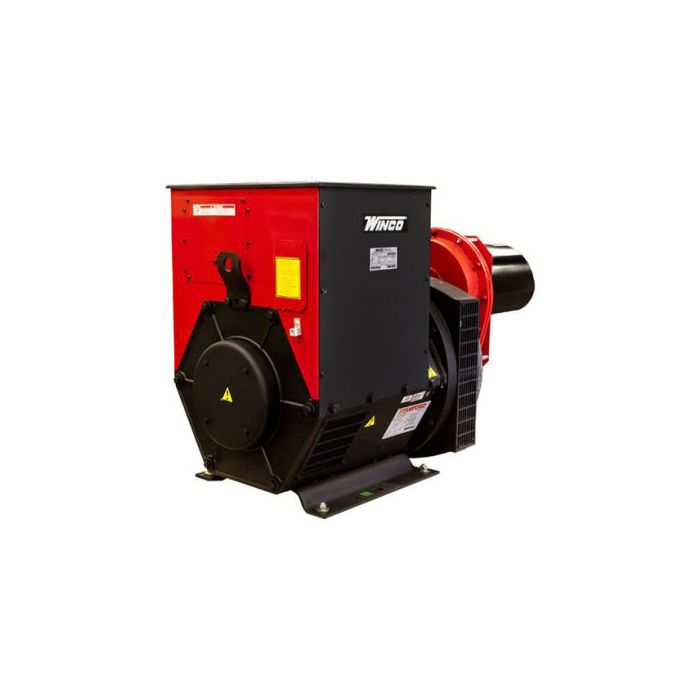

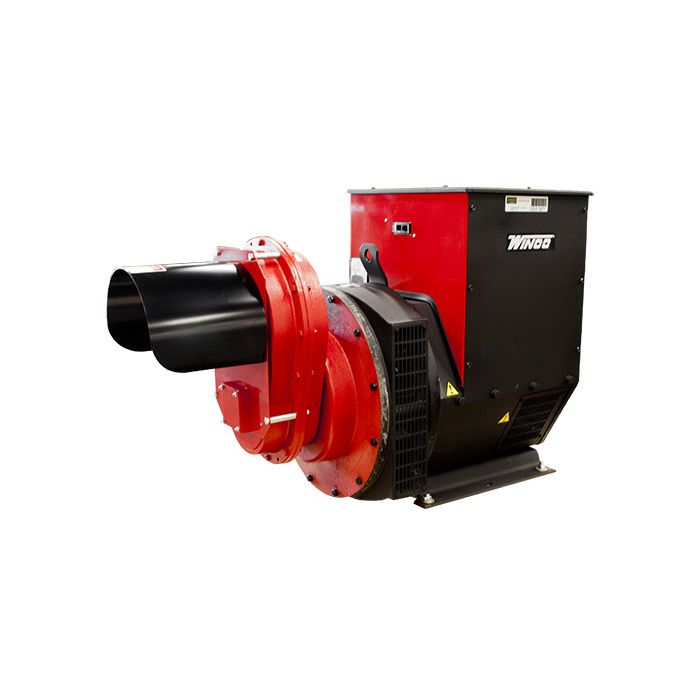

The WINCO 64864-015 is a powerful 69kW PTO generator, engineered for tractor compatibility. It generates single-phase power at 120/240V and operates at 540 RPM. Equipped with a brushless alternator and copper windings, this generator ensures durability and efficiency. The robust cast-iron gearcase with helical gears offers reliable performance. Integrated Square D circuit breakers protect the unit while a voltmeter allows for easy output monitoring. Each unit undergoes load testing before shipping.

• Operates at 540 RPM, suitable for most tractors.
• Includes Square D circuit breakers for safety.
• Comes with a 4-Wire Anderson full power plug.

Product Highlights

This generator is ideal for commercial, industrial, and professional use, making it a versatile choice for various applications.

Product Information

Standard Information

• Brand: WINCO
• Model Number: 64864-015

Technical Specifications

• Generator Grade: Commercial, Industrial, Professional, Semi-Professional
• Generator Style: PTO Generator
• Fuel Type: PTO
• Weight: 972 lbs.
• Dimensions: 46.7 inches L x 17.5 inches W x 26.8 inches H
• Continuous Rated Watts: 56,000
• Surge Start Watts: 69,000
• Voltage: 120/240
• PTO Input RPM Speed: 540
• Tractor HP Required: 138
• Frequency: 60 Hz
• Poles: 4
• Circuit Breakers: 300 Amp
• Control Panel Display: Voltmeter
