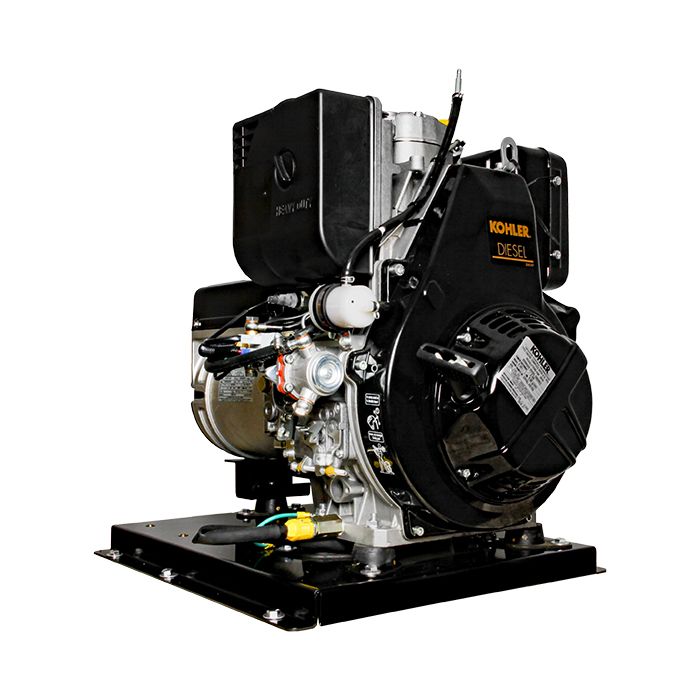

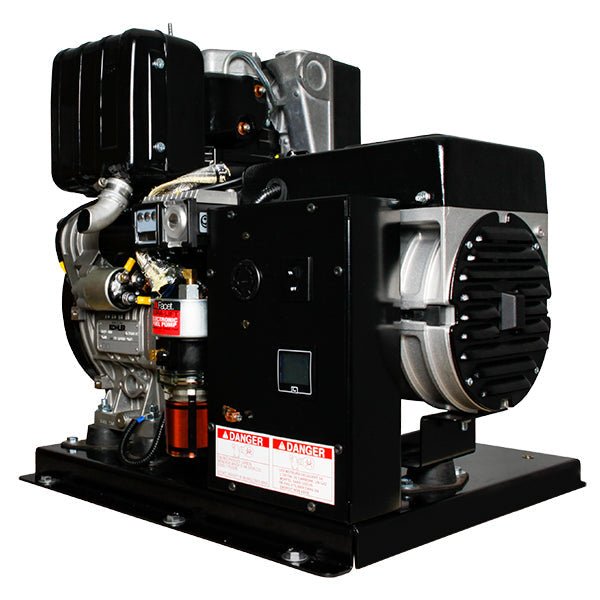

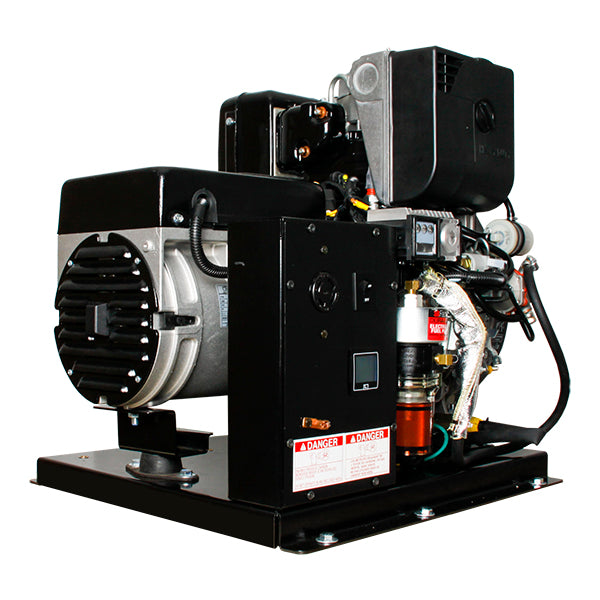

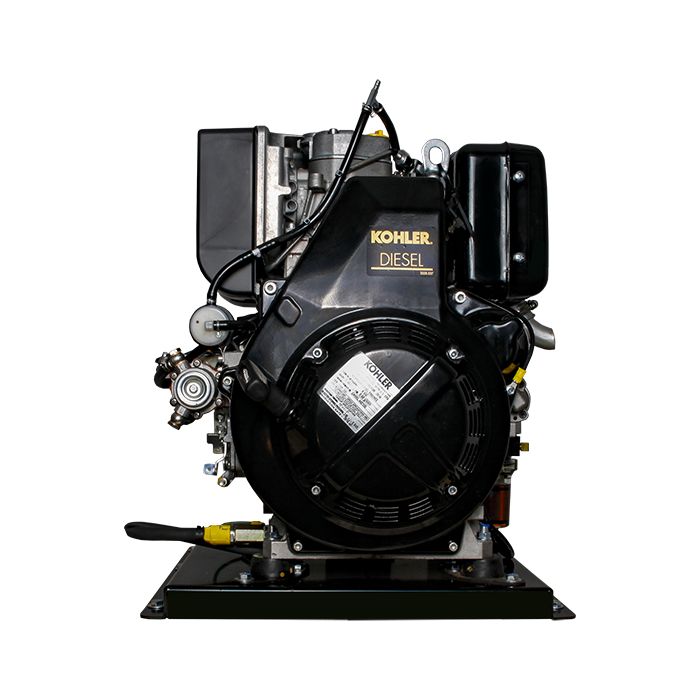

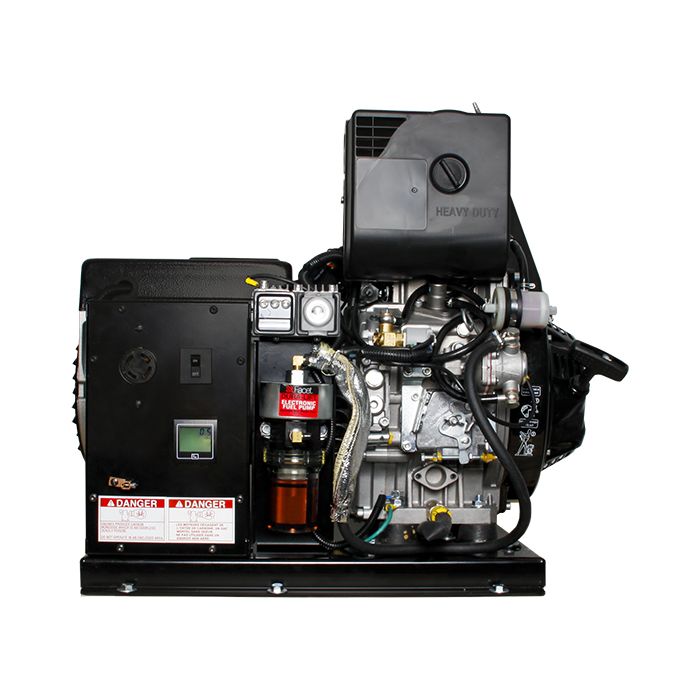

WINCO 19006-000 Vehicle Mounted Diesel Generator

Product Description

The WINCO EC6010KE-03/B 19006-000 is a vehicle mounted diesel generator. This generator is powered by a Kohler KD440 engine. It has a YourGen meter for monitoring performance and features a movable panel along with a fuel pump that can be installed on either side. This generator includes premium circuit breakers and a low oil protection system, which automatically shuts down the engine under low oil pressure. Each unit is load tested before it leaves the facility.

• Powered by a Kohler KD440 diesel engine
• Features a YourGen meter for monitoring performance
• Includes a movable panel and fuel pump for flexible installation

Product Highlights

Product Information

Standard Information

• Manufacturer: WINCO
• MPN: 19006-000

Technical Specifications

• Generator Grade: Professional
• Generator Style: Vehicle Mounted
• Power Type: Conventional
• Phase AC: 1PH
• Frequency Hz: 60
• Cooling System: Air Cooled
• Starting Watts: 6010
• Running Watts: 5000
• Voltage Output: 120/240 Volt Single Phase
• Voltage VAC: 120/240
• Voltage VDC: 12
• Rated Amps: 26-50
• Fuel Type: Diesel
• Engine Brand: Kohler
• Engine Model: KD440
• Horsepower: 9.1 HP
• Displacement: 440cc
• Engine RPM: 3600 RPM
• Starting System: Electric & Recoil
• Voltage Regulation: AVR +/- 1%
• Frequency Regulation: +/- 3%
• Alternator: Brushless
• Circuit Breakers: 30 Amp
• Receptacles: (1) NEMA L14-30 30A
• Operational Volume: 87.6 dB @ 23ft
• Dimensions: 32 x 24.25 x 24.4 in
• Weight: 270 lbs
• Unit Warranty: 3 Years Commercial
• Emissions: EPA Prime
• Assembled In: USA
• Control Panel Display: Load Monitor, Voltmeter, Frequency Meter, Hour Meter, Engine Speed, Voltage Regulator Control
