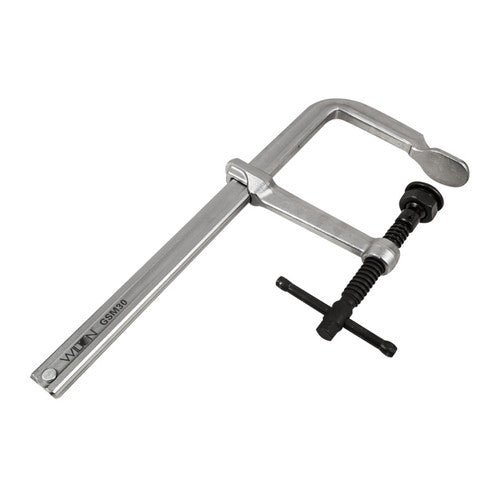

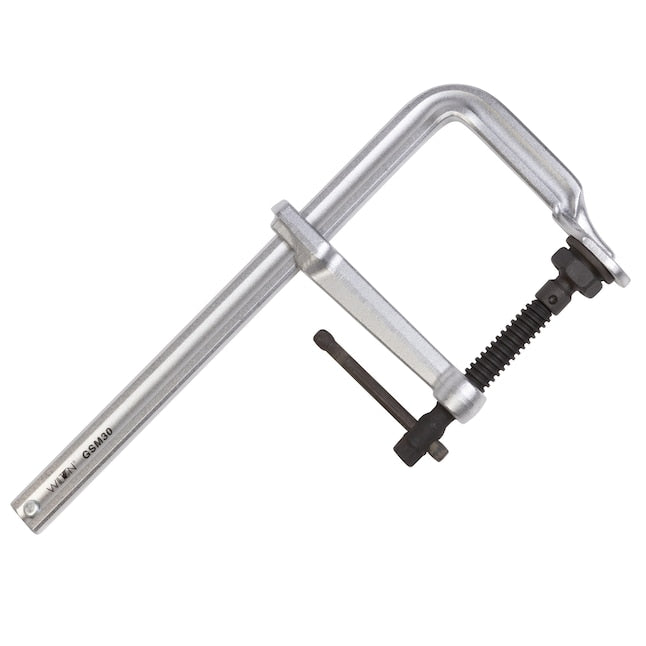

Wilton 86650 gsm30 Heavy Duty F-Clamp 12 inches

Product Description

The Wilton 86650 Classic Series F-Clamps are among the first of their kind. This heavy-duty F-Clamp features a clamping force of 2660 lbs, a heavy-duty replaceable pad, and replaceable parts. The black oxide spindle resists wear and tear while impeding rust. Ideal for fabrication, welding, and repetitive clamping.

• Heavy-Duty
• Clamping force of 2660 lbs
• Heavy-duty replaceable pad

Product Highlights

This 12-inch F-clamp offers a 5-1/2" throat depth and a sturdy tommy bar engineered for durability and comfort.

Product Information

Standard Information

• Brand: WILTON
• Manufacturer Part Number: 86650

Technical Specifications

• Type: F-Clamp
• Brand: Wilton
• Size: 12 in
• Throat Depth: 5-1/2"
• Manufacturers Part Number: 86650
• MPN: 86650
• Weight: 7.5
• Height: 1.6
• Length: 17.2
• Width: 8.3
• Clamping Capacity (in): 12
• Clamping Force (lb.): 2,660
• Model Number: GSM30
• Nominal Opening Capacity (in): 12
• Clamping Force (lbs): 2660
• Nominal Rail Size (in): 1-3/16 x 19/32
• Spindle Diameter: 3/4
• Quick-Twist Pads: Yes
• Quick-Twist Plain Pad Stook Number: 2909102A
• Quick-Twist Serrated Pad Stock Number: 2909202A
• Quick-Twist V-Groove Pad Stock Number: 2909302A
• Spindle and T-Handle with Spring Pin Stock Number: 1701602B
• Joint with Spring Pin Stock Number: 1701502A
• Nut Stock Number: 1701702A
• Maximum Jaw Opening: 12-in
• Clamp Max Capacity: 12"
• Clamping Force: 2,660 lbs
• Nominal Opening Capacity: 12"
• Model: 86650
• UPC: 731325375404
