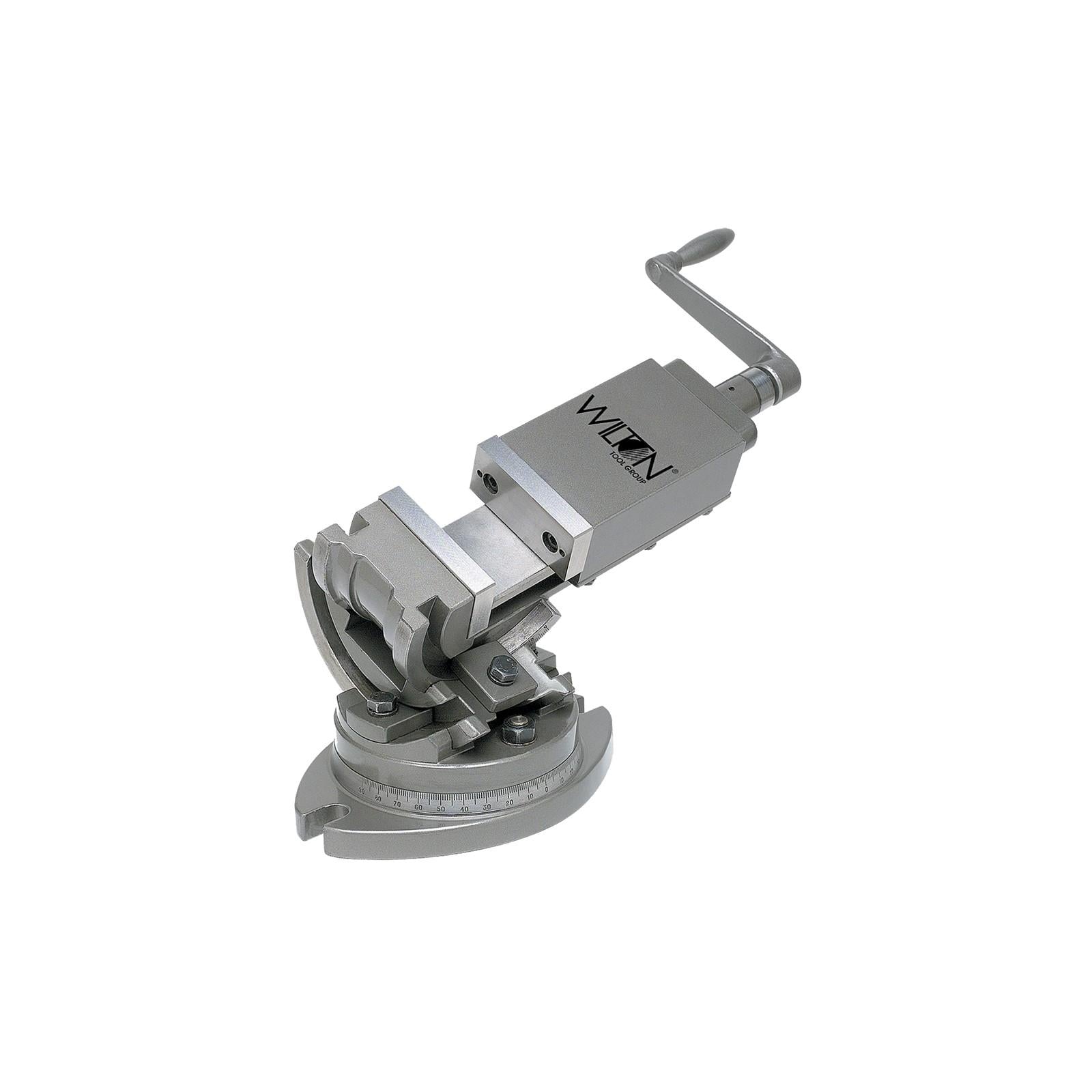

Wilton 11701 Tilting Machine Vise 3 in Jaw Width

Product Description

The WILTON 11701 is a tilting machine vise designed for use on drill presses, milling machines, and similar machine tool setups in shop and production environments. It features a 3 inch jaw width, a 3 inch jaw opening capacity, and a 1-5/16 inch jaw depth, making it a compact and capable workholding solution for precision machining tasks. At 26 pounds, the 11701 offers the solid mass needed to resist movement under tool pressure. Machinists and tool room technicians use this vise where secure, repeatable part positioning is critical to accurate work.

The WILTON 11701 is suited for light to medium machine tool applications including drilling, milling, and grinding operations. Its tilting base design allows the operator to angle workpieces for compound cuts or angled hole placement without the need for additional fixturing. This vise is a standard choice in job shops, maintenance facilities, and vocational training environments where general-purpose workholding is required.

Key Features

• 3 inch jaw width provides stable clamping across a range of workpiece sizes
• 3 inch jaw opening accommodates a variety of part thicknesses
• 1-5/16 inch jaw depth secures workpieces with consistent vertical contact
• Tilting base allows angled positioning for compound machining operations
• 26 pound construction delivers mass and rigidity to resist tool forces during operation

Compatibility

Designed as an OEM-style workholding vise for use on standard drill press and milling machine tables with compatible T-slot mounting configurations.

Installation Notes

Installation is typically performed by a machinist or tool room technician. Before mounting, ensure the machine table is powered down and at rest. Secure the vise to the machine table using appropriate T-slot bolts and clamps per the machine manufacturer's guidelines. Verify jaw alignment with a dial indicator before committing to production work.

Technical Specifications

• Jaw Width: 3 inches
• Jaw Opening: 3 inches
• Jaw Depth: 1-5/16 inches
• Weight: 26 pounds
• UPC: 019907117018

Standard Information

• Brand: WILTON
• Manufacturer Part Number: 11701
