Product Description

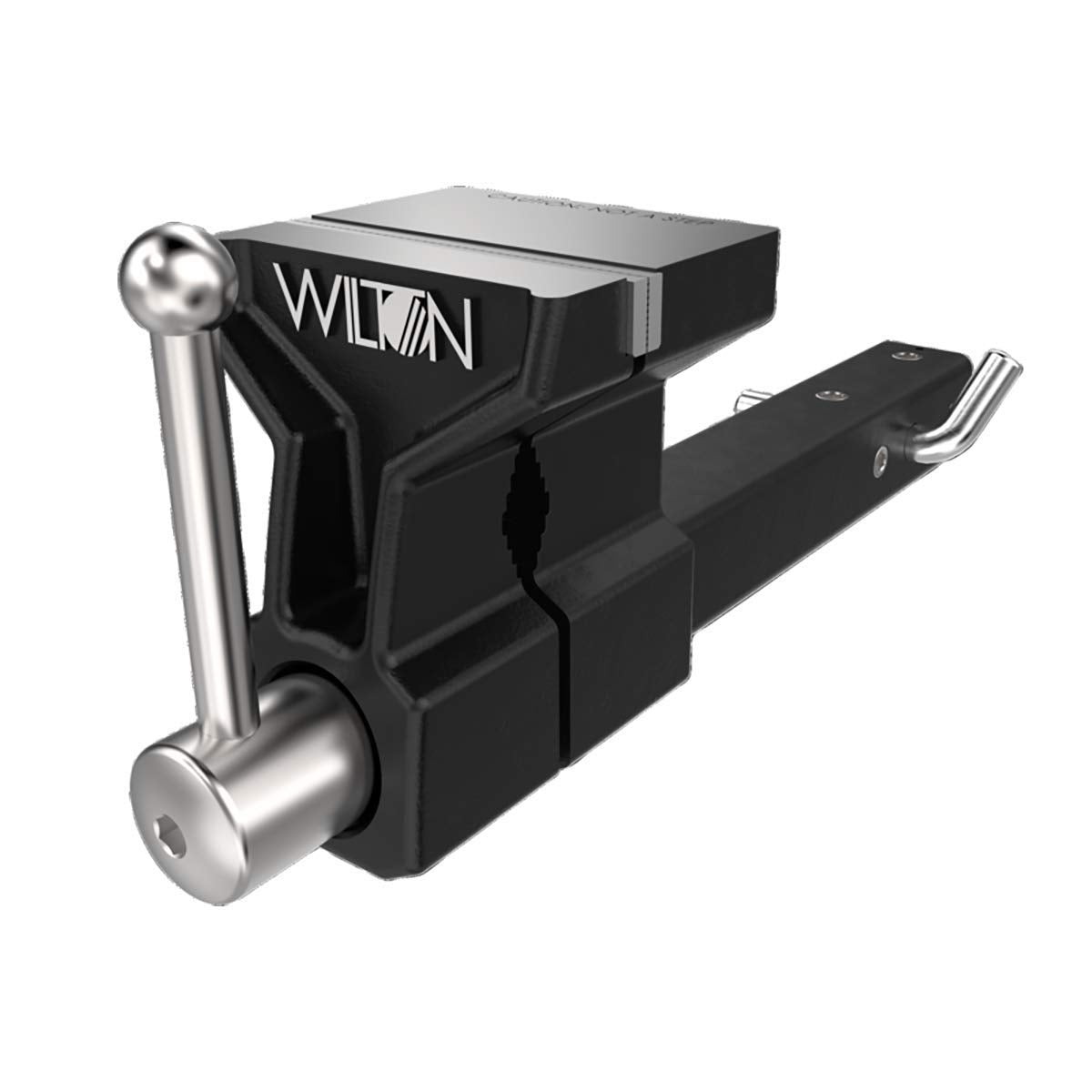

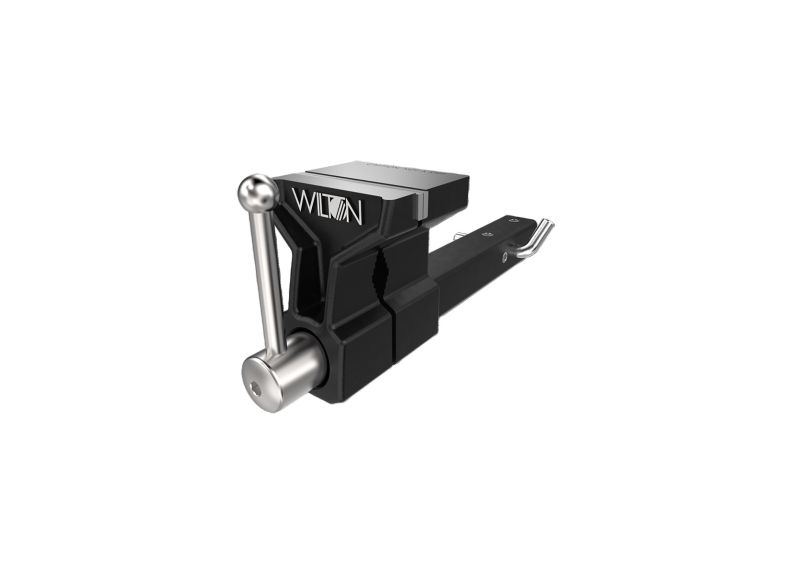

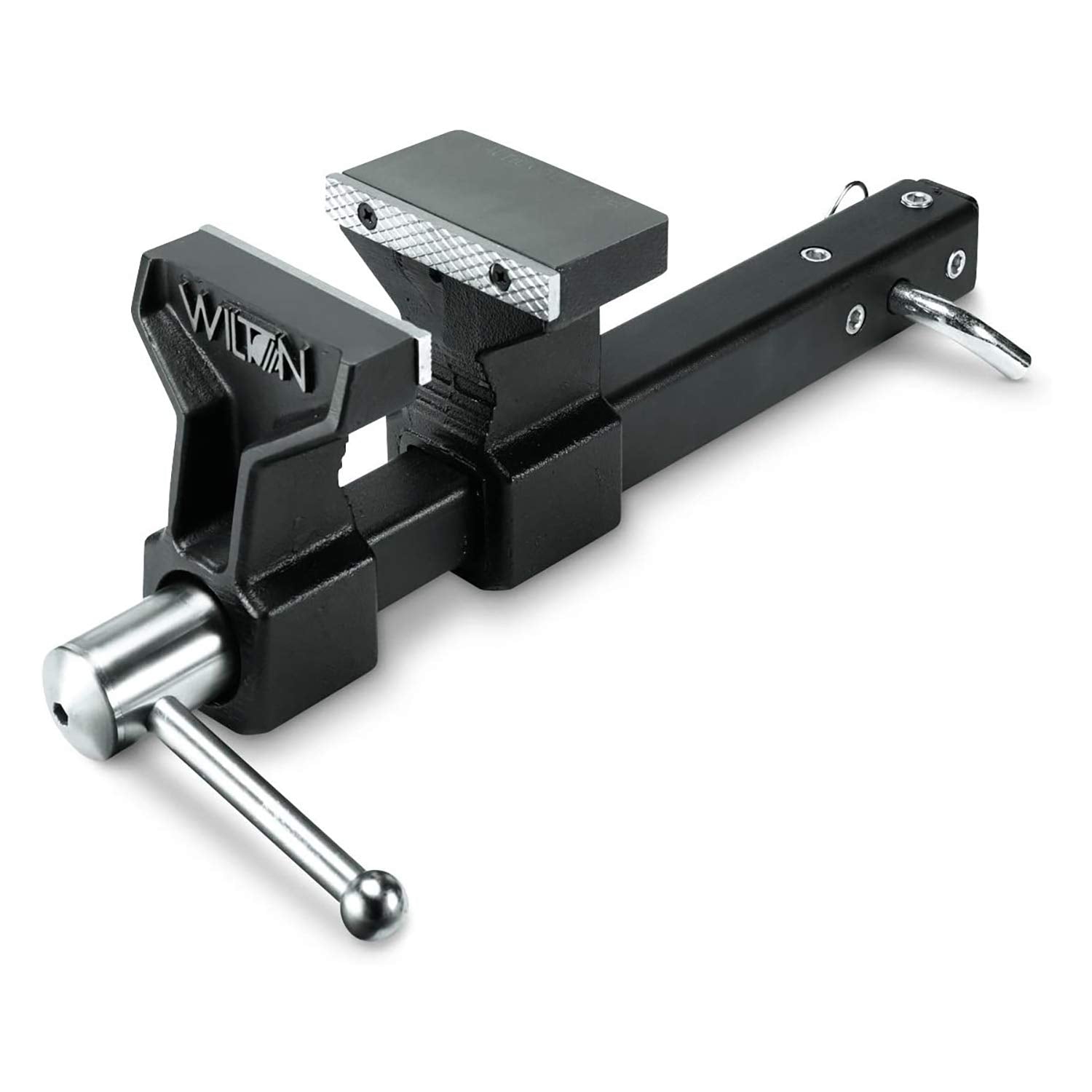

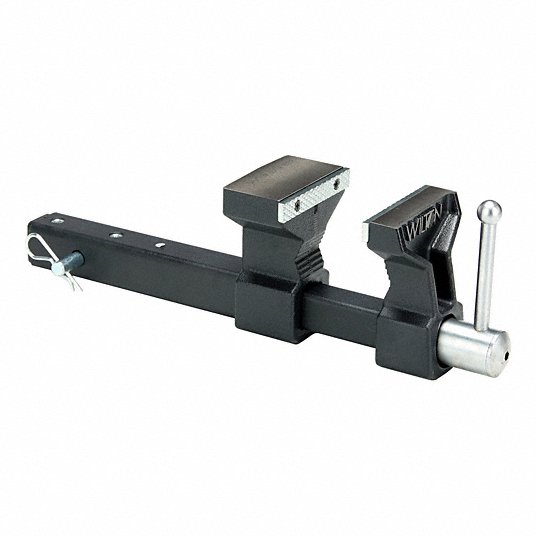

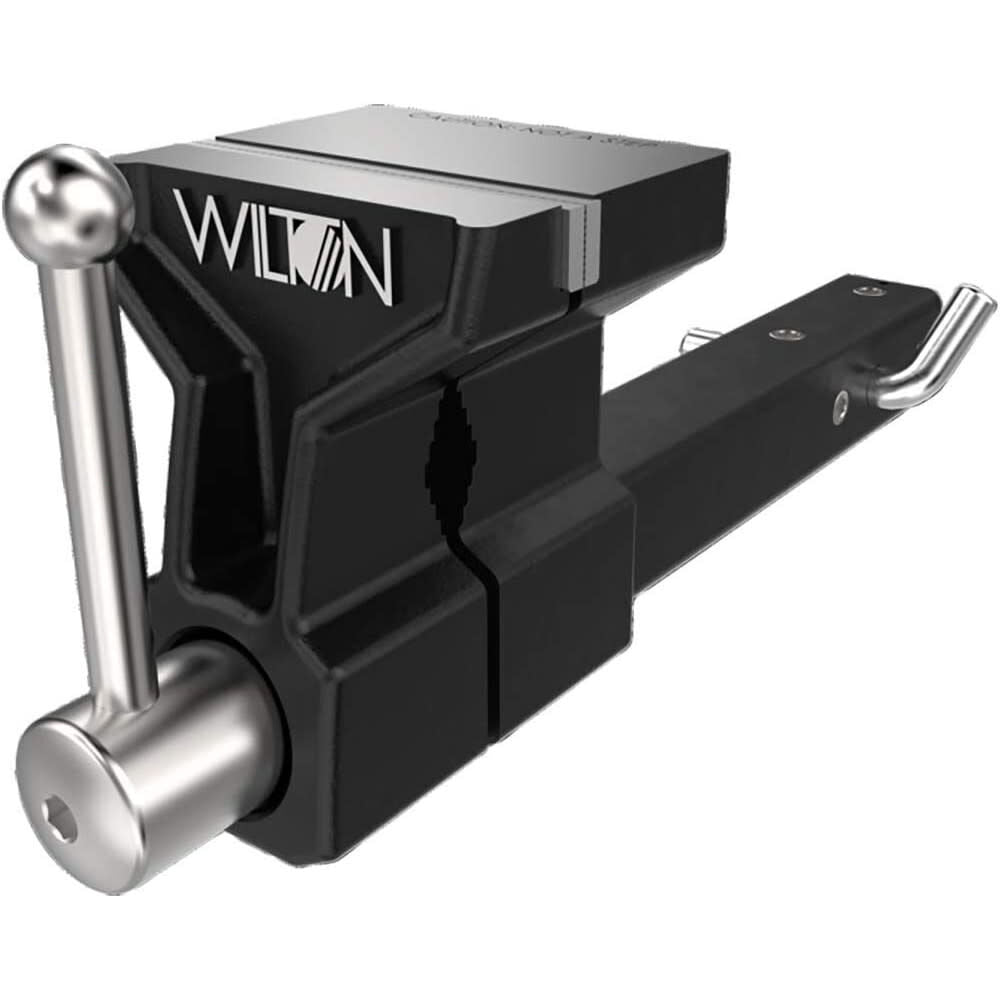

The Wilton 10025 Atv All Terrain Vise 5In is designed for jobs that demand function, strength and mobility. Secure it in your hitch or mount it on your bench. It fits a standard 2" hitch and includes a hitch pin for security. The patented 360° locking handle can be secured for driving, or repositioned while working.
- Can be mounted on a bench or trailer (mounting bracket sold spearately)
- Fits a standard 2" hitch, and includes a hitch pin for security
- Weighs just under 26 pounds, and with a carrying handle, the ATV is designed for easy transport
Product Highlights
This all-terrain vise is lightweight and portable with a 360 degree locking handle. It can be secured in a hitch or mounted to a bench.
Product Information
Standard Information
-
Brand: WILTON
-
Manufacturer Part Number: 10025
-
Country of Origin: CN
Technical Specifications
-
Category 1: HAND TOOLS
-
Category 2: CLAMPS & VISES
-
MPN: 10025
-
Brand: Wilton
-
Manufacturer: Wilton
-
Product Group: Tools
-
Size: 5"
-
Number of Items: 1.0
-
Base Type: Stationary
-
Finish: Painted
-
Jaw Material: Iron; Steel
-
Jaw Opening [Nom]: 6 in
-
Jaw Width: 5 in
-
Locking Type: Hitch Pin
-
Material: Steel and Ductile Iron
-
Pipe Jaw Cap. [Max]: 3 in
-
Pipe Jaw Cap. [Min]: 7/8 in
-
Throat Depth [Nom]: 4 1/4 in
-
Item [Specifications]: All Terrain Vise
-
Jaw Face [Specifications]: V-Grooved
-
Base Type [Specifications]: Portable
-
Vise Type: Utility
-
Reversible: No
-
Duty Rating: Heavy Duty
-
Item - Vises [Specifications]: Truck Hitch Vise
-
Max. Opening [Specifications]: 6"
-
Spindle Type: Enclosed
-
Throat Depth [Specifications]: 5"
-
Base Material: Iron
-
Body Material: Ductile Iron; Steel
-
Jaw Face Type: V-Grooved
-
Overall Width: 8 1/2 in
-
Pipe Capacity [Specifications]: 3/4" to 3"
-
Jaw Face Width: 5 in
-
Base Mount Type: Vehicle Hitch
-
High Visibility: No
-
Jaw Width Range [Specifications]: 3 in to 5 in
-
Jaw Pad Material: 45-56 HRC Steel
-
Base Swivel Angle: 360 Degrees
-
Includes Pipe Jaw: Yes
-
Pipe Jaw Included [Specifications]: Yes
-
Max. Opening Range [Specifications]: 5-1/8 in to 7 in
-
Throat Depth Range [Specifications]: 3 in to 5 in
-
Pipe Diameter Range [Specifications]: 7/8 in - 3 in
-
Max. Opening - Vises [Specifications]: 6 in
-
Swivel Angle - Vises [Specifications]: 360 Degrees
-
Body Tensile Strength: 60,000 psi
-
Jaw Opening - Maximum [Specifications]: 6 in
-
Pipe Capacity - Vises [Specifications]: 3/4 in to 3 in
-
Includes Rotating Head: No
-
Pipe Diameter - Maximum: 3 in
-
Pipe Diameter - Minimum: 7/8 in
-
Product Grouping - Vises [Specifications]: Specialty Vises
-
Body Casting Tensile Strength [Specifications]: 60,000 psi
-
Stock Number: WL9-10025
-
Jaw Depth (In.): 1-5/16
-
Pipe Jaw Capacity (In.): 7/8 -- 3
-
Opening Capacity Max (In.): 6
-
Model: 10025
-
Sub-brand: ATV
-
UNSPSC: 27112102
-
Brand Name: Wilton
-
Capacity: 5"
-
Clamping Strength (lbs): 2204
-
MFG Part # (OEM): 10025
-
Package Contents: All-Terrain Vise, Mounting Bracket
-
Product Condition: New
-
Restrictions: CA Prop 65
-
Throat Depth (in): 5
-
Overall Height: 8 in
-
Overall Length: 20 in
-
Length: 20.0000
-
Width: 8.5000
-
Height: 8.0000
-
Country of Origin: Taiwan
