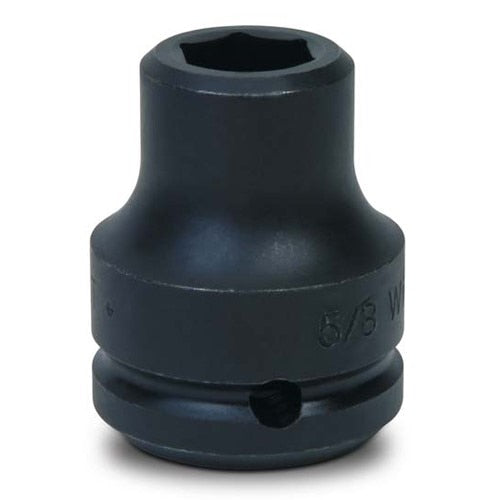

Williams JHW6-650 Shallow Impact Socket 3/4 in Drive 6 Pt Sae

Product Description

The WILLIAMS COMFORT PRODUCTS JHW6-650 is a 6-point shallow impact socket designed for use with 3/4 inch drive pneumatic and electric impact wrenches. Built to SAE specification, it features a 2 3/8 inch overall length and a 1 9/16 inch opening size. The socket uses lobular internal geometry — a design that transfers torque to the flat faces of a fastener rather than its corners, reducing fastener deformation under high-torque impact loads. The steel is specially heat treated to withstand the repeated shock loads generated by impact tools, making it suitable for heavy-duty trade use in HVAC, mechanical, and industrial settings.

This socket is intended for professional trade use wherever a shallow-profile 6-point SAE socket on a 3/4 inch drive impact tool is required. The shallow design is well suited to applications with limited axial clearance around the fastener head, such as equipment panels, flanged assemblies, and structural fasteners encountered in HVAC equipment installation or large mechanical system service. It is sold individually and is compatible with both pneumatic and corded or cordless electric impact wrenches with a 3/4 inch square drive.

Key Features

• Lobular opening geometry engages fastener flats to maximize torque transfer and reduce corner rounding
• 6-point design for maximum engagement on hex fasteners
• Shallow profile suitable for low-clearance fastener access
• Heat-treated steel construction rated for impact tool use
• Compatible with pneumatic and electric impact wrenches
• SAE sizing — 1 9/16 inch opening on a 3/4 inch drive

Compatibility

Designed for use with 3/4 inch square drive pneumatic and electric impact wrenches; fits standard 3/4 inch drive impact tool anvils.

Installation Notes

Always verify that the socket drive size matches the impact wrench anvil before use. Inspect the socket for cracks or deformation before each use — do not use a damaged impact socket. Ensure the socket is fully seated and the detent pin or retaining ring is engaged before applying torque. Never use impact sockets with hand-drive ratchets not rated for impact loads.

Technical Specifications

• Drive Size: 3/4 inch
• Opening Size: 1 9/16 inch
• Overall Length: 2 3/8 inches
• Point Count: 6 point
• Standard: SAE
• Socket Type: Shallow Impact
• Weight: 1.45 pounds
• Dimensions (L x W x H): 3 inches x 2.5 inches x 2.5 inches
• Sold As: Each
• UPC: 662459255327

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHW6-650
